Pneumatic Rotary Actuator

Pneumatic Rotary Cylinder Actuator is a pneumatic actuating element that uses the compressed air to drive the output shaft to do the reciprocating movement in a certain range of angles. Used for turn-pull, overturn, sort, clamp of object, opening and closing of valves, robot arm movements and others. Pneumatic Rotary Cylinder is divided into pinion and-rack type, piston type and vane type.
Vane type Rotary Air Cylinder has the advantages of small volume, light weight, high manufacture precision, difficult sealing and leakage is large, and the dynamic seal contact area is large, much friction loss of the seal, low efficiency, less than 80%. Therefore, the application is limited, generally only in place where the installation is restricted, such as rotation of jig, opening and closing of valves and table indexing and so on.
Piston type Pneumatic Rotary Actuator makes the reciprocating movement of the piston into the swing movement of the output shaft through the mechanism.
Pinion and-rack type Pneumatic Rotary Actuator is rotated by the rack connected to the piston, the piston is only for reciprocating linear motion, the friction loss is small, the gear transmission efficiency is high, the Pneumatic Rotary Cylinder efficiency can reach about 95%.

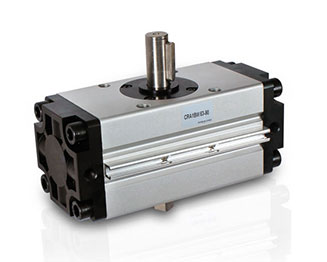

Pneumatic Rotary Actuator CRA1

CRA1 Rotary Cylinder offers very high torque-to-size and accurate positioning. Bore sizes of CRA1 Rotary Actuator are 30, 50, 63, 80 and 100mm. Units may be ordered auto-switch capable and with cushions.

Bore: 30, 50, 63, 80, 100mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Lubrication: Non-lube
Ambient and fluid temperature: 0~60°C
Learn more

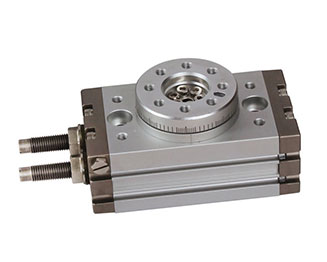

Pneumatic Rotary Actuator MK

MK Rotary Actuator have standard type (MK) and heavy-duty type (MK2), heavy-duty type (MK2) can bear greater rotational inertia than the standard type (MK) when the bores are same.

Bore: 12, 16, 20, 25, 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 50~200mm/s
Ambient and fluid temperature: -10~+70°C
Learn more

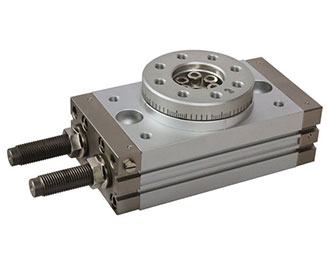

Pneumatic Rotary Actuator CRQ2

CRQ2 Rotary Actuator is a kind of pneumatic actuator which uses compressed air to drive the output shaft to make a reciprocating rotary motion within a certain angle range. CDRQ2 Rotary Actuator has the advantages of small volume, large force, space saving.

Bore: 10, 15, 20, 30, 40mm
Motion Pattern: Double-acting
Operating pressure: 0.15~0.7(bore:10, 15); 0.1~1.0(bore:20, 30, 40)
Adjustable Angle range: ±5°
Ambient and fluid temperature: 0~+60°C
Learn more

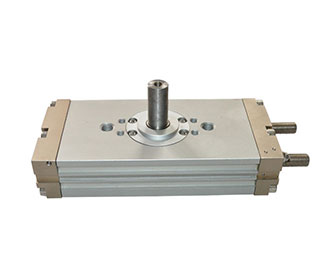

Pneumatic Rotary Actuator CRQB

CRQB Rotary Actuator is silvery white and matches the clean environment. The pipe can take a direction; adopt double racks, no backlash; the body can be used as a flange; the CDRQB Rotary Actuator body has a positioning hole, easy for centring.

Bore: 10, 15, 20, 30, 40mm
Motion Pattern: Double acting
Operating pressure: 0.15~0.7MPa
Swing Angle: 90°,180°
Ambient and fluid temperature: 0~60℃
Learn more

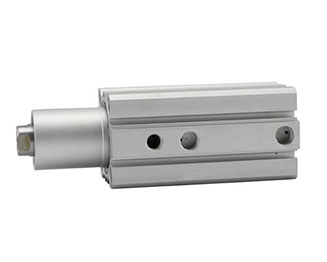

Rotary Air Actuator MSQ (Rotary Table)

MSQ Rotary Air Cylinder is a gear-rack type cylinder, divided into 7 optional bores: 10mm, 20mm, 30mm, 50mm, 70mm, 100mm and 200mm. Angle adjustment ranges is from 0° to 190°.

Bore: 10, 20, 30, 50, 70, 100, 200mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Angle adjustment range: 0~190°
Ambient and fluid temperature: 0~60℃ (No Freezing)
Learn more

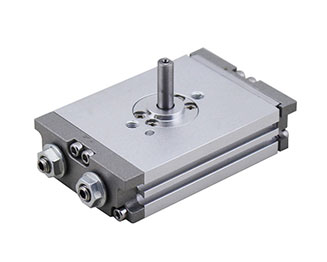

Rotary Air Actuator MSQB (Rotary Table)

MSQB Rotary Cylinder is a rack-and-pinion Rotary Air Cylinder, which is different from the general cylinder working directly through the reciprocating motion of the front-end piston. The maximum rotation angle of the Rotary Table Cylinder is between 0~190°.

Bore: 10, 20, 30, 50mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Angle adjustment range: 0~190°
Ambient and fluid temperature: 0~60℃ (No Freezing)
Learn more

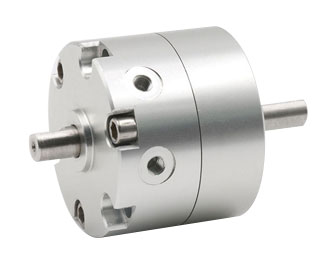

Pneumatic Rotary Actuator CRB2

CRB2 Cylinder is Rotary Air Cylinder, which have no clearance, swing smoothly; The swing angle of Rotary Actuator CRB2 is adjustable; Shape size of double blade is the same as single blade type and provides double torque.

Bore: 10, 15, 20, 30, 40mm
Working Medium: Air (No Lubrication)
Operating pressure: 0.15~1.0MPa
Ambient and fluid temperature: 5~60°C
Learn more

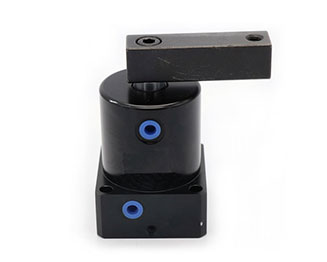

Swing Clamp Cylinder HSR

HSR Cylinder adopts an imported sealing ring and an integrated piston rod. The cylinder block is made of aluminium alloy, the surface is hard oxidized by anode, the inner wall is finely machined, and the finish is excellent.

Bore: 25, 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.7MPa
Rotation Angle: 90°(±2°)
Ambient and fluid temperature: 0~60°C
Learn more
