Pneumatic Rotary Actuator CRQB

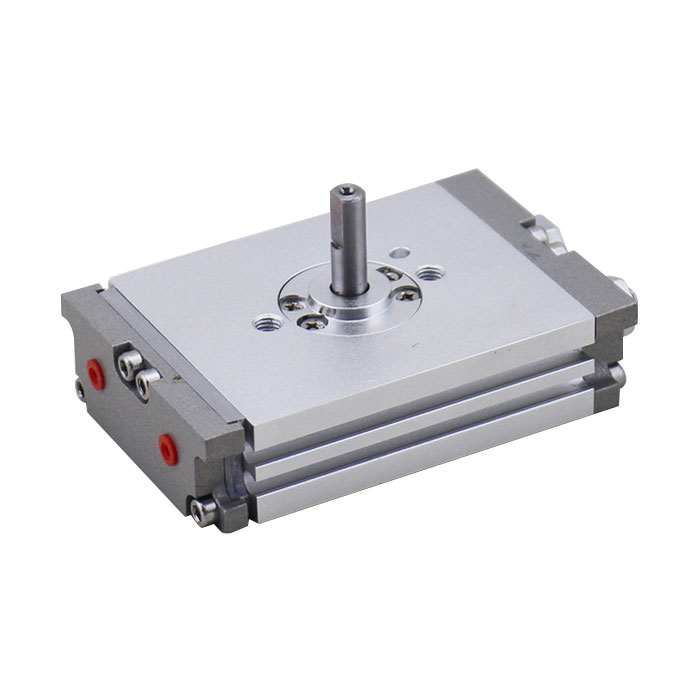

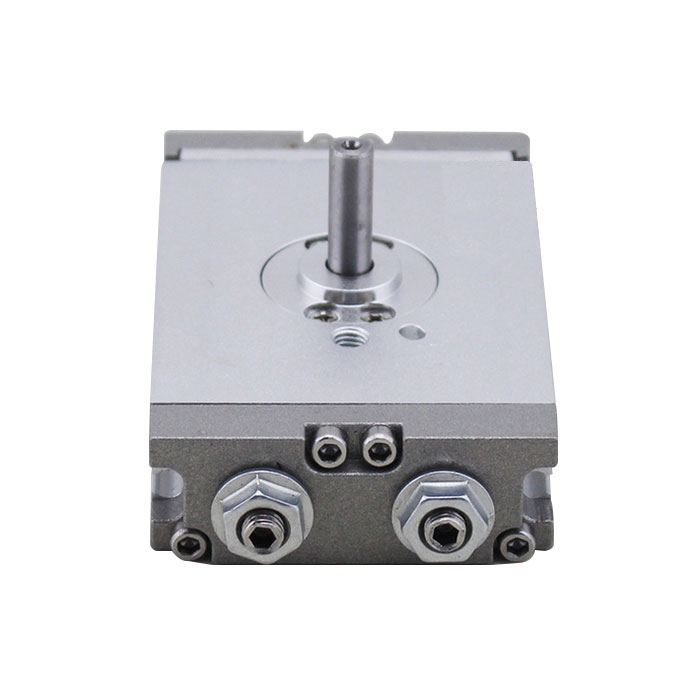

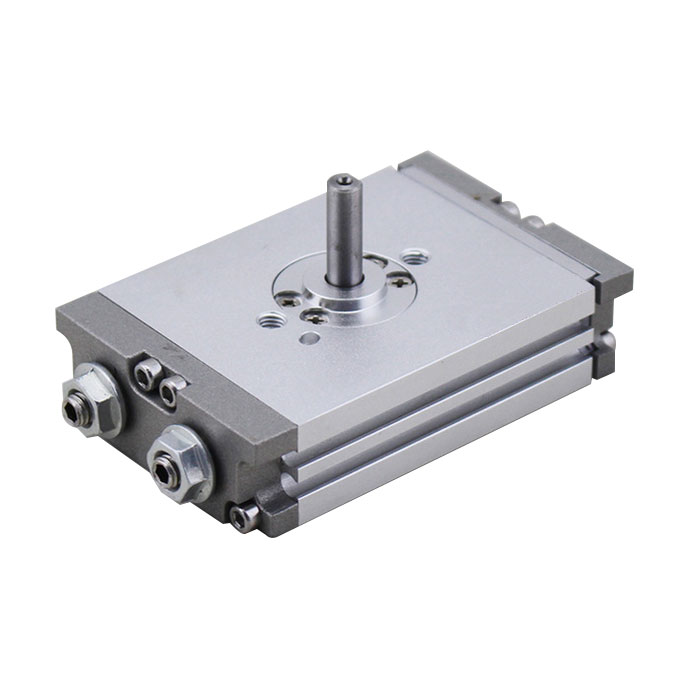

CRQB Rotary Actuator is silvery white and matches the clean environment. The pipe can take a direction; adopt double racks, no backlash; the body can be used as a flange; the CDRQB Rotary Actuator body has a positioning hole, easy for centring.

Bore: 10, 15, 20, 30, 40mm
Motion Pattern: Double acting
Operating pressure: 0.15~0.7MPa
Swing Angle: 90°,180°
Ambient and fluid temperature: 0~60℃

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for CRQB Rotary Actuator

Compared with the CRQ series, the main difference of the CRQB Rotary Actuator is that the Rotary Air Cylinder is silvery white and matches the clean environment. The pipe can take a direction; adopt double racks, no backlash; the body can be used as a flange; the CDRQB Rotary Actuator body has a positioning hole, easy for centring. Two magnetic switches can be mounted on the same side.

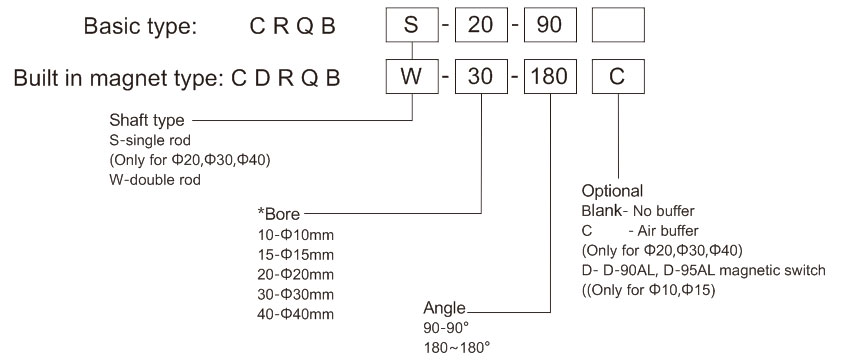

Ordering Code for CRQB Rotary Actuator

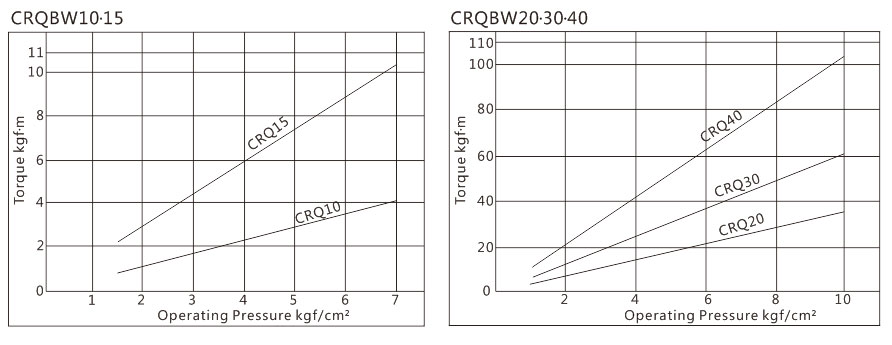

Torque Diagram for CRQB Rotary Actuator

Symbol for Rotary Air Cylinder CRQB Series

Specification for CDRQB Rotary Actuator

Bore (mm) 10 15 20 30 40
Working Medium Air
Motion Pattern Double acting
Max. Operating Pressure kgf/cm2(MPa) 7(0.7)
Min. Operating Pressure kgf/cm2(MPa) 1.5(0.15)
Ambient and fluid temperature 0~60℃
Cushion Rubber Bumper
Swing Angle 90°,180°
Adjustable angle range ±5°
Lubrication Non-lube
Allowable Kinetic Energy (kgf/cm) No Air Cushion 0.0025 0.004 0.25 0.49 0.83
Air Cushion - - 1.2 2.5 4.1
Rotation time range (s/90°) 0.2~0.7 0.2~1
Port Size RC(PT) M5×0.8 1/8

Order Example for CDRQB Rotary Actuator

1) Required bore: Φ10, angle of 90°, built-in magnet type (D-90AL type)
Correct model: CDRQBW10-90D
2) Required bore: Φ40, angle of 180°, single rod built-in magnet type
Correct model: CDRQBS40-180

Angle / magnetic switch selection

Bore (mm) Swing angle Rail Installation
*Magnet switch
10 90°,180° D-90AL,D-76AL
D-93AL,D-80AL
D-A72L,D-F79L
D-A73L,D-J79L
15
20 D-A72L, D-A73L
D-A76L, D-A80L
D-F79L, D-J79L
30
40

*The specifications and characteristics of magnetic switches refer to the series of magnetic switches

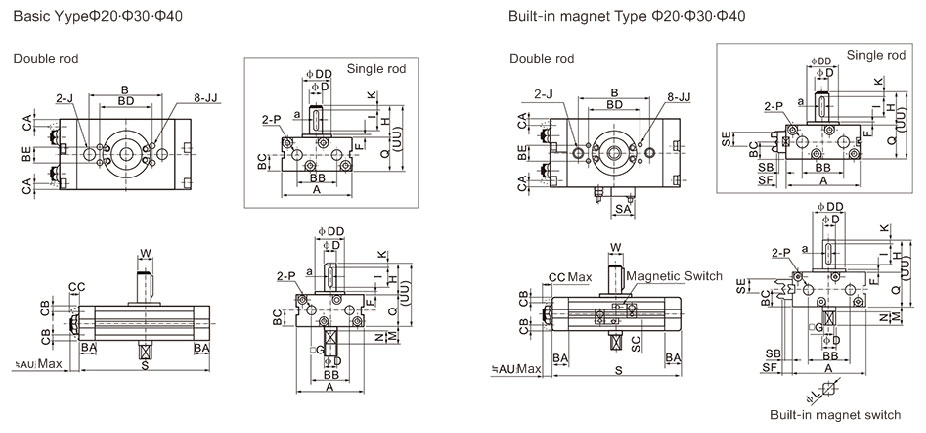

Overall Dimension for CDRQB Rotary Actuator

Model A B BB ΦD(g6) ΦDD F H J I II M P Q S (UU) W ≒AU BA BC
CRQBW10-90 37 29 19 5 12 2 18 M5×0.8 10 6 9 M5×0.8 17 56 44 4.5 5 6 8.5
CRQBW10-180 37 29 19 5 12 2 18 M5×0.8 10 6 9 M5×0.8 17 69 44 4.5 5 6 8.5
CRQBW15-90 48 31 27 6 14 2 20 M5×0.8 10 7 10 M5×0.8 20 65 50 5.5 5 7 10
CRQBW15-180 48 31 27 6 14 2 20 M5×0.8 10 7 10 M5×0.8 20 82 50 5.5 5 7 10

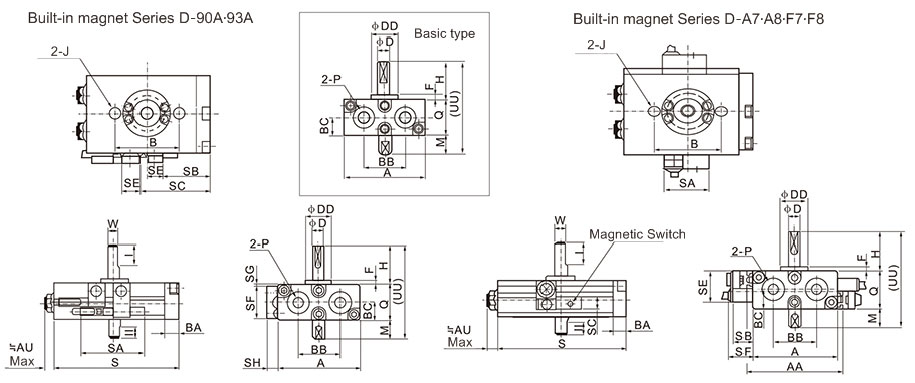

Built in magnetic ring switch (D-90A·93A)

Model SA SB SC SE SF SG SH
CDRQBW10-90 29 21 32 8 16 0.5 5
CDRQBW10-180 29 24 42 8 16 0.5 5
CDRQBW15-90 29 24 37 8 16 0.5 4
CDRQBW15-180 29 28 50 8 16 0.5 4

Built in magnetic ring switch (D-A7·A8·F7·F8)

Model AA SB SC SE D-A7·A8 D-F7·J7
SA SF SA SF
CDRQBW10-90 42 8 7 15 22 10 24 9
CDRQBW10-180 42 8 7 15 22 10 24 9
CDRQBW15-90 53 7 7 15 22 9 24 8
CDRQBW15-180 53 7 7 15 22 9 24 5

Model A B BB ΦD (g6) Φ DD F □G H J K ΦL M N P Q S (UU) W ≒AU BA BC BD BE CA CB CC JJ Flat key SB SC SE D·A7·A8 D·F7·J8
a l SA SF SA SF
CRQBW20-90 63 50 34 10 25 2.5 8 30 M8×1.25 3 9.6 15 11 1/8 29 104 59 11.5 9 15 14.5 - - 6.4 4.8 9.5 - 4 20 6.5 7 15 22 8 24 7
CRQBW20-180 130
CRQBW30-90 69 68 39 12 30 3 10 32 M10×1.25 4 11.4 18 13 1/8 33 122 65 13.5 9 15 16.5 49 16 6.6 5.4 9.5 M5×0.8 D6 4 20 6.5 7 15 22 8 24 7
CRQBW30-180 153
CRQBW40-90 78 76 47 15 32 3 11 36 M10×1.25 5 14 20 15 1/8 37 139 73 17 10 18 18.5 55 16 6.6 5.5 9.5 M6×1
D7
5 25 6.5 7 15 22 8 24 7
CRQBW40-180 177
