Mini Pneumatic Cylinder

Mini Air Cylinder(Miniature Pneumatic Cylinder) generally refers to the Micro Air Cylinder which bore and stroke are very short, the Miniature Air Cylinder shape is small.
Stainless steel Miniature Pneumatic Cylinder has the following characteristics: (1) high precision stainless steel pipe, high strength, more corrosion resistance than MAL; (2) the front and rear cover with fixed fenders, can reduce the reversing impact of the cylinder; (3) a variety of cover form, so that the Miniature Air Cylinder installation is more convenient; (4) before and after cover and stainless steel body and package structure, the rivet connection is reliable;

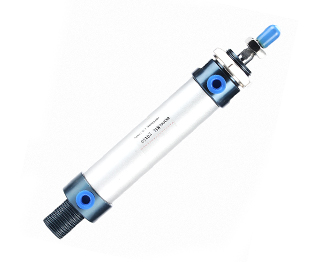

Aluminum Alloy Mini Air Cylinder, a single type and double acting type two for the selection, a bore diameter 20, Phi 25, Phi 32, Phi 40 optional, standard stroke is 25~500mm, the same as the working medium air, working temperature between -20~70 DEG C. MAL series Aluminum Alloy Mini Pneumatic Cylinder piston seal: (1) using a special bidirectional sealing structure, compact size, a storage function; (2) the front cover with self-lubricating bearing guide, lubrication and good performance oriented; (3) a variety of cover form, make the cylinder installation more convenient.

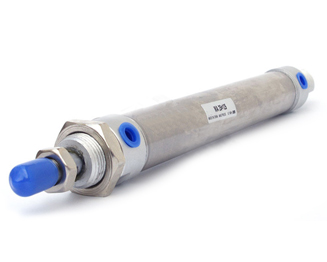

Miniature Pneumatic Cylinder MAL

The output torque and output power of MAL mini cylinder are more stable. Increasing the number of cylinders can make the air car easier to start, and the acceleration response is better. In order to improve the performance of air car, the number of cylinders must be increased.

Bore Sizes: 20,25,32,40mm
Stroke Lengths: 25,50,75,80,100,125,150,160,175,200,300,500mm
Operating Pressure: 0.1-1.0 MPa / 0.2-1.0 MPa
Speed:30~500mm/s；50~500mm/s；
Working Environment Temperature: -20 to 70°C
Learn more

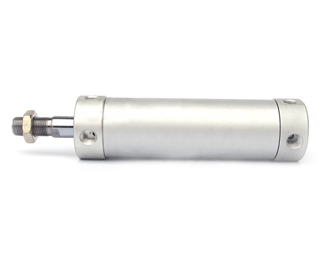

Miniature Pneumatic Cylinder CG1

The CG1 Mini Air Cylinder tube is made of high-strength aluminum alloy and is anodized on the surface, corrosion resistance and wear resistance;

Standard CDG1-Z single-rod double-acting (new) 20,25,32,40,50,63,80,100
Single-acting (telescopic) 20, 25, 32, 40; CG1W-Z double-rod double-acting 20, 25, 32, 40, 50, 63, 80, 100
Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,110,120,130mm
Operating Pressure: 0.05-1.0 MPa
Speed:30~700mm/s；50~1000mm/s；
Working Environment Temperature: -10 to 60°C
Learn more

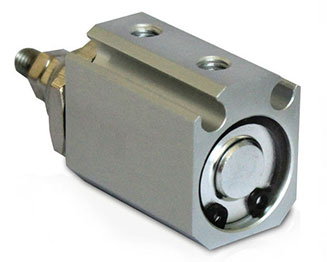

Miniature Pneumatic Cylinder CJP2

CJP2 Miniature Pneumatic Cylinder with bore of φ4-5st can also be equipped with 2 magnetic switches. Can connect φ2 quick-change connector and speed control valve.

Bore Sizes: 6,10,16mm
Stroke Lengths: 5,10,15,20,25,30,35,40mm
Operating Pressure: 0.06/0.12/0.15-0.7 MPa
Speed:10~500mm/s；
Working Environment Temperature: -10 to 60°C
Learn more

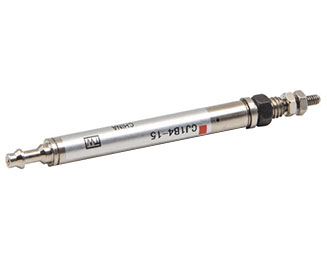

Mini Pneumatic Cylinder CJ1 (Stainless Steel)

CJ1 Stainless Steel Cylinder is double-acting type, and the piping direction of the side pipe joint can be changed within ±90º. It is miniature compact cylinder (Stainless Steel Cylinder) with compact structure, small size and light weight;

Bore Sizes: 2.5,4mm
Stroke Lengths: 5,10,15,20mm
Operating Pressure: 0.3-0.7 MPa
Speed:50~500mm/s；
Working Environment Temperature: -10 to 70°C
Learn more

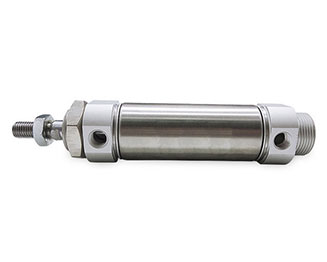

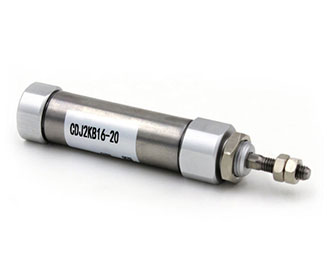

Mini Pneumatic Cylinder CJ2 (Stainless Steel)

CJ2 Cylinder is a kind of double acting cylinders, various installation forms are available. With Rubber bumper or air cushion. No lubrication is needed. Cylinder material is 304, 316 stainless steel.

Bore: 6, 10, 16mm
Motion Pattern: double-acting, single-acting
Working Medium: Air, Non-lube
Operating pressure: 0.06~0.7MPa
Ambient and fluid temperature: -10~70°C (No Freezing);
Piston speed: 50~750mm/s
Learn more

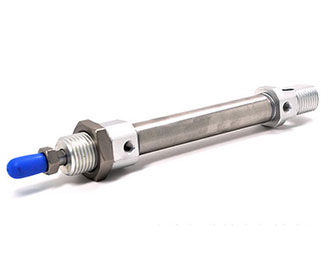

Mini Pneumatic Cylinder CM2 (Stainless Steel)

CM2 Mini Cylinder piston adopts a combined sealing ring to realize two-way sealing, and the piston and the piston rod are riveted together without using a nut.

Bore: 20, 25, 32, 40mm
Stroke length: 300mm
Operating pressure: 0.7MPa
Piston speed: 50~750mm/s
Ambient and fluid temperature: -10~+70°C
Learn more
Mini Pneumatic Cylinder MI (Stainless Steel)

MI Mini cylinder, front and rear cover with fixed anti-collision pad, can reduce the reversing impact of the cylinder; a variety of back cover forms, so that the installation of the cylinder more convenient.

Bore: 8, 10, 12, 16, 20, 25mm
Stroke length: 0~500mm
Operating pressure: 0.1~1.0MPa(Double-acting); 0.2~1.0MPa(Single-acting)
Piston speed: 50~750mm/s
Ambient and fluid temperature: -20~+70°C
Learn more
Mini Pneumatic Cylinder MA (Stainless Steel)

The piston seal of MA Mini Cylinder adopts special-shaped two-way sealing structure, has compact size and oil storage function; The front and rear covers of the MA Mini Cylinder have the fixed anti-collision pad to reduce reversal impact.

Bore: 16, 20, 25, 32, 40, 50, 63mm
Stroke length: 25~500mm
Operating pressure: 0.1~1.0MPa(Double-acting); 0.2~1.0MPa(Single-acting)
Piston speed: Single-acting: 50~800mm/s; Double-acting: 30~800mm/s
Ambient and fluid temperature: -20~+70°C
Learn more

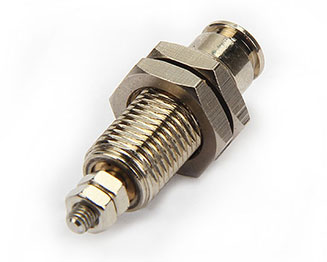

Micro Air Cylinder CJP

CJP Pin Cylinder has a compact brass body with an unthreaded stainless-steel piston rod, and it has panel mounting for installation through walls or panels. The CJP Mini Air Cylinder has panel mounting and comes with both mounting and rod end nuts for installations through walls or panels.

Bore: 4, 6, 10, 15mm
Stroke length: 5, 10, 15mm
Operating pressure: 0.2~0.7MPa
Piston speed: 50~500mm/s
Ambient and fluid temperature: -10~+70°C
Learn more
