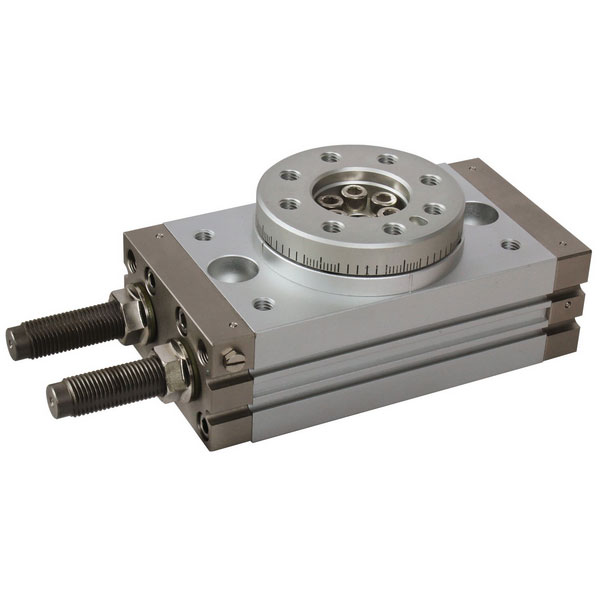

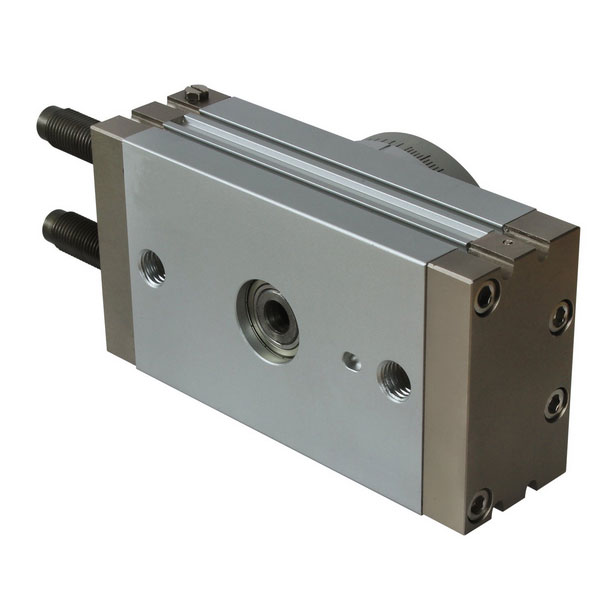

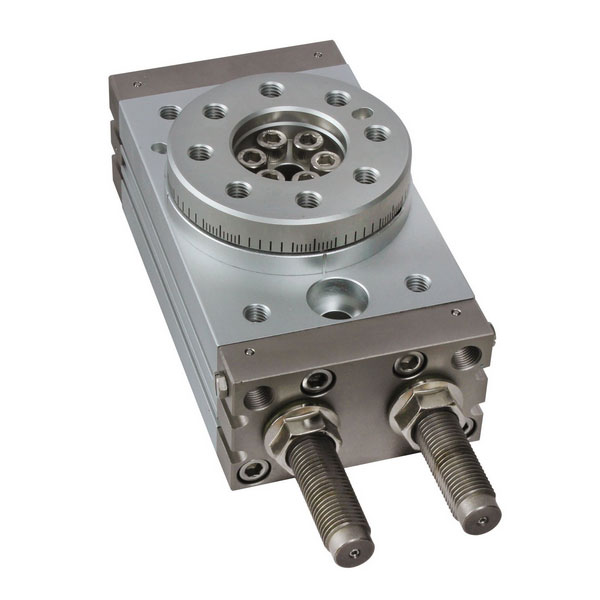

Rotary Air Actuator MSQB (Rotary Table)

MSQB Rotary Cylinder is a rack-and-pinion Rotary Air Cylinder, which is different from the general cylinder working directly through the reciprocating motion of the front-end piston. The maximum rotation angle of the Rotary Table Cylinder is between 0~190°.

Bore: 10, 20, 30, 50mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Angle adjustment range: 0~190°
Ambient and fluid temperature: 0~60℃ (No Freezing)

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MSQB Rotary Cylinder

MSQB Rotary Cylinder is a rack-and-pinion Rotary Air Cylinder, which is different from the general cylinder working directly through the reciprocating motion of the front-end piston. The working principle of the Rotary Table Cylinder is that the piston is driven by the input air pressure, the piston drives the rack in the cylinder to move in a straight line, and the rack drives the gear in the center of the cylinder to rotate. The dial connected with the gear drives the load on the Rotary Table Cylinder to swing.
The maximum rotation angle of the Rotary Table Cylinder is between 0~190°. When the air pressure is input from one side, the Rotary Table Cylinder rotates clockwise, and when the air is input from the other side, it starts to rotate counterclockwise. The maximum allowable lateral load of MSQB Rotary Cylinder is 78-543N, the maximum allowable internal axial load is 74-740N, the maximum external axial load is 78-1009N, and the maximum allowable bending moment is 2.4-25Nm.

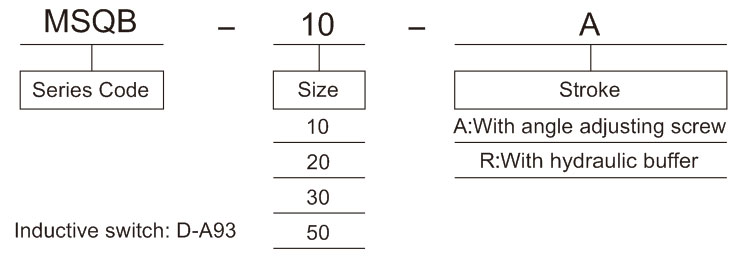

Ordering Code for MSQB Rotary Cylinder

Technical Parameter for MSQB Rotary Cylinder

Bore 10 20 30 50
Working Medium Air (no oil)
Motion Pattern Double-acting
Max operating pressure Angle adjusting screw 1MPa
Hydraulic buffer 0.6MPa
Min operating pressure 0.1MPa
Environment and fluid temperature 0~60℃ (No Freezing)
Buffer Rubber buffer (standard) / Hydraulic buffer (optional)
Allowable Kinetic Energy Angle adjusting screw 0.007J 0.025J 0.048J 0.081J
Hydraulic buffer 0.039J 0.116J 0.294J
Angle adjustment range 0~190°
Maximum swing angle 190°
Stable swing time range Angle adjusting screw 0.2~1.0s/90°
Hydraulic buffer 0.2~0.7s/90°
Port Size M5×0.8 Rc 1/8
Torque (N·m) 0.89 1.84 2.73 4.64

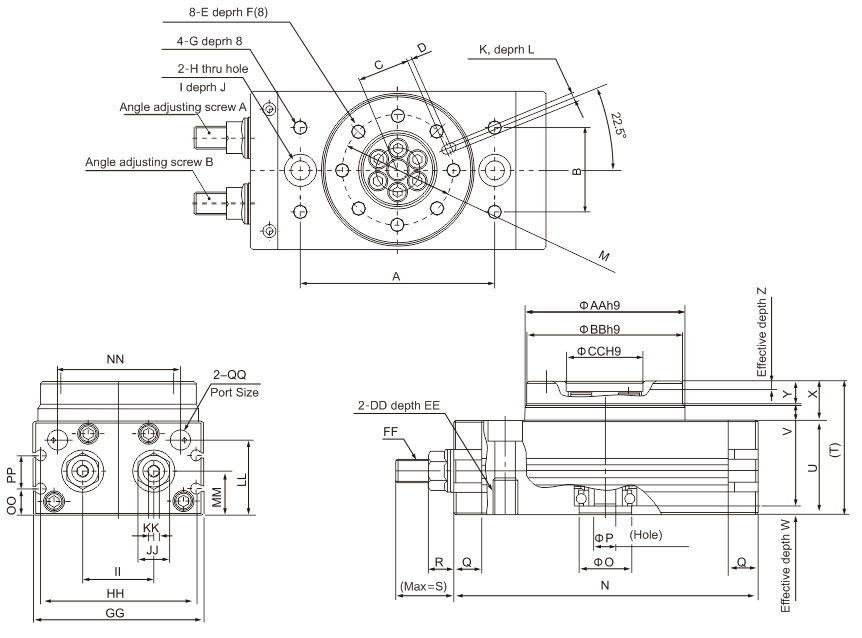

Overall Dimension for MSQB Rotary Table Cylinder

Model A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
MSQB10□ 60 27 15 2 M5×0.8 8 M5×0.8 6.8 11 6.5 3H9 3.5 32 92 15H9 5 9.5 8.6 17.7 47 34 4.5 3 13 8 4
MSQB20□ 76 34 20.5 2 M6×1 10 M6×1 8.6 14 8.5 4H9 4.5 43 117 17H9 9 12 10.6 25 54 37 6.5 2.5 17 10 6
MSQB30□ 84 37 23 2 M6×1 10 M6×1 8.6 14 8.5 4H9 4.5 48 127 22H9 9 12 10.6 25 57 40 6.5 3 17 10 4.5
MSQB50□ 100 50 26.5 2 M8×1.25 12 M8×1.25 10.5 18 10.5 5H9 5.5 55 152 26H9 10 15.5 14 31.4 66 46 7.5 3 20 12 5

Model AA BB CC DD EE FF GG HH II JJ KK LL MM NN OO PP QQ RR SS QQ Hydraulic buffer
MSQB10□ 46 45 20 M8×1.25 12 M8×1 50 45 20 12 4 27.8 15.5 34.5 9 13 M5×0.8 31.5 8.6 M8×1 AC0806
MSQB20□ 61 60 28 M10×1.5 15 M10×1 65 60 27.5 14 5 28.5 16 51 10 12 M5×0.8 34.7 10.6 M10×1 AC1008
MSQB30□ 67 65 32 M10×1.5 15 M10×1 70 65 29 14 5 32 18.5 50 11.5 14 1/8 34.7 10.6 M10×1 AC1008
MSQB50□ 77 75 35 M12×1.75 18 M14×1.5 80 75 38 19 6 37.5 22 63 14.5 15 1/8 51.7 14 M14×1.5 AC1410
