Swing Clamp Cylinder HSR

HSR Cylinder adopts an imported sealing ring and an integrated piston rod. The cylinder block is made of aluminium alloy, the surface is hard oxidized by anode, the inner wall is finely machined, and the finish is excellent.

Bore: 25, 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.7MPa
Rotation Angle: 90°(±2°)
Ambient and fluid temperature: 0~60°C

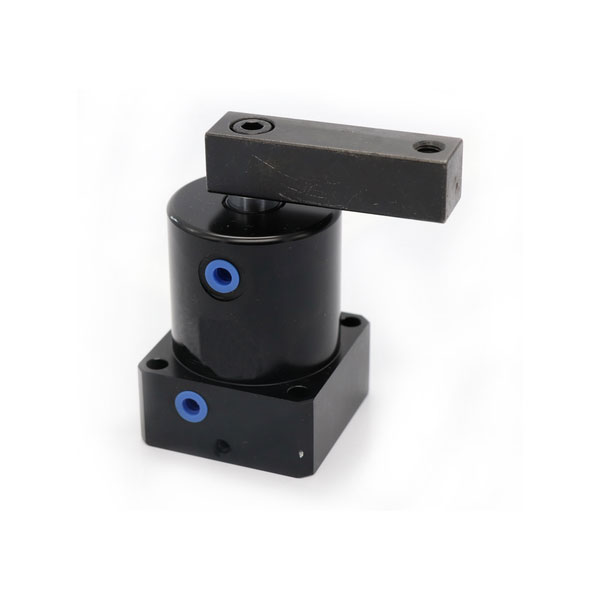

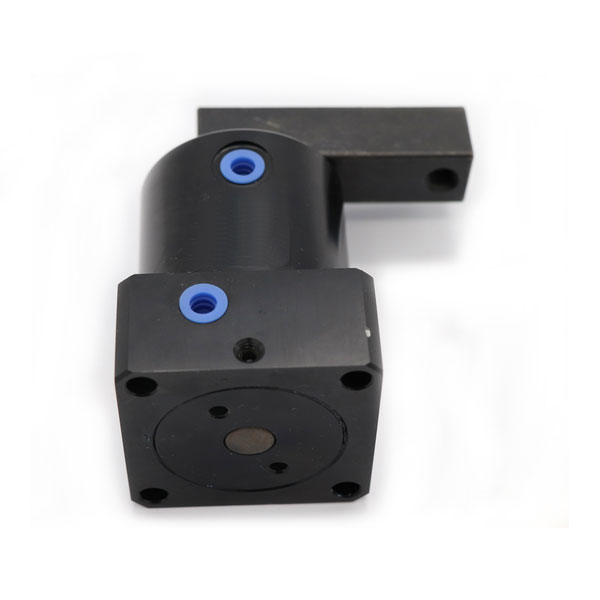

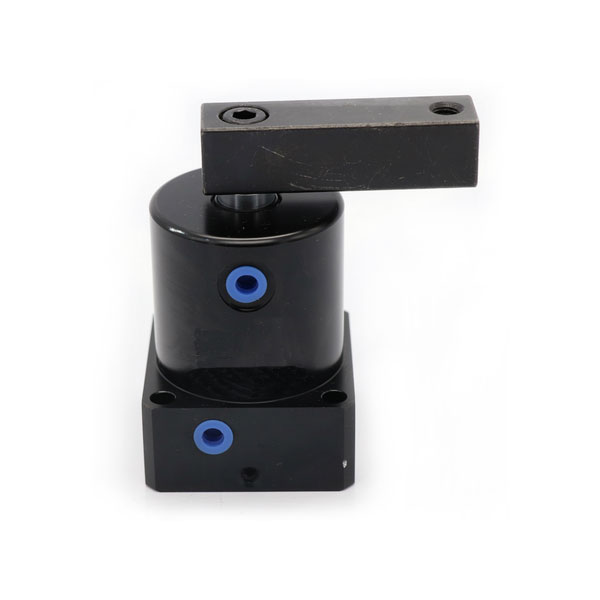

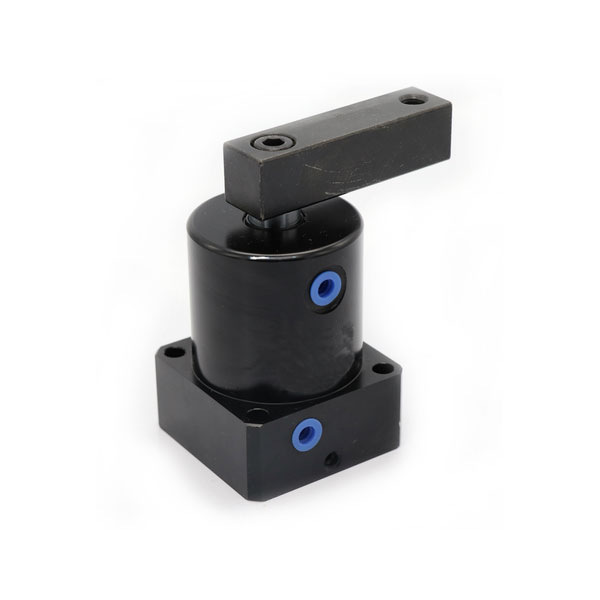

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for HSR Cylinder

HSR Cylinder adopts an imported sealing ring and an integrated piston rod. The cylinder block is made of aluminium alloy, the surface is hard oxidized by anode, the inner wall is finely machined, and the finish is excellent. The Swing Clamp Cylinder is equipped with imported self-lubricating sealing rings. Generally, it does not need follow-up lubrication maintenance. Swing Clamp Cylinder has the advantages of accurate positioning, efficient clamping and automatic control and so on. HSR Cylinder is widely used in tooling, fixtures, inspection tools, CNC machining centers. Rotary Air Cylinder can replace the traditional manual quick clamp, improve production efficiency, reduce industrial accidents, and can clamp dozens of products at the same time. The work efficiency is very high, especially suitable for mass production.

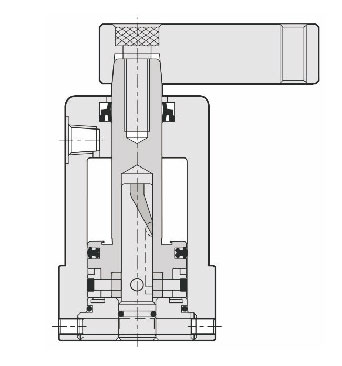

Internal structure drawing for HSR Cylinder

Specification for Rotational Actuator HSR Series

Bore (mm) 25 32 40 50 63
Working Medium Air
Motion Pattern Double-acting
Operating Pressure 1~7kgf/cm²(100~700kPa)
Ambient and Fluid Temp. 0~60℃
*Lubrication Non-lube
Slewing stroke (mm) 9 11 13
Downward stroke (mm) 13 15 17
Rotation Angle 90°(±2°)
Rotation Direction Turn left (from right to left)-L, Turn right (from left to right)-L
Port Size M5×0.8 1/8

*For Lubrication, please use ISOVG32.

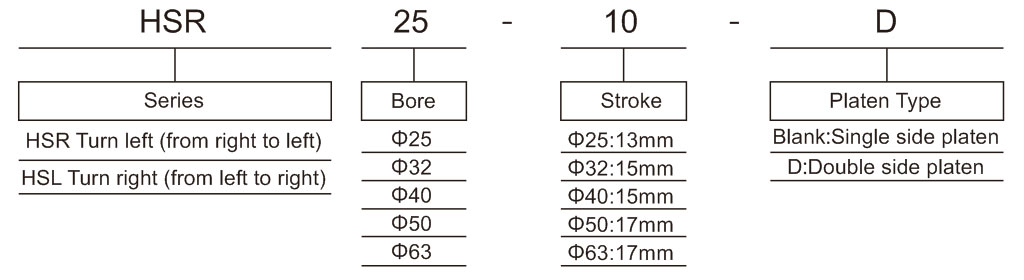

Ordering Code for Rotational Actuator HSR Series

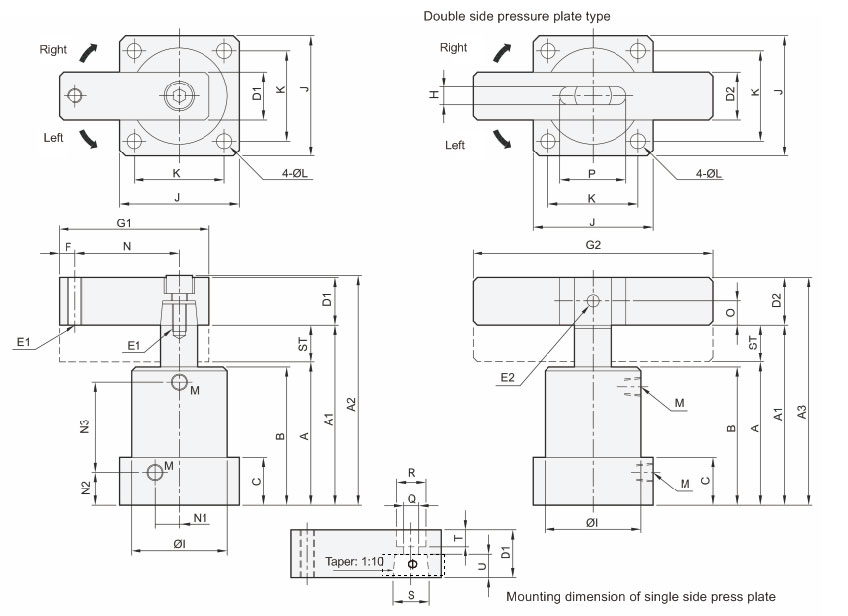

Overall Dimension for HSR Swing Clamp Cylinder

Bore Shaft diameter Corner stroke Vertical stroke Compression area Theoretical clamping force (N) Platen length
Press side / Pull side 0.6MPa G1 G2
Φ25 Φ14 9 13 491/337 200 50 -
Φ32 Φ16 11 15 804/603 360 70 140
Φ40 Φ16 11 15 1257/1056 630 75 140
Φ50 Φ20 13 17 1963/1649 980 85 160
Φ63 Φ20 13 17 3117/2803 1680 95 160

Bore ST A A1 A2 A3 B C D1 D2 E1 E2 F H I J K L M N O P Q R S T U N1 N2 N3
Φ25 22 67 89 105.9 - 65 23 □15.9 - M6×1.0 - 6 - Φ35 38 30 Φ4.6 M5×0.8 35 - - Φ6.8 Φ11 Φ14 5 8.5 8 16.5 39.5
Φ32 26 82 108 128 127 78 28 □19 □19 M8×1.25 Φ8 8 9 Φ46 50 40 Φ5.6 PT1/8 50 9.5 25 Φ9 Φ14 Φ16 7 9.5 11.5 19 45
Φ40 26 82 108 128 127 78 28 □19 □19 M8×1.25 Φ8 8 9 Φ55 60 48 Φ6.8 PT1/8 55 9.5 25 Φ9 Φ14 Φ16 7 9.5 14 19 45
Φ50 30 94 124 150.4 146.2 90 31 □25.4 □22.2 M10×1.5 Φ8 10 10 Φ65 70 57 Φ6.8 PT1/8 60 11.1 29 Φ11 Φ18 Φ20 9 12.5 17 21 54
Φ63 30 94 124 150.4 146.2 90 31 □25.4 □22.2 M10×1.5 Φ8 10 10 Φ78 83 67 Φ9 PT1/8 70 11.1 29 Φ11 Φ18 Φ20 9 12.5 20 21 54
