Pneumatic Cylinder Actuator - Compact Pneumatic Cylinder 9

Compact Pneumatic Cylinder



Compact Pneumatic Cylinder (Thin AIR Cylinder) is an element that performs control of the controlled object based on the control information from the controller. Compact AIR Cylinder converts electrical or fluid energy into mechanical or other energy forms and changes the mechanical motion or other conditions (eg temperature, pressure, etc.) of the controlled object in accordance with the control requirements. Thin Cylinder acts directly on the controlled object, can play the "hand" and "foot" role.

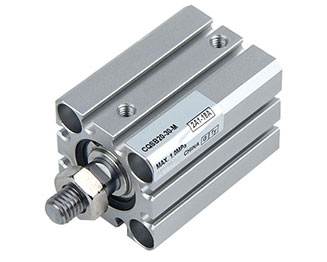

  • Compact Pneumatic Cylinder CQS

    CQS Compact Pneumatic Cylinder has compact structure, can effectively save installation space; Occupy less space, lightweight structure, beautiful appearance, can withstand large lateral load, can be directly installed on various fixtures and special equipment without installing accessories;

    Bore Sizes: 12,16,20,25
    Stroke Lengths: 5,10,15,20,25,30,35,40,45,50mm
    Operating Pressure: 0.1-1.0 MPa
    Speed: 50-500mm/s
    Working Environment Temperature: -10 to 60°C
    Learn more

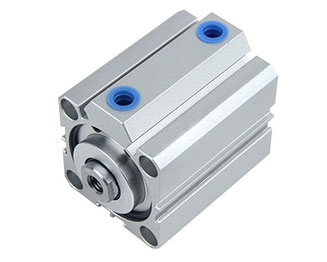

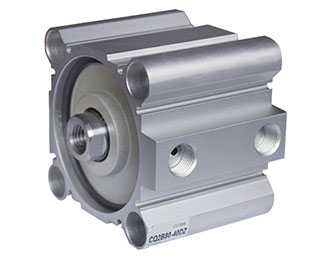

  • Compact Pneumatic Cylinder CQ2

    CQ2 Compact Pneumatic Cylinder Compact structure, which can effectively save the installation space.Thin and light: When maintaining the existing operation accuracy and product life, its full length is 1/2 to 1/3 of the general cylinder.

    Bore Sizes: 12,16,20,25,32,40,50,63,80,100
    Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100mm
    Operating Pressure: 0.25-0.7 MPa
    Speed: 50-500mm/s;
    Working Environment Temperature: -10 to 70°C
    Learn more

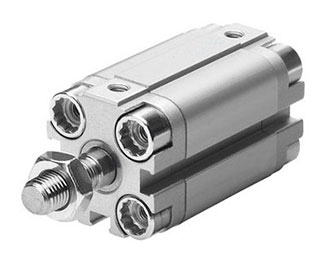

  • Compact Pneumatic Cylinder ADVU

    ADVU Compact Pneumatic Cylinder Compared with ISO15552, ISO6432 standard cylinders, ADVU Compact Air Cylinder has the same force, can save 50% space. Conforms to the specific type of the ATEX directive and can used in potentially explosive working environments.

    Bore Sizes: 16,25,32,40,50,63,80,100
    Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,200,300mm
    Operating Pressure: 0.13-1.0 MPa
    Speed:30~800mm/s;
    Working Environment Temperature: -10 to 80°C
    Learn more

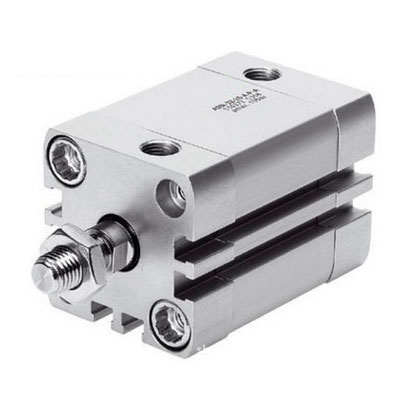

  • Compact Pneumatic Cylinder ADN

    ADN Compact Pneumatic Cylinder meets ISO21287, and is about 50% smaller than the ISO15552 standard cylinder. The piston is magnetic, and the main body has the integrated groove for proximity switch non-contact position detection.

    Bore Sizes: 16,25,32,40,50,63,80,100
    Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,200,300mm
    Operating Pressure: 0.13-1.0 MPa
    Speed:30~800mm/s;
    Working Environment Temperature: -10 to 80°C
    Learn more

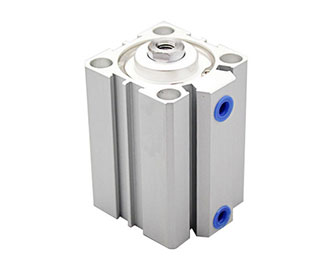

  • Compact Pneumatic Cylinder SDA

    SDA Compact Air Cylinder is called ultra-thin cylinder because of its structure. The Compact Pneumatic Cylinder block and rear cover, piston and piston rod adopt riveting structure, makes the cylinder compact and reliable;

    Bore Sizes: 12,16,20,25,32,40,50,63,80,100mm
    Stroke Lengths: 5,10,15,20,25,30,40,50,75,100,130mm
    Operating Pressure: 0.2-0.9MPa Single action;0.1-0.9MPa Double action
    Speed: Double action:30~500mm/s  Single action:50~500mm/s
    Working Environment Temperature: -10 to 80°C
    Learn more
  • Compact Pneumatic Cylinder SDAW

    SDAW Ultra-thin Air Cylinde end cover is provided with an intake and exhaust ports, and some are provided with a buffer mechanism in the end cover.

    Bore Sizes: 2.5,4mm
    Stroke Lengths: 5,10,15,20mm
    Operating Pressure: 0.3-0.7 MPa
    Speed:50~500mm/s;
    Working Environment Temperature: -10 to 80°C
    Learn more

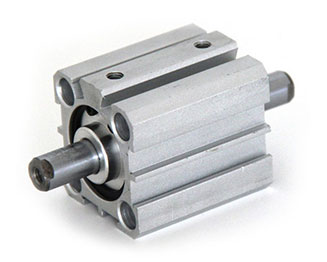

  • Compact Pneumatic Cylinder SDAD

    Execute the AirTAC Standard Double Rod Compact Air Cylinder The Double Rod Compact Air Cylinder SDAD body and the rear cover, the piston and the piston rod adopt the riveting structure, which makes the cylinder compact and reliable.

    Bore Sizes: 12,16,20,25,32,40,50,63,80,100mm
    Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,110,120,130mm
    Operating Pressure: 0.1-1.0 MPa / 0.2-1.0 MPa
    Speed:30~500mm/s;50~500mm/s;
    Working Environment Temperature: -10 to 80°C
    Learn more

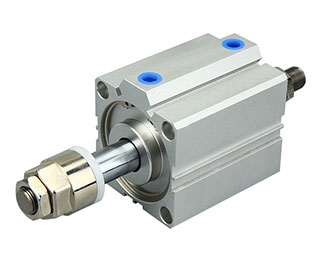

  • Compact Pneumatic Cylinder SDAJ

    SDAJ Compact Pneumatic Cylinder axial size is small, the structure is compact, light and beautiful. Direct installation, without additional accessories.

    Bore Sizes: 12,16,20,25,32,40,50,63,80,100mm
    Stroke Lengths: 20-20,30-20,40-30,50-30,75-50,100-50mm
    Operating Pressure: 0.1-0.9 MPa
    Speed:30~500mm/s;30~350mm/s;30~250mm/s;100~500mm/s;
    Working Environment Temperature: -5 to 70℃
    Learn more
  • Ultra Thin Air Cylinder SDAT

    SDAT Ultra Thin Air Cylinder have developed a variety of miniature pneumatic systems composed of multiple pneumatic components and equipped with control devices for the convenience of the user and meeting the market needs.

    Bore Sizes: 16,25,32,40,50,63,80,100
    Stroke Lengths: 5,10,15,20,25,30,35,40,45,50mm
    Operating Pressure: 0.1-0.7 MPa
    Speed:30~200mm/s;
    Working Environment Temperature: -10 to 70°C
    Learn more
