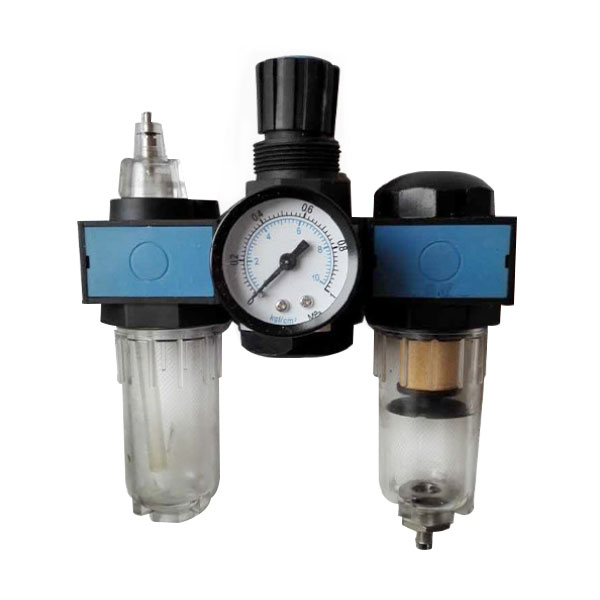

Air Filter Regulator Lubricator FRL700A

FRL700A Air Combination remove water and particle effectively. Miniature 3 Units Air Combination has compact size with effective air service. 40µm and 5µm filter element are easily interchangeable and replaceable. Accurate and easy pressure setting.

Working Medium: Compressed Air
Proof Pressure: 1.0MPa
Ambient temperature: -10~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.8MPa

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for FRL700A Air Combination

FRL700A Air Combination remove water and particle effectively. Miniature 3 Units Air Combination has compact size with effective air service. 40µm and 5µm filter element are easily interchangeable and replaceable. Accurate and easy pressure setting. Oil spray in mist ensures good lubrication for machines. Miniature 3 Units Air Combination from China Air Filter Regulator Lubricator FRL Manufacturers And Suppliers has strict quality control offers product stable quality and long life.

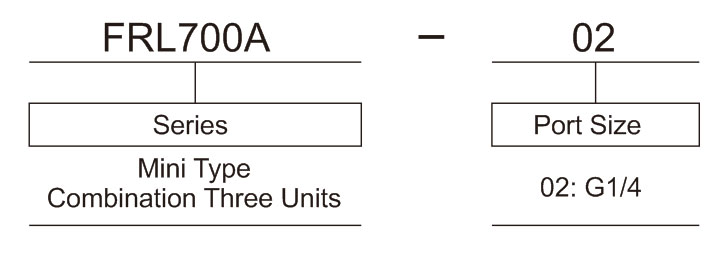

Ordering Code for FRL700A Air Combination

Symbol for Pneumatic FRL FRL700A Mini Series

Technical Parameter for FRL700A Air Combination

Model FRL700A-02
Assembly F200A-02
R200
L200A-02
Port Size G1/4
Working Medium Compressed Air
Range of pressure regulation 0.05~0.8MPa
Max. Proof Pressure 1.0MPa
Filtration aperture 40μm(routine) or 5μm(customized)
Max. Flow 1800L/min
Capacity of oil bowl 50ml
Capacity of water bowl 35ml
Lubrication ISO VG32 or the same grade oil
Ambient temperature -10~60℃
Main material Body: Engineering rubber; Bowl: PC

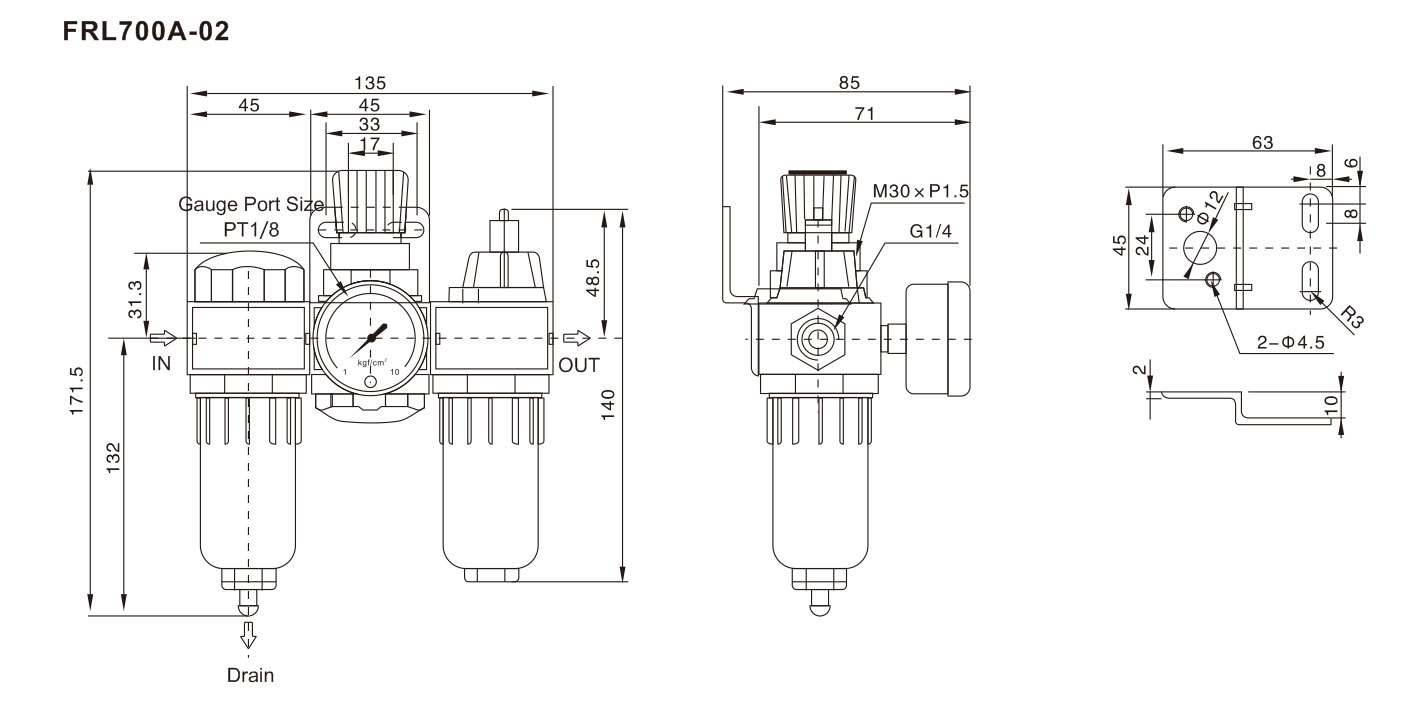

Overall Dimension for Miniature 3 Units Air Combination

Keywords:

FRL700A Air Combination | Miniature 3 Units Air Combination
