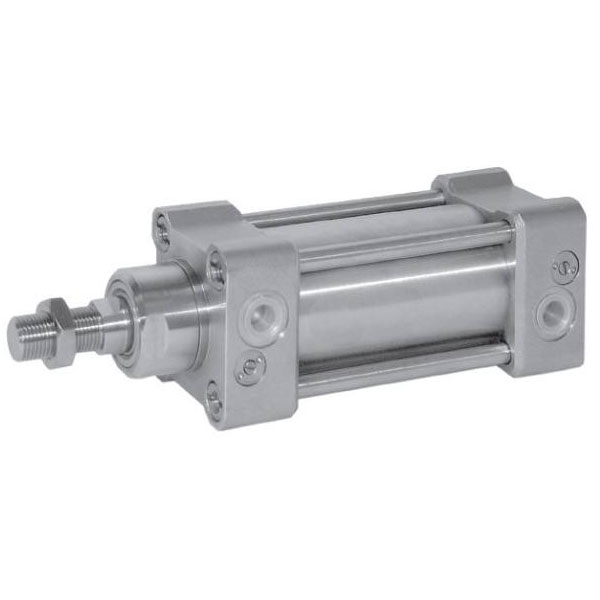

Standard Pneumatic Cylinder VDMA

VDMA ISO 6431 Cylinder is manufactured according to international standard ISO-VDMA. VDMA 24562 Cylinder has no fastening rod and most parts can be replaced by each other. The fixed groove of embedded induction switch is designed on all four sides of the cylinder tube.

Bore: 32, 40, 50, 63, 80, 100mm
Motion Pattern: Single-acting
Operation pressure: 1~10Bbar
Sealing ring material: NBR
Ambient and fluid temperature: -20~+80°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for VDMA Cylinder

VDMA ISO 6431 Cylinder is manufactured according to international standard ISO-VDMA specifications. VDMA 24562 Cylinder has no fastening rod and most parts can be replaced by each other. The fixed groove of embedded induction switch is designed on all four sides of the cylinder tube, and the installation position of the induction switch can be changed according to the actual use demand. The use of oil-containing alloy and special bearing bushing makes the piston rod have no need for lubrication.
The VDMA Cylinder is made of aluminum alloy and treated by alumina membrane, which is more wear resistant and corrosion resistant. Pipe bore PT and NPT thread type can be customized.
1. Configuration: with or without magnetic rings.
2. Type: double-acting, single-rod and double-rod.
3. Sealing ring material of Standard Cylinder: NBR
4. Special configuration according to requirements.
5. Main application industries: Food industry, machinery, medicine and other industries.
6. Product advantages: VDMA 24562 Cylinder adopt PUR seals, long service life, corrosion resistant design, built-in magnetic switch, lubricated with food grade grease.

Product Feature for VDMA Cylinder

RA/28000/M, RA/28300/M
Single-acting
Ø32~100mm
Comply with ISO 6431 Cylinder, VDMA 24562 Cylinder, and NFE49-003-1 standards
Polyurethane seals ensure effective low friction operation and long life
Standard installations are diversified in form
The magnetic piston ensures the flexibility of the control system

Specification for VDMA Cylinder

Working Medium Filtered compressed air
Operation mode RA/28000: Single-acting, Piston rod return, RA/28000/M: Single-acting, Magnetic piston, Piston rod return
RA/28300: Single-acting, Piston rod extend, RA/28300/M: Single-acting, Magnetic piston, Piston rod extend
Operation pressure 1~10Bbar
Operating Temperature -20℃~80℃
Stroke Nonstandard values, up to 250mm
Material Cylinder body: anodized aluminum; cylinder head: die cast aluminum; piston rod: stainless steel (martensite); piston rod, piston seal: polyurethane; O-ring: nitrile rubber

Standard Model for VDMA Cylinder

Bore
Ø
Piston rod diameter
Ø
Port Size Magnetic piston Non-magnetic piston Maintenance parts
Spring return Spring extend Spring return Spring extend
32 12 G1/8 RA/28032/M/* RA/28032/* RA/28332/M/* RA/28332/* QA/8032/00
40 16 G1/4 RA/28040/M/* RA/28040/* RA/28340/M/* RA/28340/* QA/8040/00
50 20 G1/4 RA/28050/M/* RA/28050/* RA/28350/M/* RA/28350/* QA/8050/00
63 20 G3/8 RA/28063/M/* RA/28063/* RA/28363/M/* RA/28363/* QA/8063/00
80 25 G3/8 RA/28080/M/* RA/28080/* RA/28380/M/* RA/28380/* QA/8080/00
100 25 G1/2 RA/28100/M/* RA/28100/* RA/28310/M/* RA/28310/* QA/8100/00

* Insertion stroke length mm

Bore
Ø
Theoretical force of RA/28000 6bar Theoretical force of RA/28300 6bar
Extend F1 Return F1
32 392 50 324 50
40 648 60 528 60
50 1043 75 854 75
63 1735 75 1546 75
80 2795 130 2501 130
100 4492 130 4197 130

Standard Stroke for ISO 6431 Cylinder

Bore Ø 25 50 80 100
32
40
50
63
80
100
