Stainless Steel Solenoid Valve 2WB

1. Two Way Solenoid Valve Use direct acting diaphragm structure, start without pressure, and expands its application field. 2. Two Way Solenoid Valve Use flat diaphragm structure, open and close reliably, and the service life of the product is enhanced.

Port Size: G3/8,G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: Water and oil: 0~5.0kgf/cm²; Air: 0~7.0kgf/cm²
Working Environment Temperature: -5~85℃
Material: Stainless steel 304,NBR

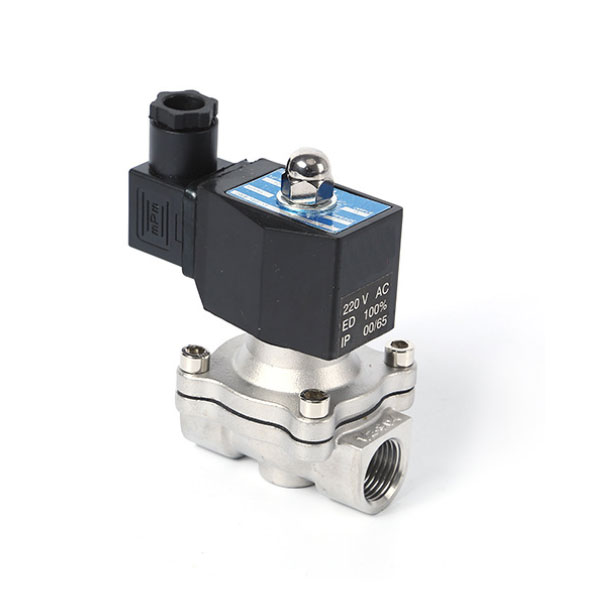

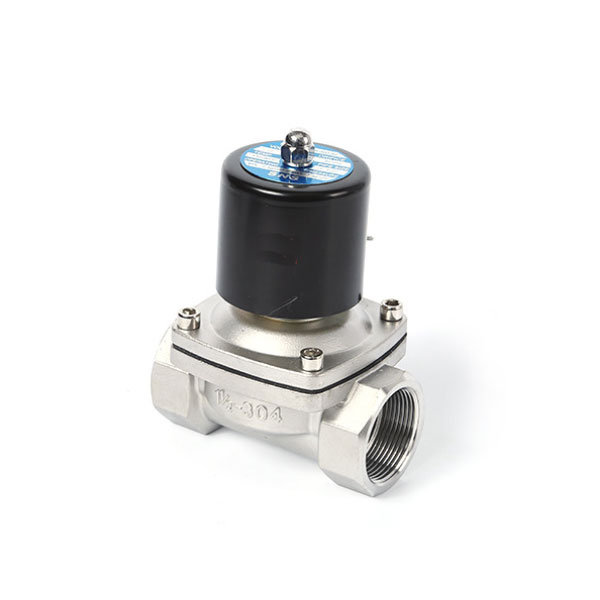

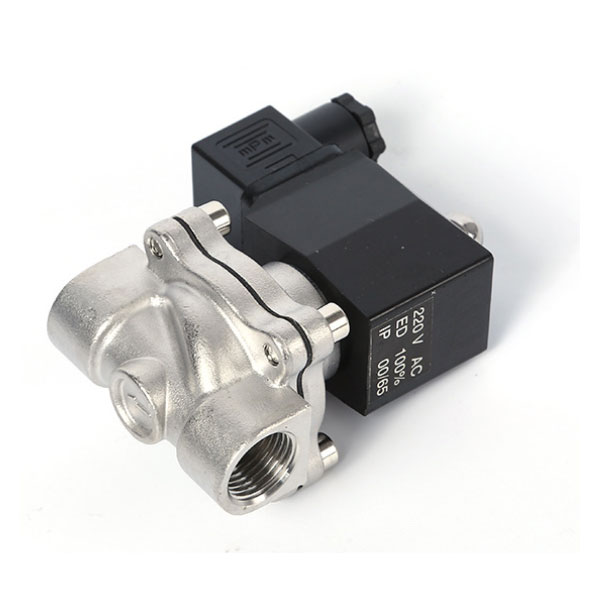

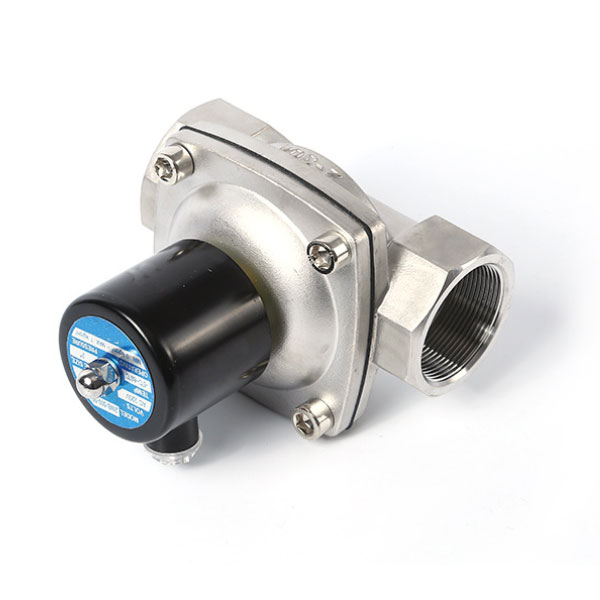

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Stainless Steel Solenoid Valve 2WB

1. Two Way Solenoid Valve Use direct acting diaphragm structure, start without pressure, and expands its application field.
2. Two Way Solenoid Valve Use flat diaphragm structure, open and close reliably, and the service life of the product is enhanced.
3. Two Way Solenoid Valve Using plastic coils can improve the safe use of this product in many environments.

Technical Parameters for Stainless Steel Solenoid Valve 2WB

Port Size: G3/8,G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: Water and oil: 0~5.0kgf/cm²; Air: 0~7.0kgf/cm²
Working Environment Temperature: -5~85℃
Material: Stainless steel 304,NBR

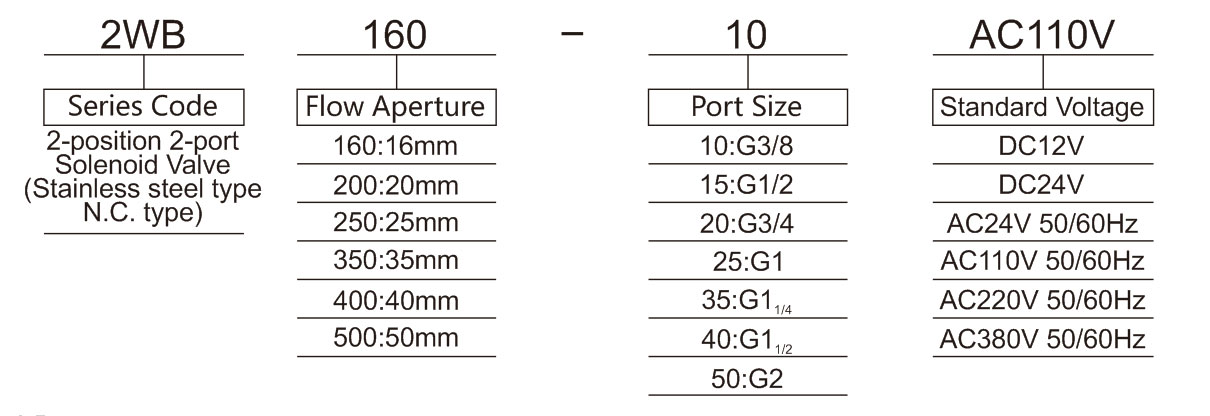

Ordering Code for Stainless Steel Solenoid Valve 2WB

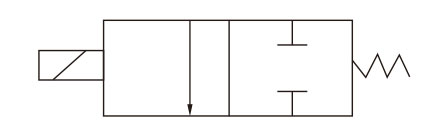

Symbol for Air Solenoid Valve 2WB Series

Technical Parameter for Stainless Steel Solenoid Valve 2WB

Model 2WB160-10 2WB160-15 2WB200-20 2WB250-25 2WB350-35 2WB400-40 2WB500-50
Working Medium Air, water, oil
Motion Pattern Pilot type
Type Normally closed type
Flow Aperture (mm²) 10 15 20 25 35 40 50
Cv value 4.8 4.8 7.6 12 24 29 48
Port Size G3/8 G1/2 G3/4 G1 G1(1/4) G1(1/2) G2
Fluid Viscosity Under 20CS
Operating Pressure Water and oil: 0~5.0kgf/cm²; Air: 0~7.0kgf/cm²
Max. Proof Pressure 10kgf/cm²
Ambient and Fluid Temp. -5~85℃
Operating Voltage ±10%
Main parts material Body Stainless steel 304
Sealing element NBR
Coil Power 20VA 50VA

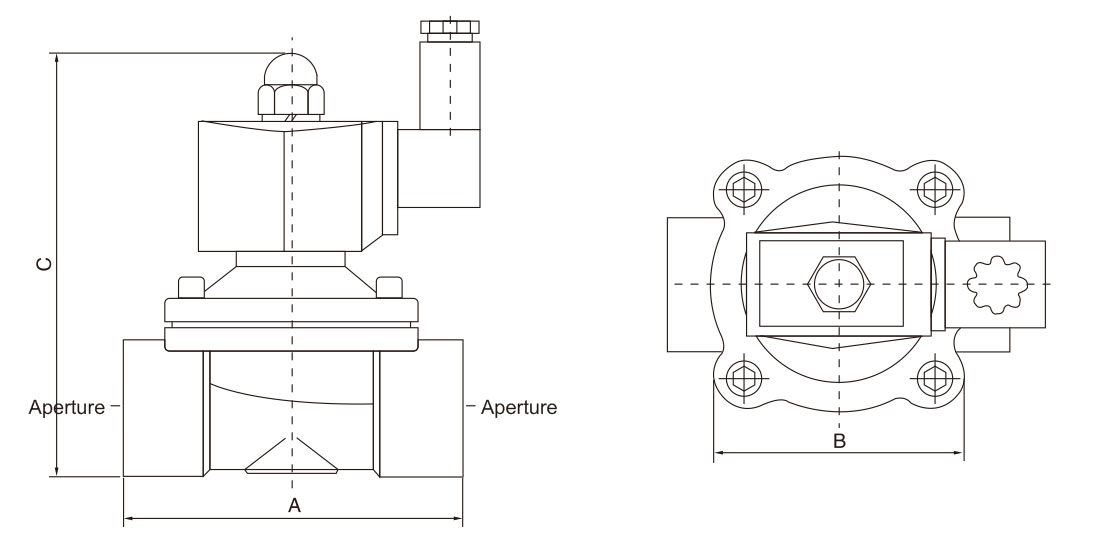

Overall Dimension for Stainless Steel Solenoid Valve 2WB

Model Aperture A B C
2WB160-10 G3/8 69 56 111
2WB160-15 G1/2 69 56 111
2WB200-20 G3/4 71 56 117
2WB250-25 G1 98 76 126
2WB350-35 G1(1/4) 116 87 155
2WB400-40 G1(1/2) 122 94 165
2WB500-50 G2 167 123 189.5
