Pneumatic Air Regulator AW

AW Air Regulator can save space, required pipes is fewer, and saves installation costs. Pneumatic Air Regulator AR is made of solid material that can withstand high pressure and allows the user to operate a wide range of regulating pressure.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.7MPa(AW1000-02); 0.05~0.85MPa

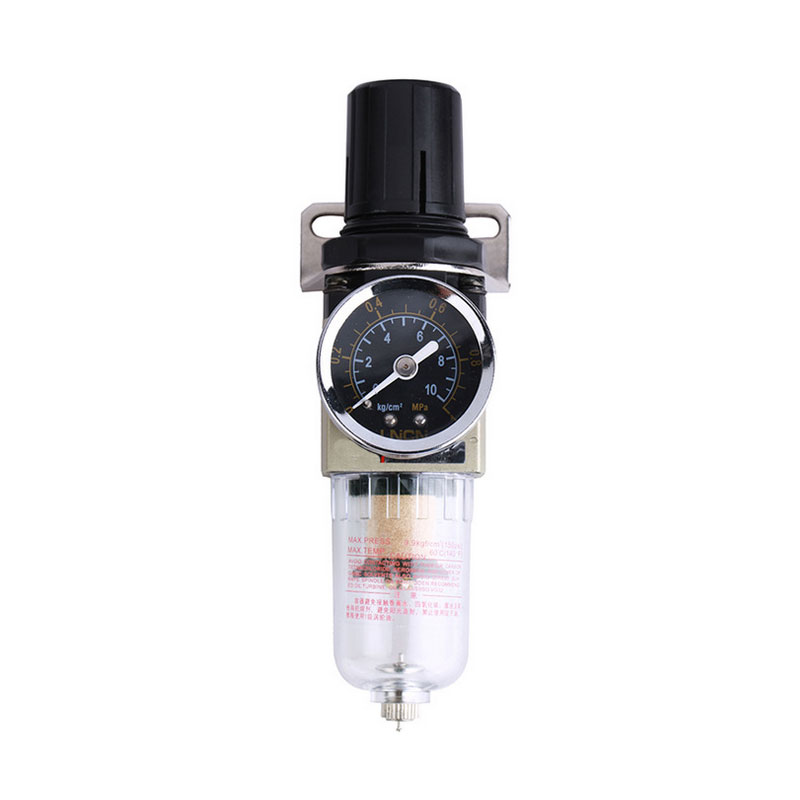

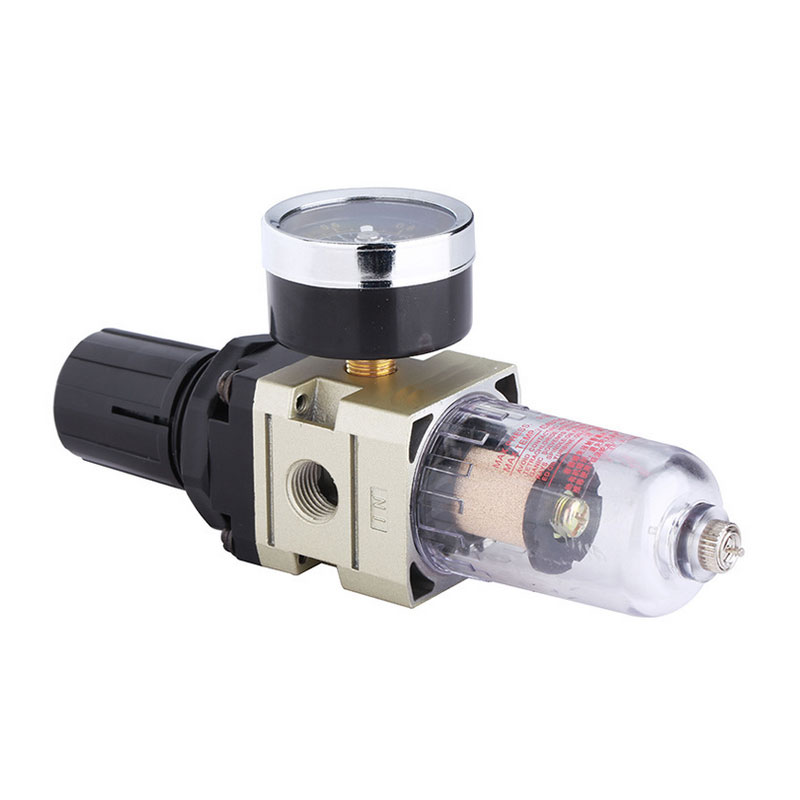

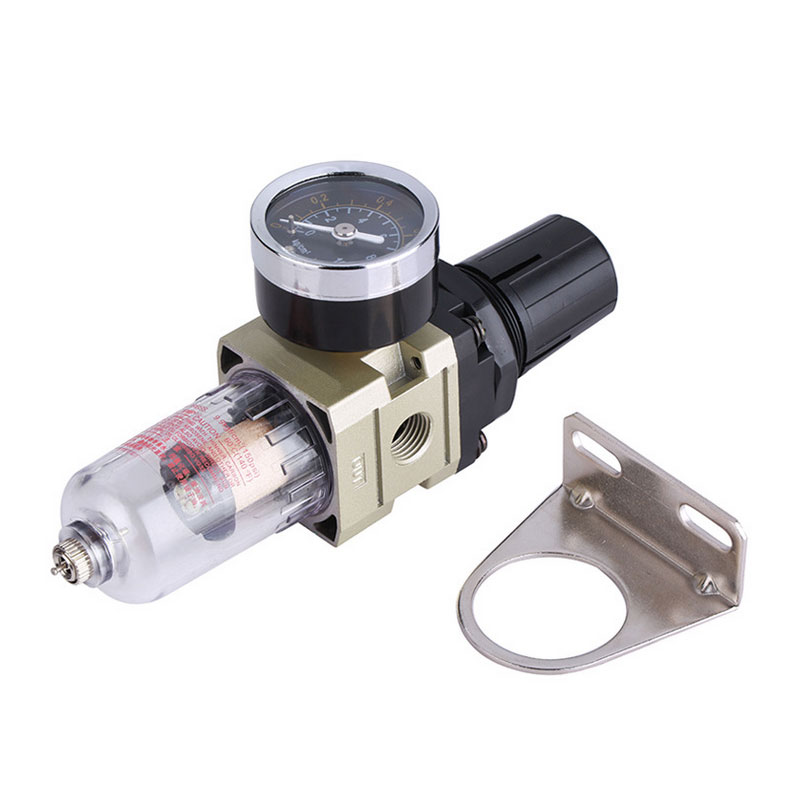

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for AW Air Regulator

AW Air Regulator can save space, required pipes is fewer, and saves installation costs. Pneumatic Air Regulator AR is made of solid material that can withstand high pressure and allows the user to operate a wide range of regulating pressure.

Installation and Maintenance for AW Air Regulator

Installation and use
1. When installing, please pay attention to cleaning the connecting pipes and joints, and avoid bringing dirt into the air piping.
2. When installing, please pay attention to whether the direction of air flow is consistent with the arrow direction on the body, and whether the pipe and the thread are correct.
3. Pressure adjustment: Pull up the pressure knob, rotate clockwise, and pressure rises, rotate counterclockwise, pressure drop. Adjust to the required pressure and press the pressure knob to be locked state.
4. Water discharge: When there is no air pressure, the water is automatically discharged. When there is air pressure, the drainage column will be pushed upward, then water discharged, after drainage, the drainage column will be released, the drainage column is automatically struck down, and the drainage ends. When the water level exceeds the upper limit, drain immediately, otherwise it will cause bad dehumidification.
5. Oil volume adjustment: Clockwise rotation of the needle valve reduces the amount of dripping oil, and counterclockwise rotation of the needle valve increases the amount of dripping oil. After adjust air flow and set the needle valve, the air flow rate is large, the amount of oil dropping is large; air flow is small, the amount of oil dropping is small.
6. Refueling method: can not close the air pipeline for refueling operations, turn the fuel screw counterclockwise, the volume should not exceed 80% of the cup when refueling. Screw up the fuel screw tightly after adding oil. Do not refueling directly when the oil bowl is unloaded.
Maintenance
1. Clean / replace the filter screen: remove the filter screen and use air to blow it from inside to outside, so that it can be reused.
2. Transparent PC bowl: Remove the PC bowl and wipe it with a clean dry cloth. Do not use any chemicals that will destroy the PC material to clean it.

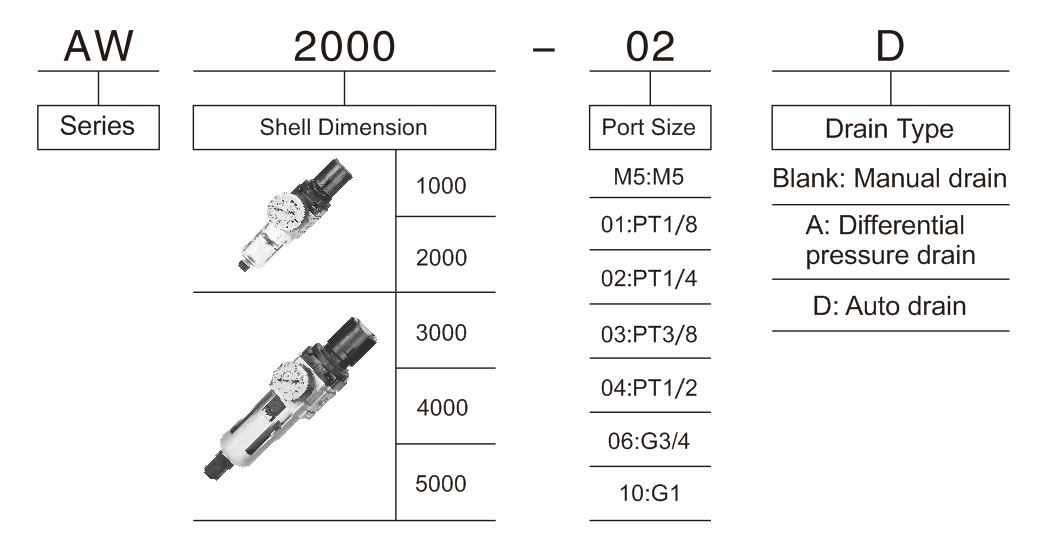

Ordering Code for AW Air Regulator

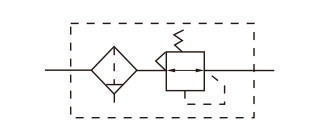

Symbol for AW Air Regulator

Technical Parameter for Air Pressure Regulator Filter AW Series

Model AW1000-02 AW2000-01 AW2000-02 AW3000-02 AW3000-03 AW4000-03 AW4000-04 AW4000-06 AW5000-06 AW5000-10
Port Size M5×0.8 PT1/8 PT1/4 PT1/4 PT3/8 PT3/8 PT1/2 PT3/4 G3/4 G1
Gauge Port Size M5×0.8 PT1/8 PT1/8 PT1/8 PT1/8 PT1/4 PT1/4 PT1/4 PT1/4 PT1/4
Rated Flow (L/min) 100 550 550 2000 2000 4000 4000 4500 5500 5500
Working Medium Compressed Air
Proof Pressure 1.5MPa
Filtration aperture 40μm(routine) or 5μm(customized)
Ambient temperature 5~60℃
Range of pressure regulation 0.05~0.7MPa 0.05~0.85MPa
Bracket (1) B120 B220 B320 B420
Pressure Gauge Y25-M5 Y40-01 Y50-02
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl Guide AW1000~AW2000: no; AW3000~AW5000: yes (iron)

Note: The rated flow is at the supply pressure of 0.7MPa.

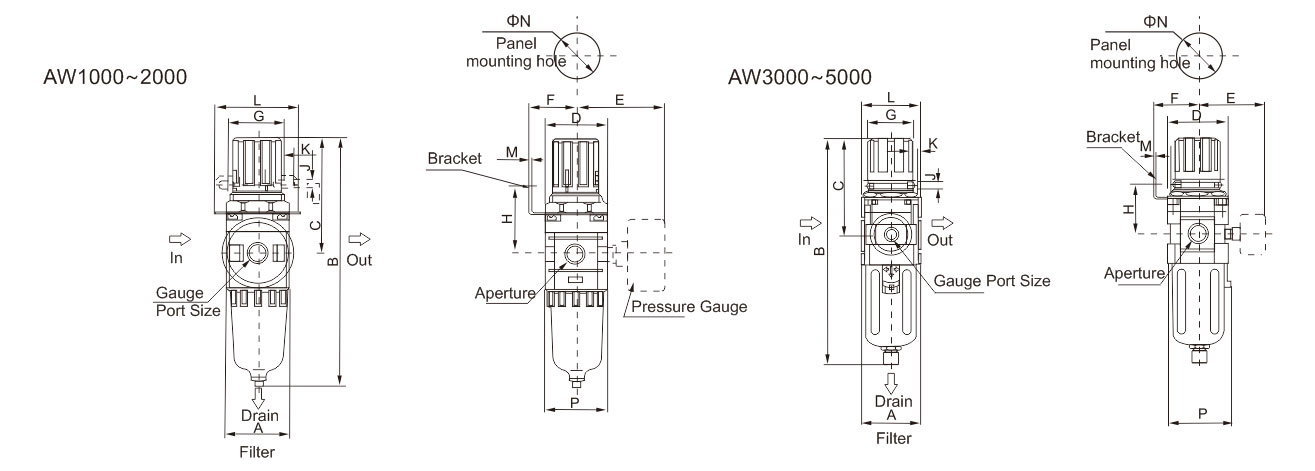

Overall Dimension

Model Aperture A B C D F G H J K L M ΦN P
AW1000 M5×0.8 25 109.5 50.5 25 25 38 30 4.5 6.5 40 2.0 20.5 28
AW2000 PT1/8,PT1/4 43 164.5 78 40 30 34 45 5.5 10.5 55 2.3 33.5 40
AW3000 PT1/4,PT3/8 53 211 92.5 53 41 41 46 6.5 8.0 53 2.3 42.5 56
AW4000 PT3/8,PT1/2 70 262.5 112 70 50 50 54 8.5 10.5 70 2.3 52.5 73
AW4000-06 G3/4 75 267 114 70 50 50 56 8.5 10.5 70 2.3 52.5 73
AW5000 G3/4,G1 90 345 115 90 50 70 62 9 12 70 2.3 52.5 75

Note: due to the different drainage components, the B values in the table will be slightly different. If necessary, please contact the sales department.
