Pneumatic Air Regulator SFR

SFR Air Regulator can regulate the air source to keep the air source in a constant state, which can reduce the damage the valve or actuator and other hardware due to the sudden change of the air source pressure.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Max. adjustable pressure: 0.85MPa

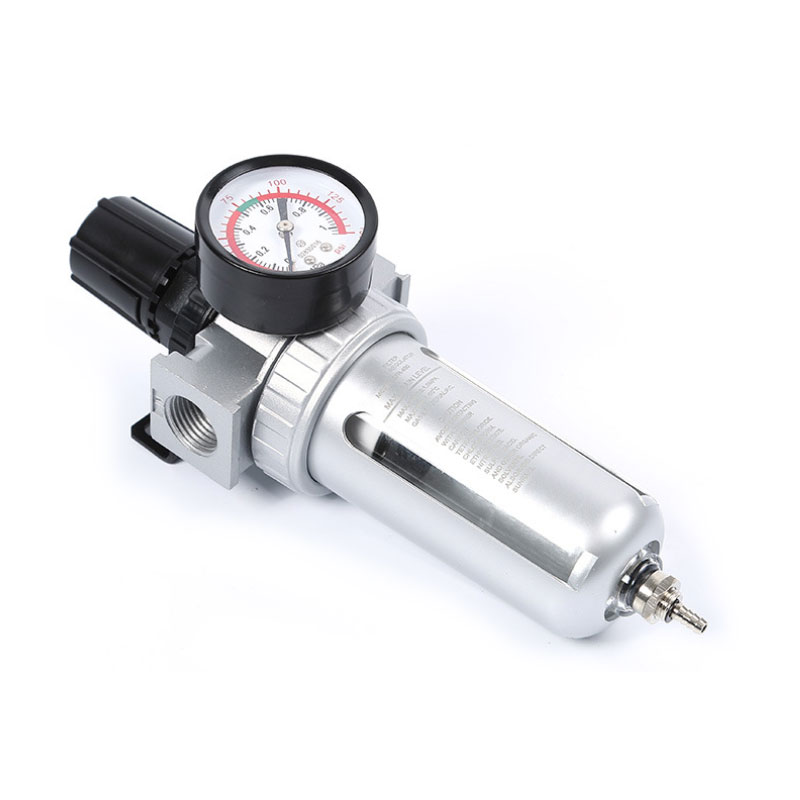

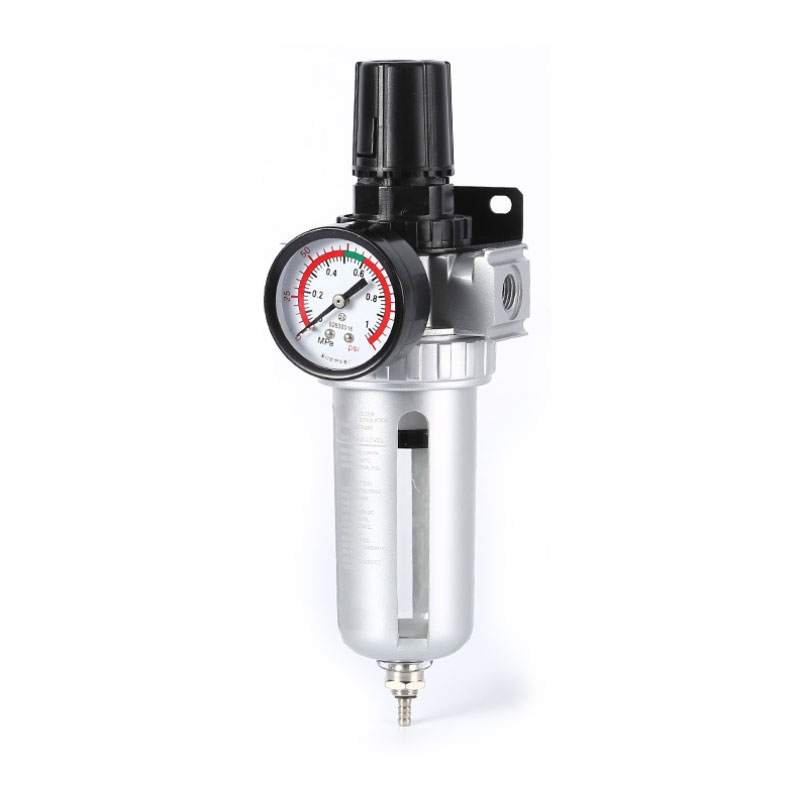

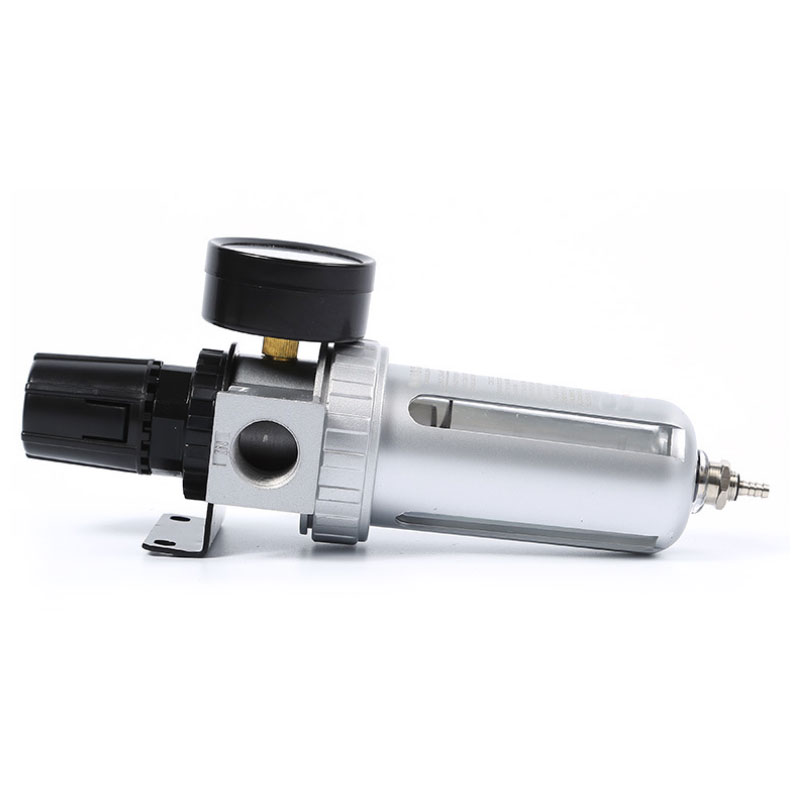

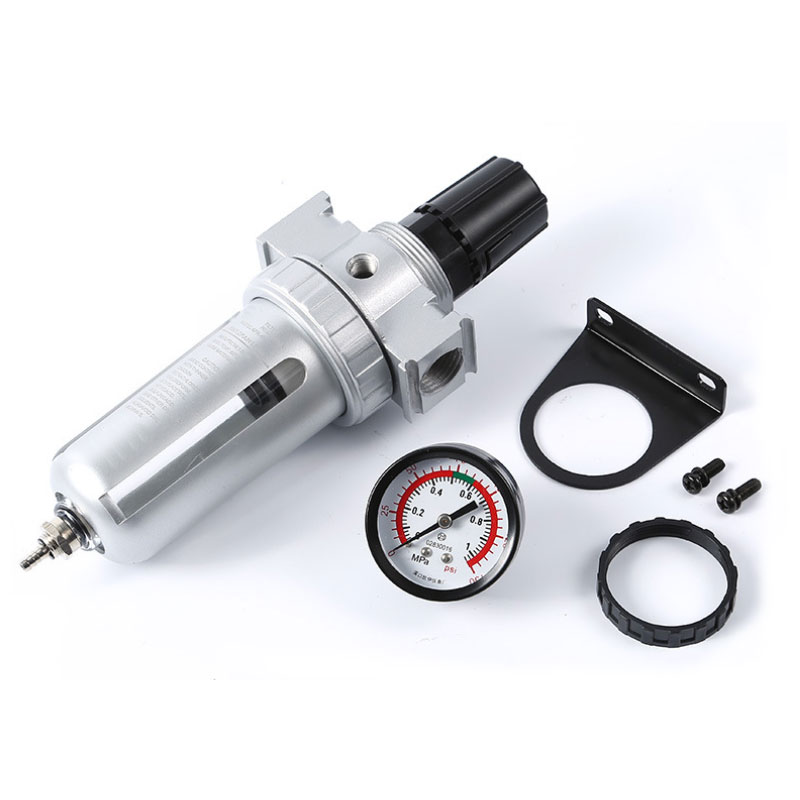

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for SFR Air Regulator

SFR Air Regulator can regulate the air source to keep the air source in a constant state, which can reduce the damage the valve or actuator and other hardware due to the sudden change of the air source pressure.
Pneumatic Air Regulator AR has light and compact structure, easy to install and use. The press-in self-locking mechanism prevents the setting pressure from being disturbed by external disturbances.
In order to make the pneumatic control system work normally, the following problems should be considered when selecting the Air Pressure Regulator: 1. Select the Air Pressure Regulator according to the working pressure, pressure regulation range, maximum flow rate and voltage regulation accuracy as required. 2. In the case where flammable, explosive and other people are not suitable for access, the external pilot type Air Pressure Regulator should be used. However, the remote control distance should not exceed 30m. 3. The Air Pressure Regulator is generally connected by the tube, special needs can also be connected by the plate. 4. For the convenience of operation, the Air Pressure Regulator is generally installed vertically, and the arrow is pointed to the tube according to the valve body, and the direction cannot be incorrectly installed. Do a good job of cleaning before installation. 5. When the Air Pressure Regulator is not in use, the handle should be loosened to prevent the diaphragm inside the valve from being deformed due to long-term stress.

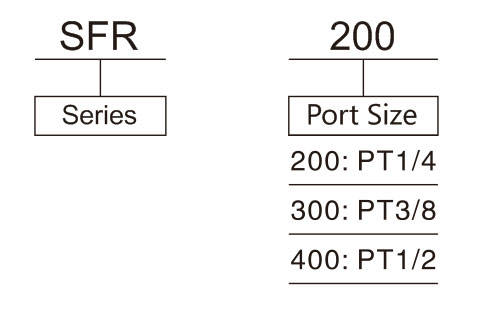

Ordering Code for SFR Air Regulator

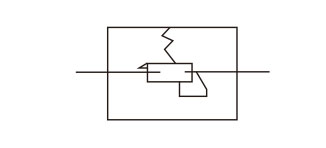

Symbol for SFR Air Regulator

Technical Parameter for SFR Air Regulator

Model SFR 200 SFR 300 SFR 400
Port Size PT1/4 PT3/8 PT1/2
Working Medium Compressed Air
Proof Pressure 1.5MPa
Max. adjustable pressure 0.85MPa
Operating Temperature Range 5~60℃
Filtration Aperture 40μm (routine) or 5μm (customized)
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide Plastics

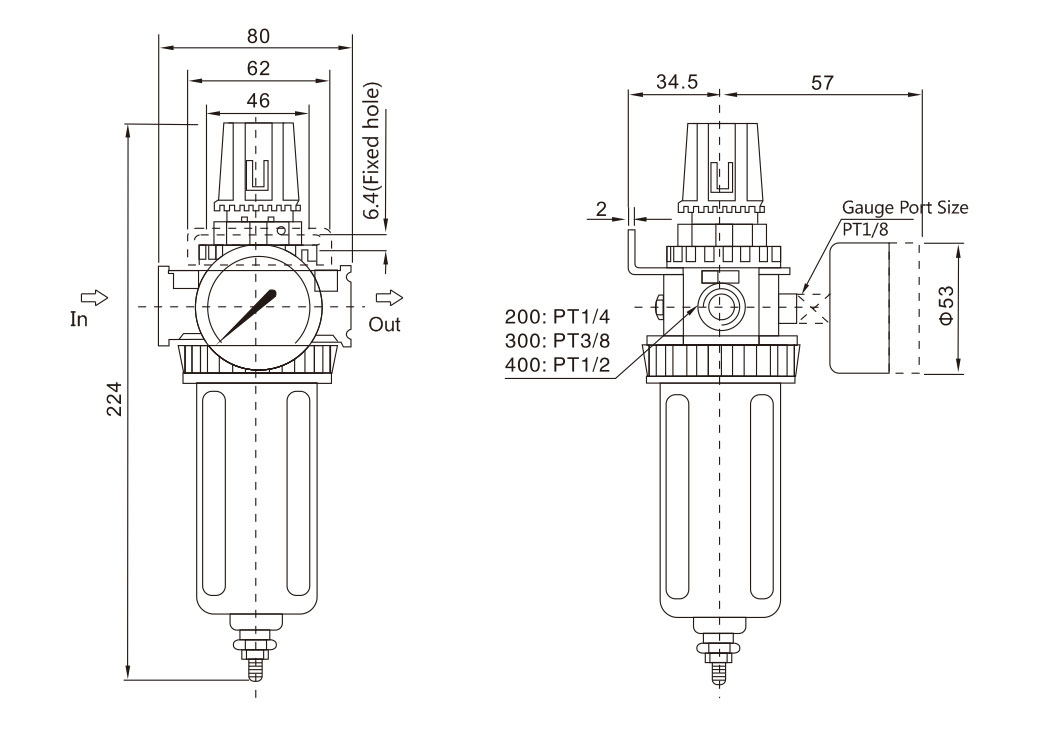

Overall Dimension
