Rodless Pneumatic Cylinder OSP-P

OSP-P Rodless Pneumatic Cylinder with stroke up to 10m, modular design, high adaptability and easy installation; metal-to-metal sealing system; The design stainless steel belt and dust-proof brush system makes it possible for the cylinder to operate normally in harsh environments.

Bore Sizes: 16,25,32,40,50,63,80
Stroke Lengths: 200,300,400,500,600,700,800,900,1000,1500,2000,3000,4000,6000mm
Operating Pressure: 0.16-0.7 MPa
Speed: 5-200mm/sec;200-4000mm/sec;10000mm/sec;
Working Environment Temperature: -10 to 80°C

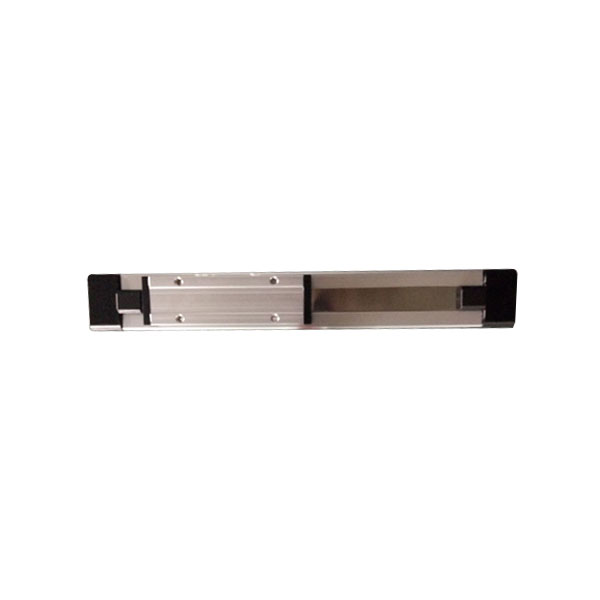

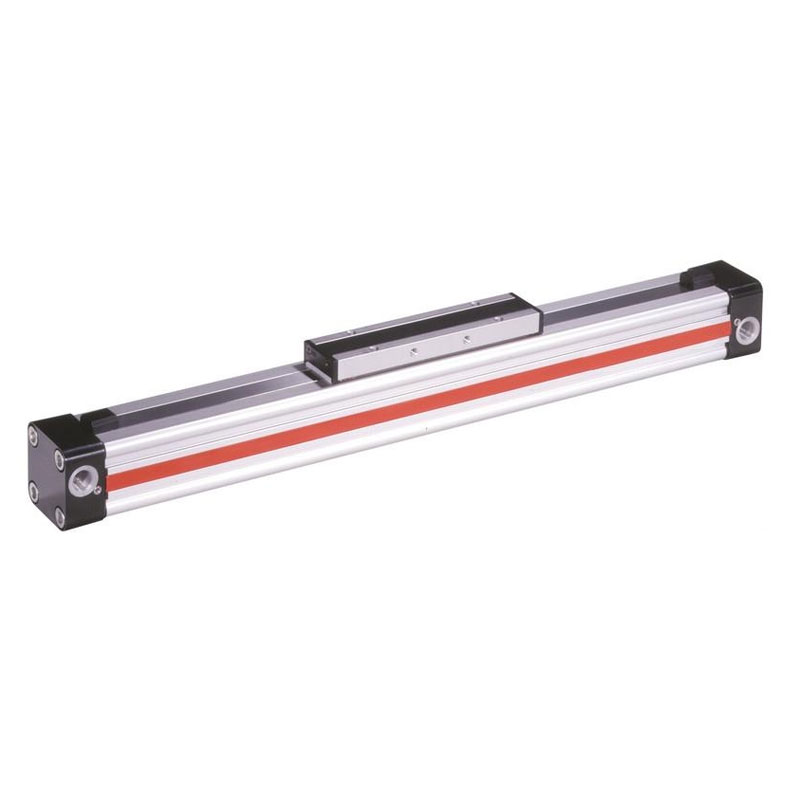

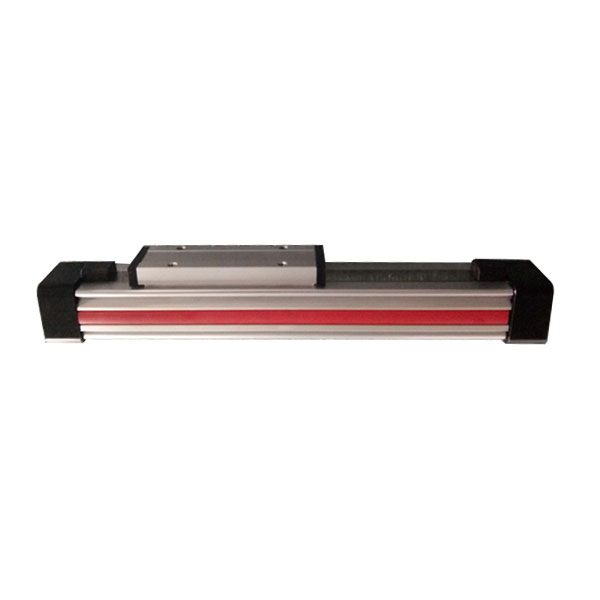

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Rodless Pneumatic Cylinder OSP-P

At present, the mechanical contact type Rodless Pneumatic Cylinder OSP is mainly used in the market, and a groove is opened in the axial direction of the cylinder tube, the piston and the slider move in the upper part of the groove. The gas is not leaked by the sealing of the cylinder.
In order to prevent leakage and dustproof, in the opening part, the polyurethane seal belt and the dustproof stainless steel belt are fixed on both ends of the cylinder head, and the piston frame passes through the groove to integrally connect the piston and the slider. The piston is connected with the slider to drive the actuator fixed on the slider to reciprocate. The characteristics of OSP Rodless Air Cylinder are:
Compared with ordinary cylinders, the 1/2 mounting position can be reduced under the same stroke;
There is no need to set up the anti-rotation mechanism;
Applicable to the cylinder diameter of 10 ~ 80mm, the large stroke can reach 7m when the cylinder diameter is ≥ 40mm;
The speed is high, the OSP Linear Guides Actuator standard type can reach 0.1~0.5m/s; the high speed type can reach 0.3~3.0m/s.
The disadvantages are: poor sealing performance, easy to leak; medium pressure type must be used when using three-position valve; the load force is small, in order to increase the load capacity, the guiding mechanism must be added.

Today, the Linear Guides Actuator has developed its own family, can be basically divided into: OSP Rodless Pneumatic Cylinder standard type, special type of clean room, explosion-proof rodless cylinder, integrated VOE valve rodless cylinder dual-drive type, SLIDELINE rail type, PROLINE rail type, STL rail type, KF rail type, HD heavy-duty rodless cylinder, active brake type, passive brake type, displacement measuring system type, P1Z magnetic rodless cylinder.

Brief Introduction for Rodless Pneumatic Cylinder OSP-P

OSP-P Rodless Pneumatic Cylinder with stroke up to 10m, modular design, high adaptability and easy installation; metal-to-metal sealing system; The design stainless steel belt and dust-proof brush system makes it possible for the cylinder to operate normally in harsh environments. Suitable for low-friction piston seals with optimized operating characteristics, OSP Linear Guides Actuator is guaranteed to run smoothly at speeds up to 0.005 m/s, at the same time of low speed movement , there is no creeping phenomenon in low speed movement. The standard non-contact magnetic piston is used for non-contact position sensing on three sides of cylinders. And the performance is reliable, easy to maintenance, light weight, easy to assemble.

Product Features for Rodless Pneumatic Cylinder OSP-P

OSP Linear Guides Actuator inner and outer steel strips are metal sealed, corrosion resistant and long service life (up to 8000km).
OSP Linear Guides Actuator cover can be rotated to 4*90 at any interface.
Three-sides dovetail groove, modular components, easy to assemble.
Dual function and adjustable end buffer.

Technical Parameters for Rodless Pneumatic Cylinder OSP-P

Bore Sizes: 16,25,32,40,50,63,80
Stroke Lengths: 200,300,400,500,600,700,800,900,1000,1500,2000,3000,4000,6000mm
Operating Pressure: 0.16-0.7 MPa
Speed: 5-200mm/s;200-4000mm/s;10000mm/s;
Working Environment Temperature: -10 to 80°C

Application Industry for Rodless Pneumatic Cylinder OSP-P

Wave soldering machine, automatic dispensing machine, silk pad printing machine, spraying equipment, flying knife device, automatic feeder, blow molding machine, blister machine and other industries.

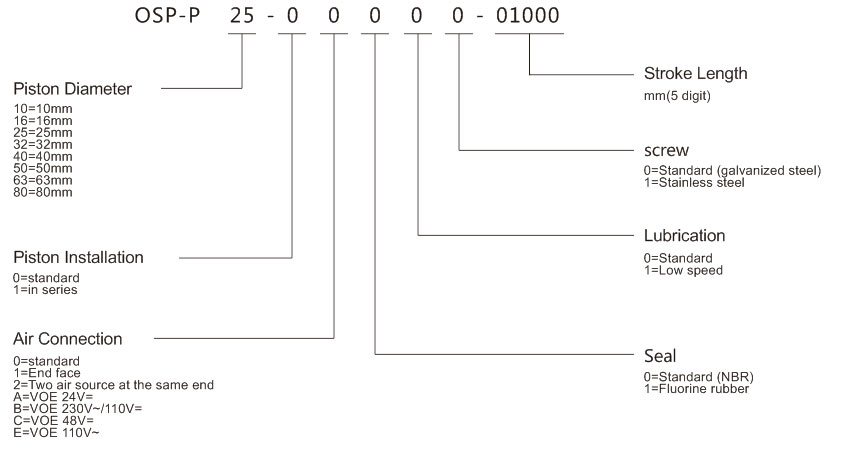

Ordering Code for Rodless Pneumatic Cylinder OSP-P


Load, Force and Torque for Rodless Pneumatic Cylinder OSP-P

Model
(mm)
Theoretical force at 6bar (N) Effective force FA at 6bar (N) Max torque Max load F
(N)
Buffer length
(mm)
Mx (N·m) My (N·m) Mz (N·m)
OSP-P10 47 32 0.2 1 0.3 20 2.5
OSP-P16 120 78 0.45 4 0.5 120 11
OSP-P25 295 250 1.5 15 3 300 17
OSP-P32 483 420 3 30 5 150 20
OSP-P40 754 640 6 60 8 750 27
OSP-P50 1178 1000 10 115 15 1200 30
OSP-P63 1870 1550 12 200 24 1650 32
OSP-P80 3016 2600 24 360 48 2400 39

Overall Dimension for Rodless Pneumatic Cylinder OSP-P

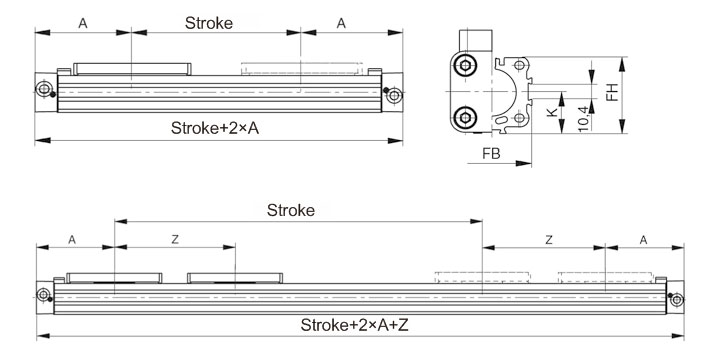

OSP-P10 OSP Rodless Air Cylinder

Model A K FB FH Z
OSP-P10  44.5 8.5 17 17 64

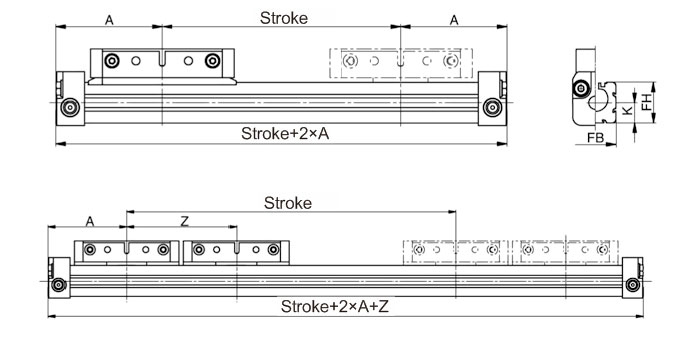

OSP-P16-P80 OSP Rodless Air Cylinder

Model A K FB FH Z
OSP-P16 65 15 30 27.2 81
OSP-P25 100 21.5 40 39.5 128
OSP-P32 125 28.5 52 51.7 170
OSP-P40 150 34 62 63 212
OSP-P50 175 43 76 77 251
OSP-P63 215 54 96 96 313
OSP-P80 260 67 122 122 384
