Standard Pneumatic Cylinder MB

MB Air Cylinder has no lubrication, oil-containing bearings are used. The piston rod need not be lubricated except for the fixed buffer. High temperature sealing material can make the cylinder work normally under the high temperature of 150 ℃.

Bore: 32, 40, 50, 63, 80, 100, 125mm
Motion Pattern: Double acting
Operating pressure: 0.05~1.0MPa
Piston speed: 50~1000mm/s(bore:32~100mm); 50~700mm/s(bore:125mm)
Ambient and fluid temperature: -10~+70°C

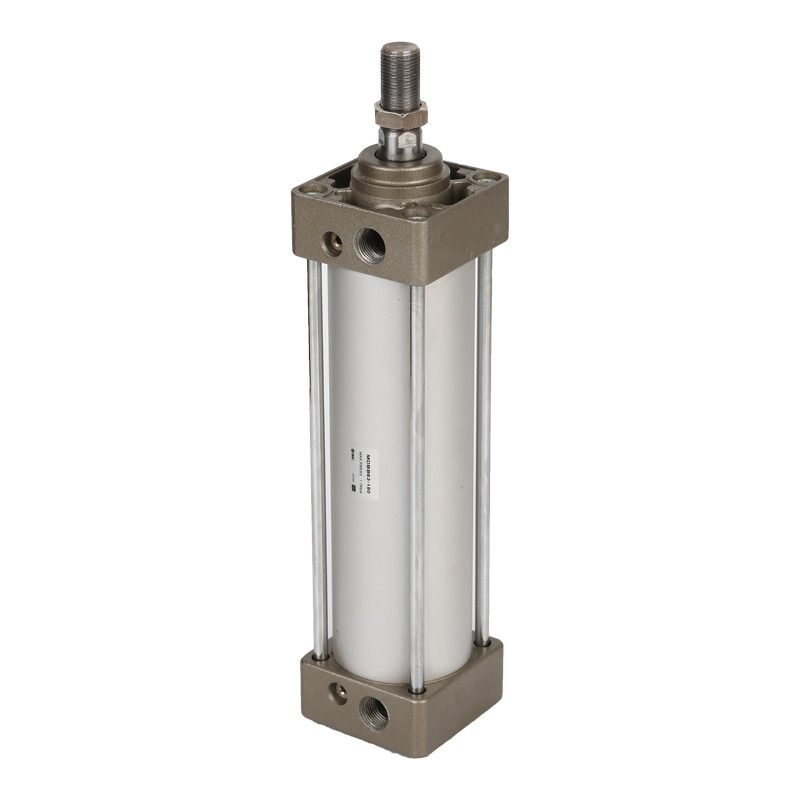

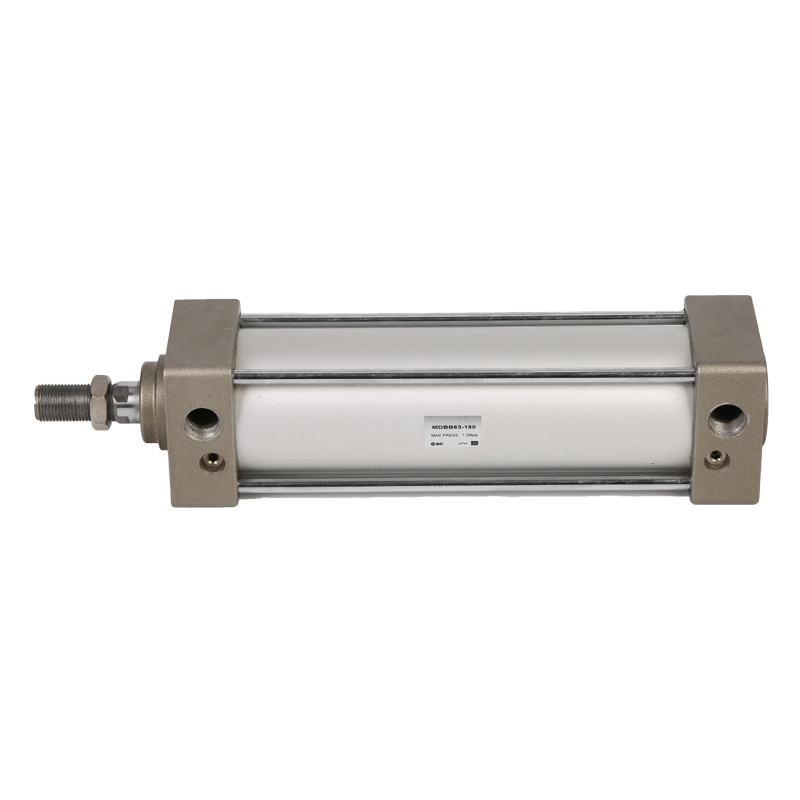

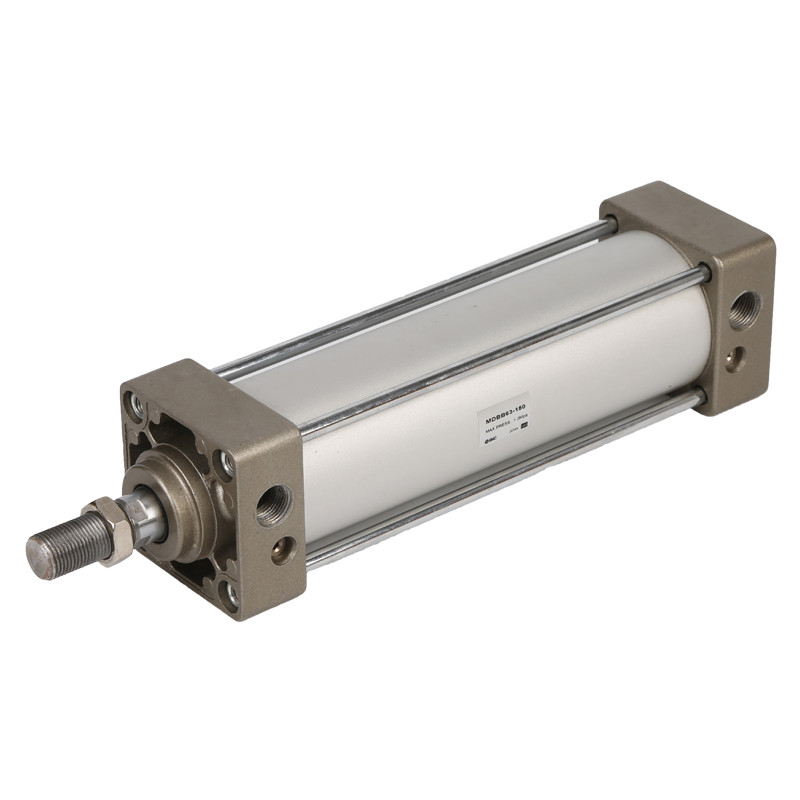

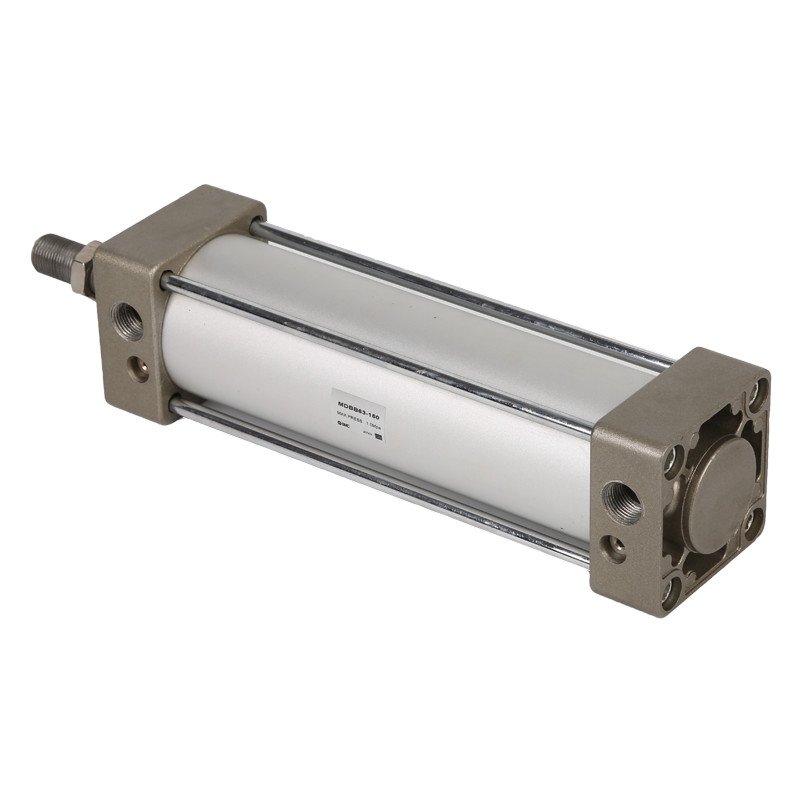

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MB Air Cylinder

Features of MB Air Cylinder and its installation accessories and connecting accessories:
1. No lubrication, oil-containing bearings are used. The piston rod need not be lubricated except for the fixed buffer. The cylinder terminal is also equipped with adjustable buffer, so that the MDB-Z Standard Cylinder can reverse stably without impact!
2. High temperature sealing material can be used for buffering and high temperature resistance, so that the Standard Cylinder can work normally under the high temperature of 150 ℃ (customers need to order from the company)
3. Various installation styles: A variety of installation accessories for customers to choose. A permanent magnet is mounted on the piston of the magnetic cylinder, which triggers the magnetic switch mounted on the cylinder to sense the motion of the MDB-Z Standard Cylinder.

Advantages for MDB-Z Standard Cylinder

1. Save installation time.
2. Improve installation accuracy.
3. Direct installation without any accessories.
4. Adjustable buffer can be added on the front and rear (φ16 pad buffer).

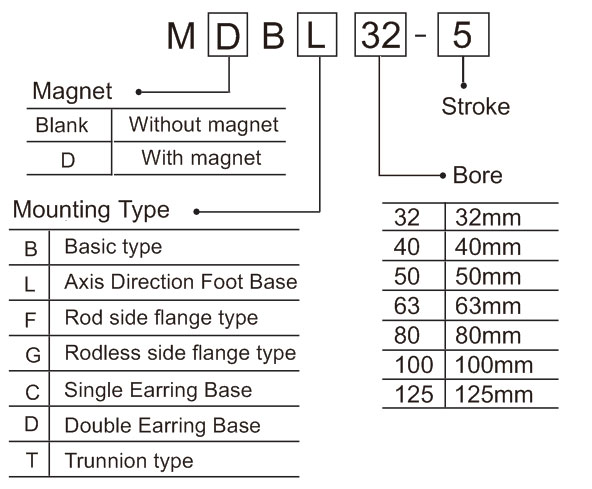

Ordering Code for MB Air Cylinder

Specification for MB Air Cylinder

Bore (mm) 32 40 50 63 80 100 125
Working Medium Air
Motion Pattern Double acting
Max. Operating Pressure 1.0MPa
Min. Operating Pressure 0.05MPa
Environment and fluid temp. Non-magnetic switch: -10℃~+70℃, Magnetic switch: -10℃~+60℃
Piston velocity mm/s 50~1000 50~700
Cushion Air Buffer on Both Sides
Stroke Tolerancemm -250: +1.0/0,251~1000: +1.4/0,1001~1500: +1.8/0
Lubrication Non-lube
Port Size 1/8 1/4 3/8 1/2

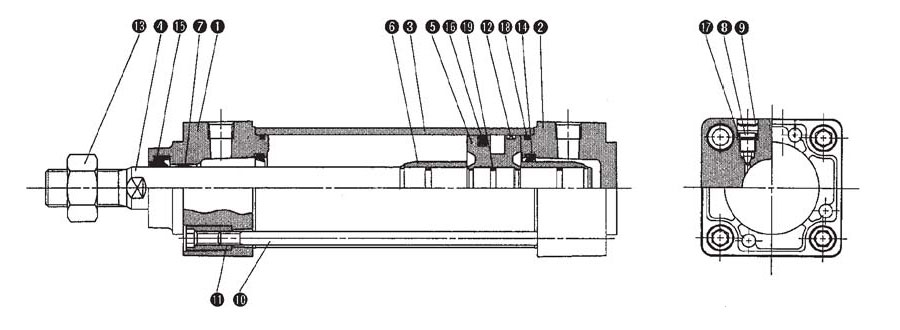

Construction drawing / Part drawing

Major parts

No. Item Material No. Item Material No. Item Material
1 Rod cover Die-casting aluminum 6 Cushion collar Brass 11 Pull-rod nut Carbon Steel
2 End cover Die-casting aluminum 7 Guide sleeve Cast lead bronze 12 Wearing Ring Resin
3 Cylinder barrel Aluminium Alloy 8 Buffer valve Steel 13 Piston rod nut Carbon Steel
4 Piston rod Carbon Steel 9 Retaining ring Steel 17 Buffer valve sealing ring NBR
5 Piston Aluminium Alloy 10 Pull rod Carbon Steel 19 Piston static seal ring NBR

Sealing Ring

No. Item Material Part No.
32 40 50 63 80 100
14 Buffer sealing ring NBR MC-16 MC-20 MC-25 MC-25 MC-30 MC-35
15 Piston rod sealing ring PDU-12Z PDU-16Z PDU-20Z PDU-20Z PDU-25Z PDU-30Z
16 Piston sealing ring PPD-32 PPD-40 PPD-50 PPD-63 PPD-80 PPD-100
18 Cylinder static seal ring MB-32-16-C1247 MB-40-16-C1248 MB-50-16-C1247 MB-63-16-C1247 MB-80-16-C1247 MB-100-16-C1247
Seal ring assembly type MB32-PS MB40-PS MB50-PS MB63-PS MB80-PS MB100-PS

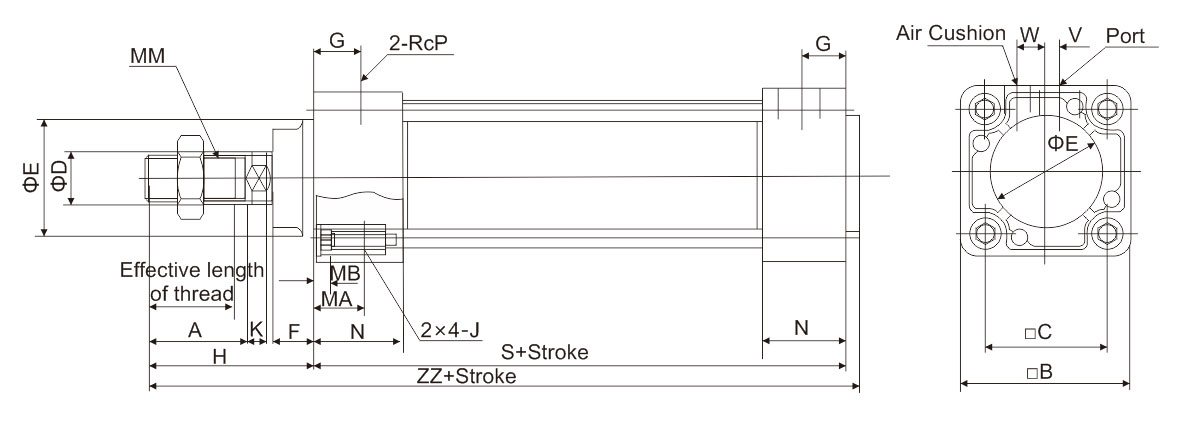

Dimension (mm) for Standard Cylinder MB Series

Bore Stroke Stroke length A □B □C ΦD ΦE F G MA MB J K MM N P S V W H ZZ
32 ~500 19.5 22 46 32.5 12 30 13 13 16 4 M6×1.0 6 M10×1.25 27 1/8 84 4 6.5 47 135
40 ~500 27 30 52 38 16 35 13 14 16 4 M6×1.0 6 M14×1.5 27 1/4 84 4 9 51 139
50 ~600 32 35 65 46.5 20 40 14 15.5 16 5 M8×1.25 7 M18×1.5 31.5 1/4 98 5 10.5 58 156
63 ~600 32 35 75 56.5 20 45 14 16.5 16 5 M8×1.25 7 M18×1.5 31.5 3/8 98 9 12 58 156
80 ~800 37 40 95 72 25 45 20 19 16 5 M10×1.5 10 M22×1.5 38 3/8 114 11.5 14 72 190
100 ~800 37 40 114 89 30 55 20 19 16 5 M10×1.5 10 M26×1.5 38 1/2 114 17 15 72 190
125 ~1000 50 54 136 110 32 60 27 19 20 6 M12×1.75 13 M27×2.0 38 1/2 120 17 15 97 223
