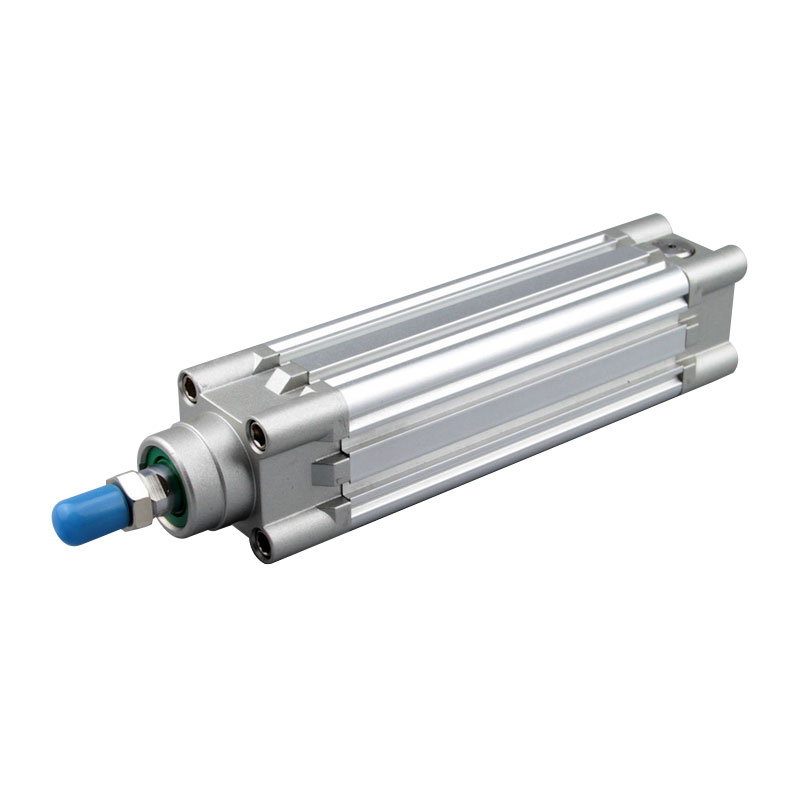

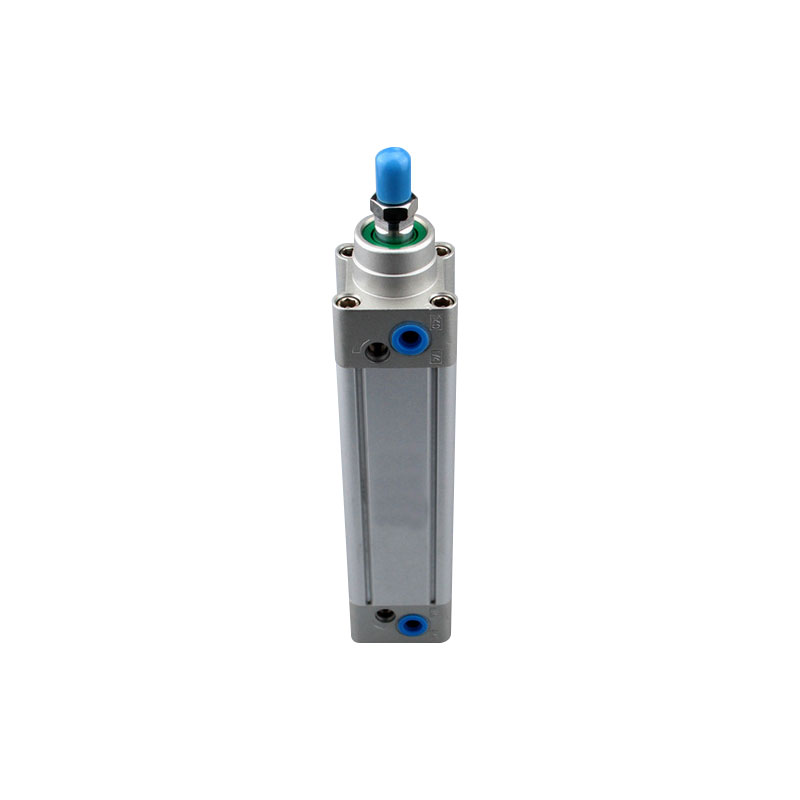

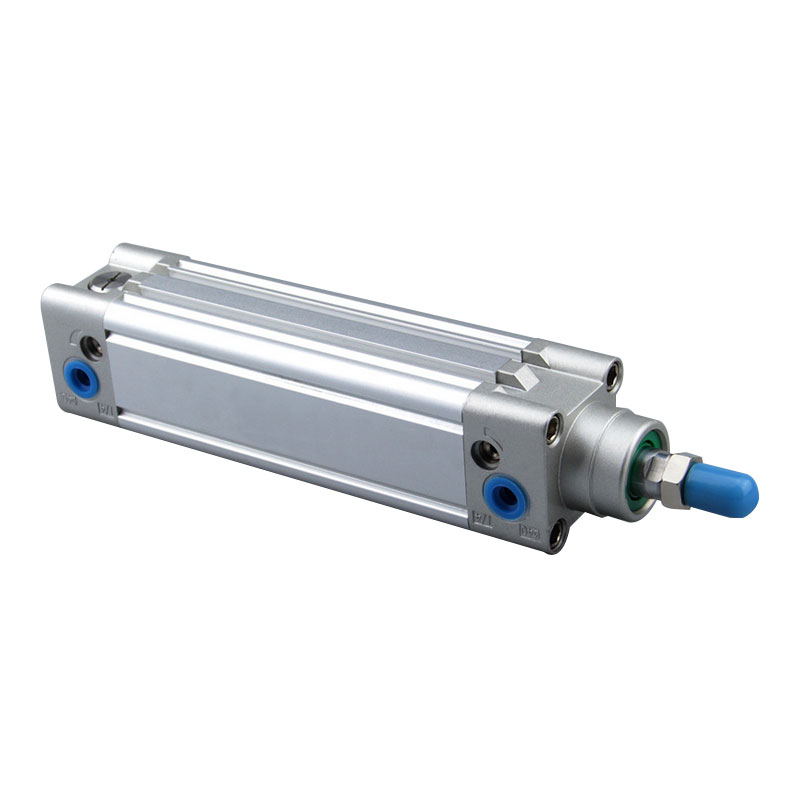

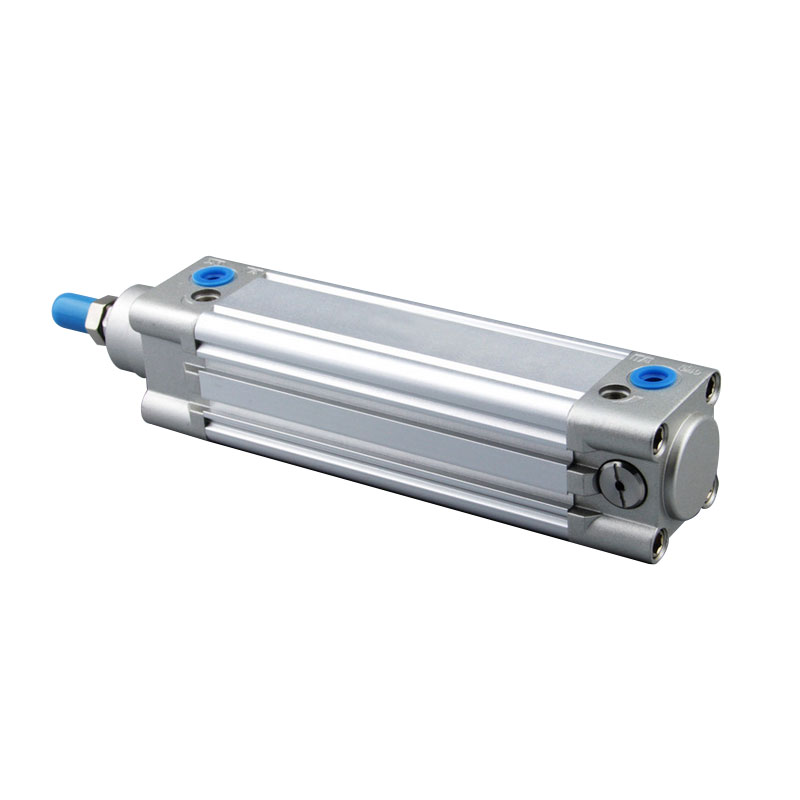

Standard Pneumatic Cylinder DNC

Seal ring of DNC Standard Cylinder adopts two Y-type one-way sealing structure, with compensation function, long service life and low starting pressure. It is square cylinder barrel, no rod, good corrosion resistance, buffer adjustment for cylinders.

Bore: 32, 40, 50, 63, 80, 100, 125mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 50~800mm/s
Ambient and fluid temperature: -5~+70°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for DNC Standard Cylinder

Seal ring of DNC Standard Cylinder adopts two Y-type one-way sealing structure, with compensation function, long service life and low starting pressure. It is square cylinder barrel, no rod, good corrosion resistance, buffer adjustment for cylinders; A variety of cylinder and cylinder installation accessories are available for customers to choose.
DNC Standard Cylinder can work normally without lubrication oil. The motion pattern is double-acting, piston type structure. Piston can be magnetic or not. The maximum operating pressure is 1.0MPa, the temperature range is -20~80℃, and the buffering mode is elastic buffer.
DNC ISO15552 Cylinder is highly standardized, its outline and installation dimensions are in line with international standards and many national standards, it is more convenient to replace different brands of cylinders. In the aspect of performance design, a series of functions can be extended by replacing related components, which is more convenient in practical application.

Product Features for DNC Standard Cylinder

DNC standard cylinder is beautiful in design, saving 11% of the space compared with the conventional cylinder.
There are two sensor grooves on the three sides of the ISO15552 Cylinder for position sensing.
The proximity sensors can be flush mounted in the sensor grooves and can be replaced by installing components without changing their position.
The installation accessories are various, so that the ISO15552 Cylinder can be installed in almost any place. The front and rear end covers are screwed directly on the cylinder barrel, and the hexagonal fixing screws with internal threads are used for the components installation.
The sensor groove can be sealed by the groove cover to make the cylinder surface smoother and protect the sensor cable, prevent foreign objects from entering the sensor groove.
In the case of higher speed or faster frequency, the auxiliary buffer ring helps to further absorb energy.

Specification for DNC Standard Cylinder (ISO15552 Cylinder)

Bore 32 40 50 63 80 100 125
Motion Pattern FDouble-acting
Working Medium Filtered air
Proof Pressure 1.5MPa
Max. Operating Pressure 1.0MPa
Min. Operating Pressure 0.1MPa
Buffer Air Buffer (standard)
Ambient temperature -5~70℃
Operating Speed 50~800mm/s
Port Size G1/8 G1/4 G3/8 G1/2

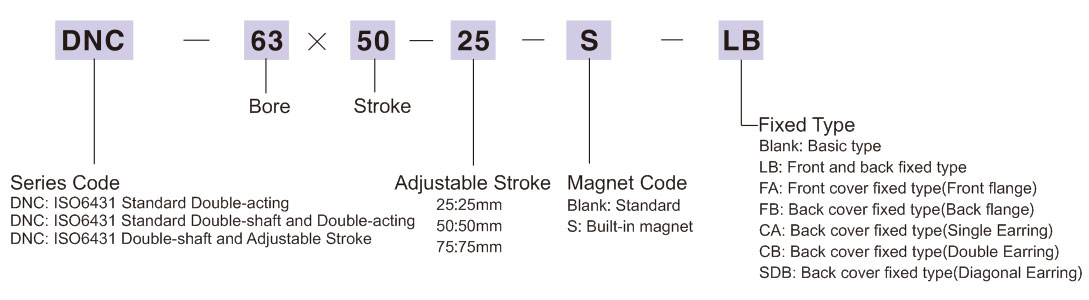

Ordering Code for DNC Standard Cylinder (ISO15552 Cylinder)

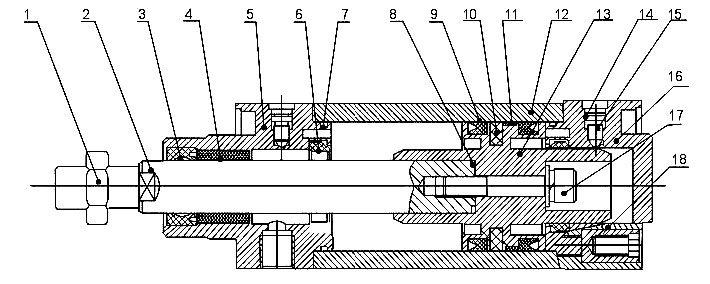

Inner structure for DNC Standard Cylinder (ISO15552 Cylinder)

No. Item No. Item No. Item No. Item
1 Piston rod nut 2 Piston rod nut 11 Wearing ring 12 Cylinder barrel
3 Front cover dust ring 4 Oil bearing 13 Piston 14 Buffer needle seal ring
5 Front cover 6 Buffer seal ring 15 Buffer adjustment needle 16 Back cover
7 Tube wall 8 Piston rod seal ring 17 Hex socket screw 18 End cap retaining nut
9 Piston 10 Magnet (optional)

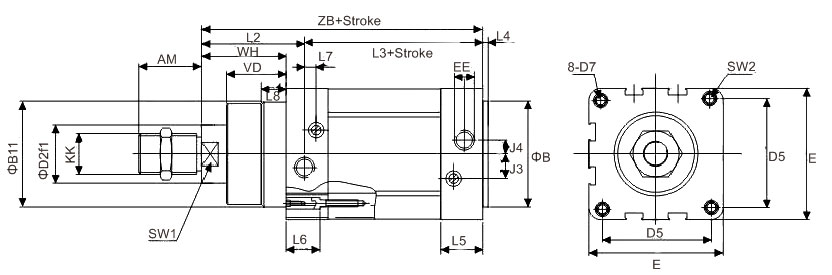

Dimension (mm)

Basic type

Bore AM B D2 D5 D7 E EE(G) J3 J4 KK L2 L3 L4 L5 L6 L7 L8 SW1 SW2 VD WH ZB
32 22 30 12 32.5 M6 45 1/8 6 5.2 M10x1.25 41.6 62.8 4 26 16 3.3 10 10 6 16 26 120
40 24 35 16 38 M6 54 1/4 8 6 M12x1.25 44 77 4 29.6 16 3.6 10.5 13 6 20 30 135
50 32 40 20 46.5 M8 64 1/4 10 8.5 M16x1.5 51 78 4 30 17 5.1 11.5 17 8 27 37 143
63 32 45 20 56.5 M8 75 3/8 12.4 10 M16x1.5 54 87 4 35.6 17 6.6 15 17 8 27 37 158
80 40 45 25 72 M10 93 3/8 12.5 8 M20x1.5 64.4 95.2 4 35.9 17 10.5 15.7 22 10 34.7 46 174
100 40 55 25 89 M10 110 1/2 11.8 10 M20x1.5 69.8 100.4 4 39 17 8 19.2 22 10 38.2 51 189
125 54 60 32 110 M12 134 1/2 13 8 M27x2 83 24 6 44.7 22 14 20.5 27 12 46 65 225

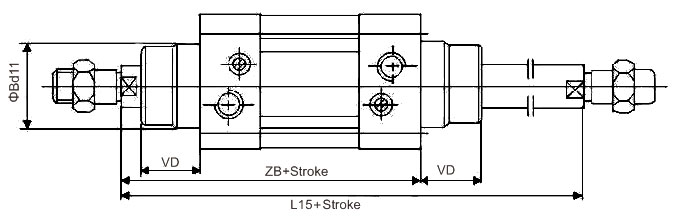

Double piston rod type

Bore 32 40 50 63 80 100
B 30 35 40 45 45 55
L15 46 165 180 195 200 240
VD 16 20 27 27 34.7 38.2
ZB 120 135 143 153 174 189
