Compact Pneumatic Cylinder ADVU

ADVU Compact Pneumatic Cylinder Compared with ISO15552, ISO6432 standard cylinders, ADVU Compact Air Cylinder has the same force, can save 50% space. Conforms to the specific type of the ATEX directive and can used in potentially explosive working environments.

Bore Sizes: 16,25,32,40,50,63,80,100
Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,200,300mm
Operating Pressure: 0.13-1.0 MPa
Speed:30~800mm/s;
Working Environment Temperature: -10 to 80°C

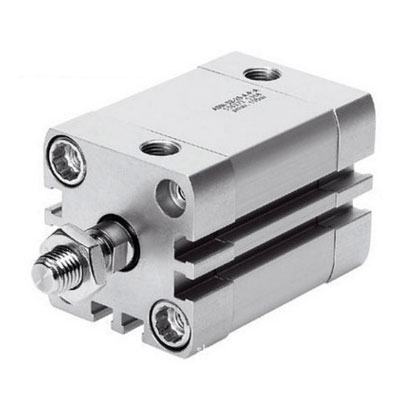

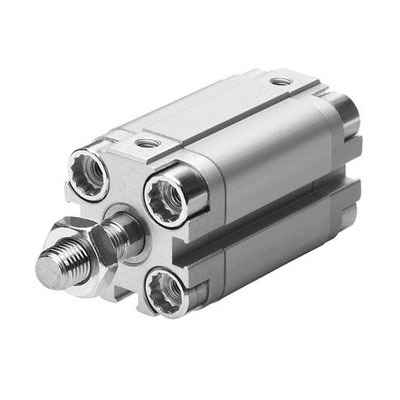

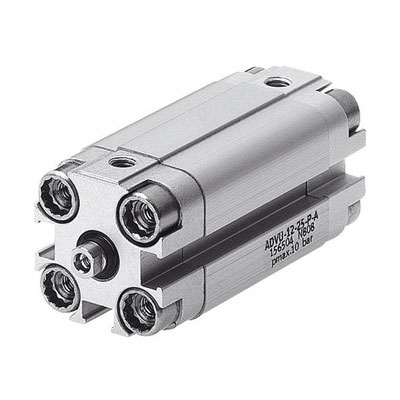

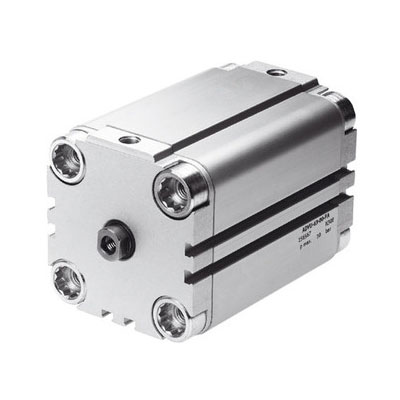

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: 0086+13356192265
What’sApp: 13356192265

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for ADVU Compact Air Cylinder

ADVU double-acting Compact Air Cylinder
AEVU single-acting push type Compact Air Cylinder
AEVUD single-acting pull type Compact Pneumatic Cylinder
ADVU Compact Pneumatic Cylinder Compared with ISO15552, ISO6432 standard cylinders, ADVU Compact Air Cylinder has the same force, can save 50% space. Conforms to the specific type of the ATEX directive and can used in potentially explosive working environments.

Overview for ADVU Compact Air Cylinder

Bore Sizes: 16,25,32,40,50,63,80,100
Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,200,300mm
Operating Pressure: 0.13-1.0 MPa
Speed:30~800mm/s;
Working Environment Temperature: -10 to 80°C

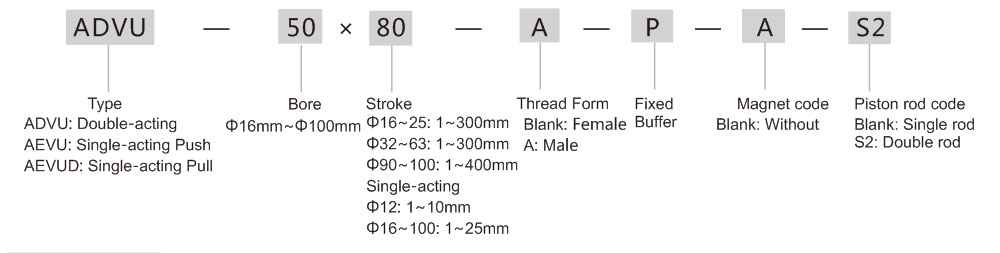

Ordering Code of ADVU Cylinder (equivalent to FESTO ADVU Cylinder)

Specification of ADVU Cylinder (equivalent to FESTO ADVU Cylinder)

Bore 16 20 25 32 40 50 63 80 100
Motion Pattern Double-acting (Single rod / double rod)
Working Medium Filtered compressed air
Proof Pressure 1.5MPa
Operating pressure range ADVU-P-A 0.12~1.0MPa 0.1~1.0MPa 0.08~1.0MPa 0.06~1.0MPa
ADVU-P-A-S2 0.13~1.0MPa 0.12~1.0MPa 0.1~1.0MPa 0.8~1.0MPa
Environment and fluid temp -20~80℃
Port size M5 G1/8+ G1/4+
Piston thread Inner thread M4 M5 M6 M8 M10 M12
Outer thread M8 M10×1.25 M12×1.25 M16×1.25 M20×1.25
Buffer Rubber Buffer

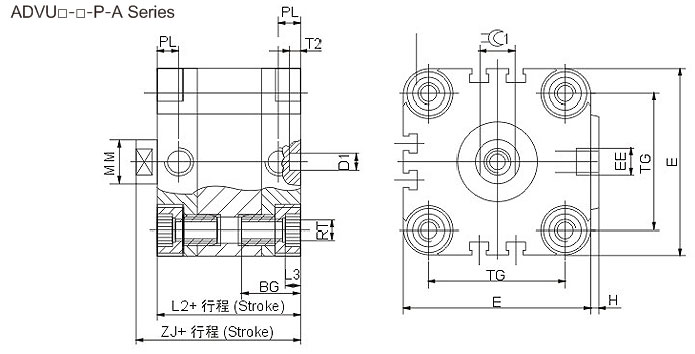

Overall Dimension of ADVU Cylinder (equivalent to FESTO ADVU Cylinder)

Note:
When mounting 12 and 16mm cylinders from the upper, the two mounting screws are diagonal, or use non-magnetic screws. Stroke length +2= min. rotary depth

Bore(mm) D1 E EE H L2 L3 L4 MM PL RT T2 TG ZJ CC1
16 6 29 M5 1 38 4 18.5 8 8 M4 4 18 41 6
20 6 35.5 M5 1.5 38 4 18.5 10 8 M5 4 22 41 8
25 6 39.5 M5 1.5 39.5 4 18.5 10 8 M5 4 26 43.5 9
32 6 49.5 G1/8 2 44.5 5 22 12 8 M6 4 32 49.5 10
40 6 59.5 G1/8 2.5 45.5 5 22 12 8 M8 4 42 51 10
50 6 68 G1/8 2.8 46.5 6 22 16 8 M8 4 50 53 14
63 8 86 G1/8 4 50 8 26 16 8 M10 4 62 56 14
80 8 108 G1/8 4 58 8 26 20 8.5 M10 4 82 62 17
100 8 128 G1/4 5 66.5 8 26 35 10.5 M10 4 103 76.5 22
