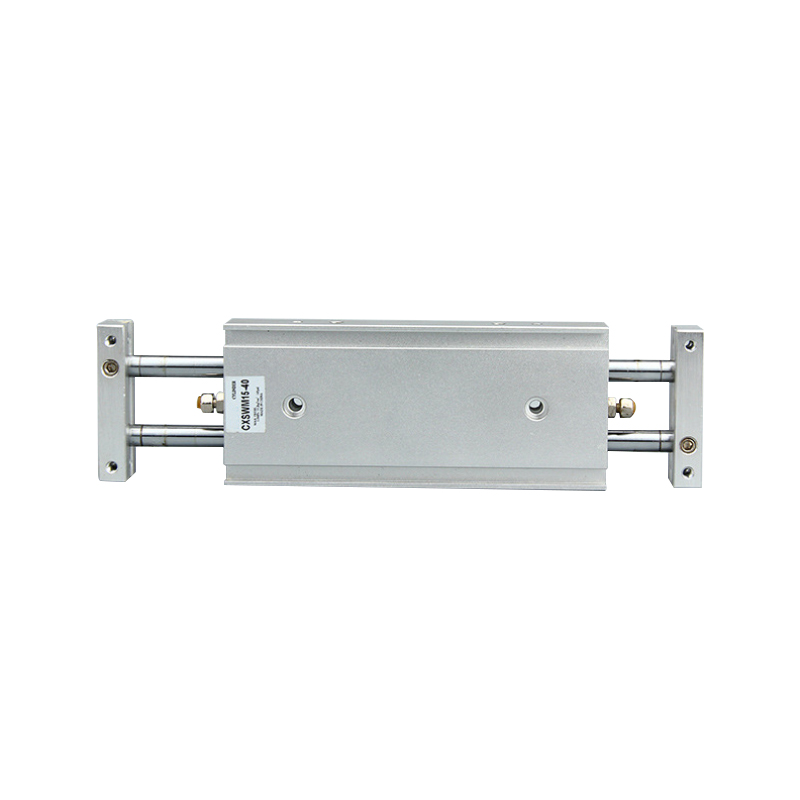

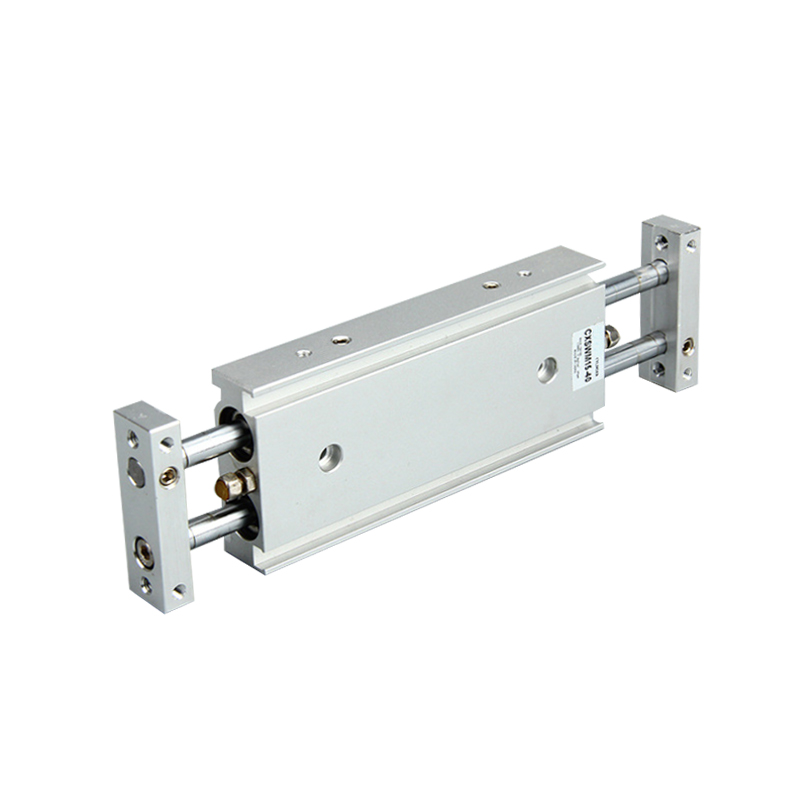

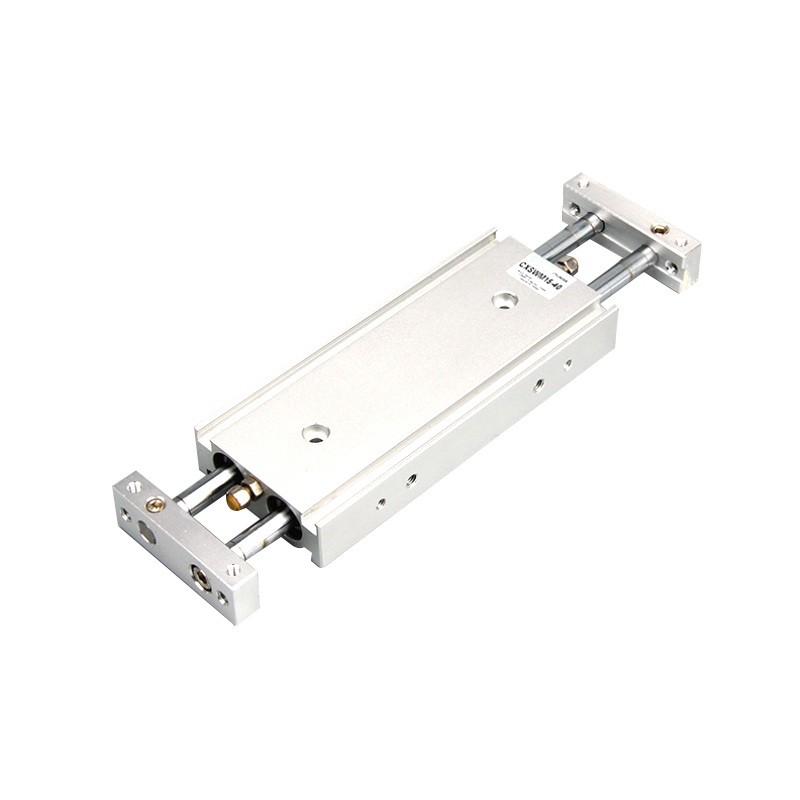

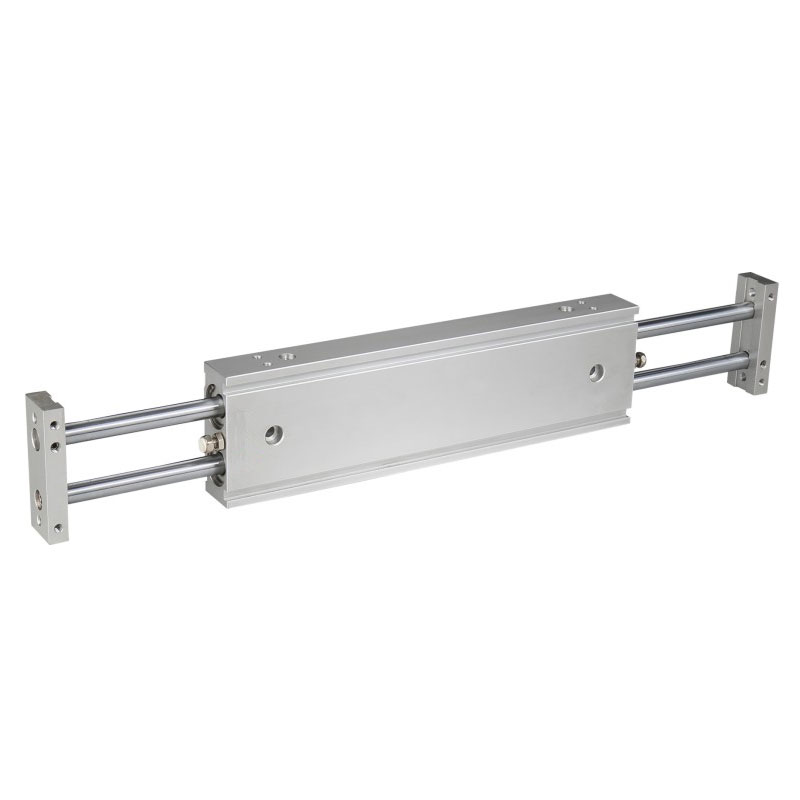

Double Rod Air Cylinder CXSW

CXSW Double Rod Cylinder has a thin double cylinder structure, high non-rotation accuracy and 2 times output force, has strong resistance to side load. CXSW Double Rod Cylinder is a dual piston, double rod actuator with a non-rotating accuracy of ± 0.1°.

Bore: 6, 10, 15, 20, 25, 32mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.7MPa
Piston speed: 50~500mm/s
Ambient and fluid temperature: -10~+60°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for CXSW Double Rod Cylinder

CXSW Double Rod Cylinder has a thin double cylinder structure, high non-rotation accuracy and 2 times output force, has strong resistance to side load. CXSW Double Rod Cylinder is a dual piston, double rod actuator with a non-rotating accuracy of ± 0.1°. The CXSWL high precision ball bushing bearing type allows for smooth operation that ensures stable travel resistance.

Product Features for CXSW Double Rod Cylinder

The maximum allowable load is 2~3 times larger than that of the CXS series.
Double cylinder design, 2 times output force
High non-rotating accuracy
Lateral load resistance is strong
Standard stroke adjustment device: 0~-10mm.

Specification for CXSW Double Rod Cylinder

Bore（mm） 6 10 15 20 25 32
Working Medium Air
Motion Pattern Double-acting
Max. Operating Pressure 0.7MPa
Min. Operating Pressure 0.15MPa 0.1MPa
Ambient and fluid temperature -10~+60℃ (No Freezing)
Cushion Both Side Rubber
Piston speed 50~500mm/s
Structure Dual Cylinder (2 times output force)
Lubrication Non-lube
Stroke adjustment range 0~-10mm
Bearing Sliding bearing / Ball bearing
Port Size M5×0.8 Rc1/8

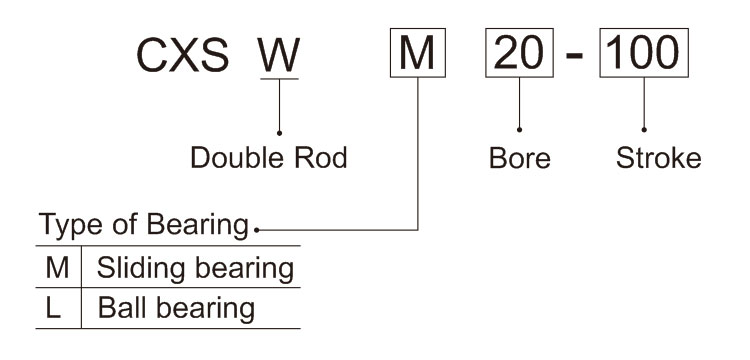

Ordering Code for CXSW Double Rod Cylinder

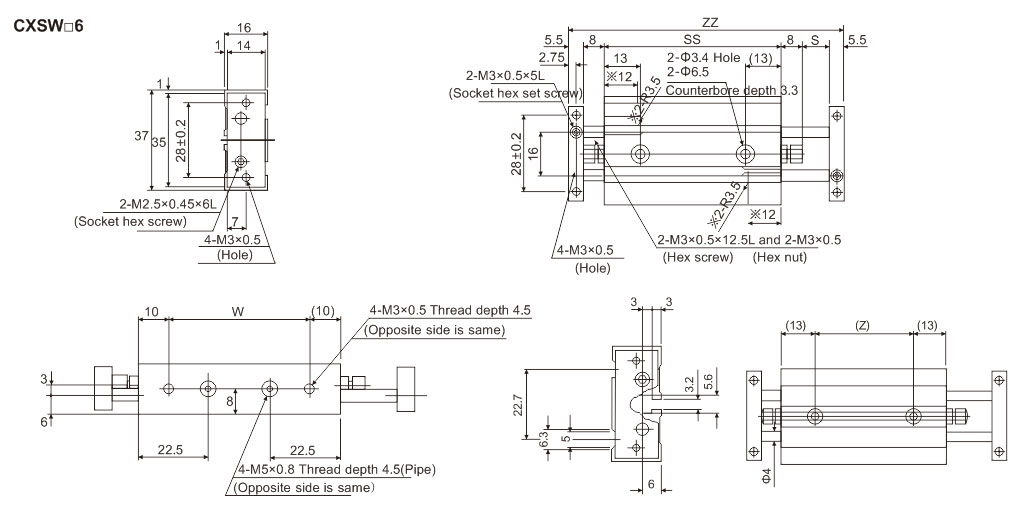

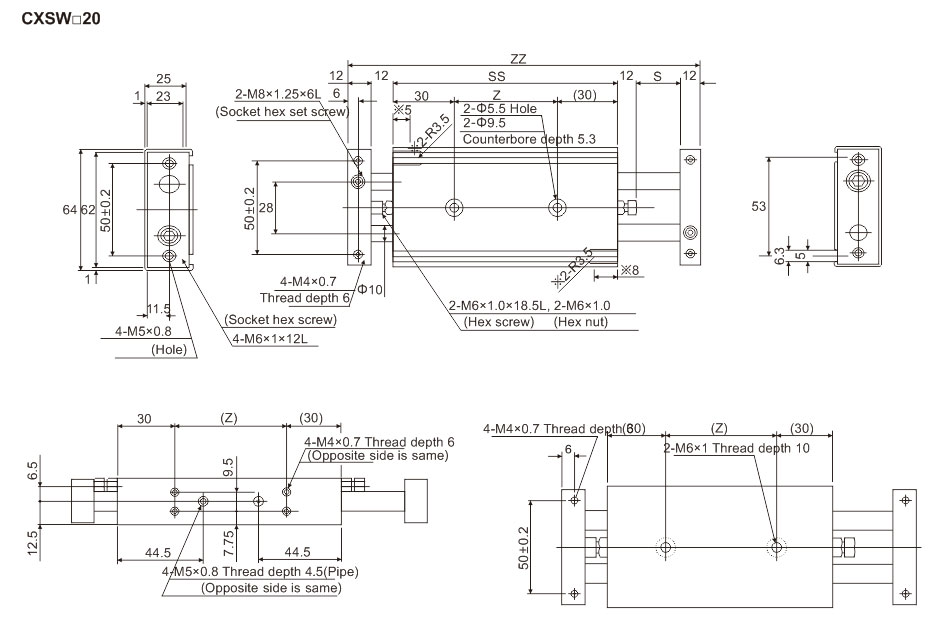

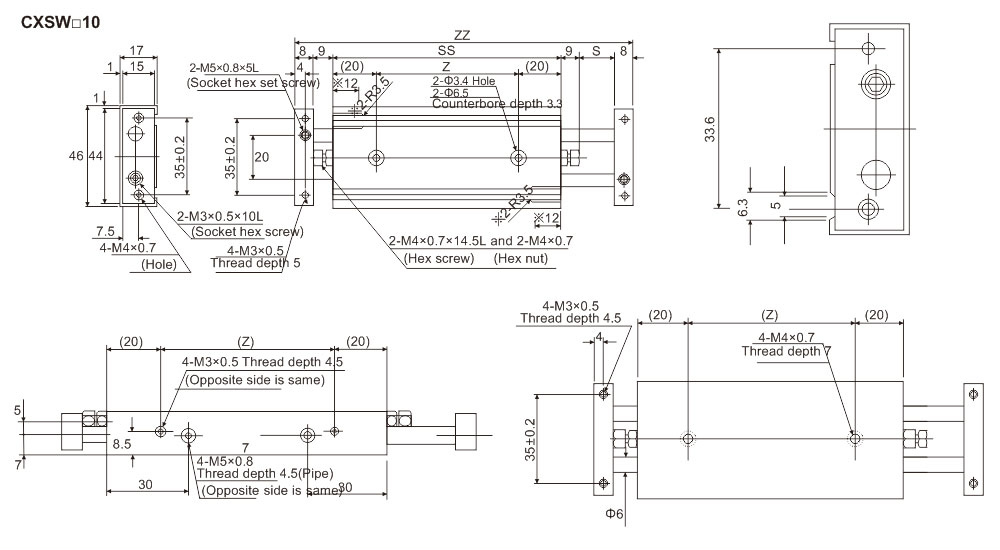

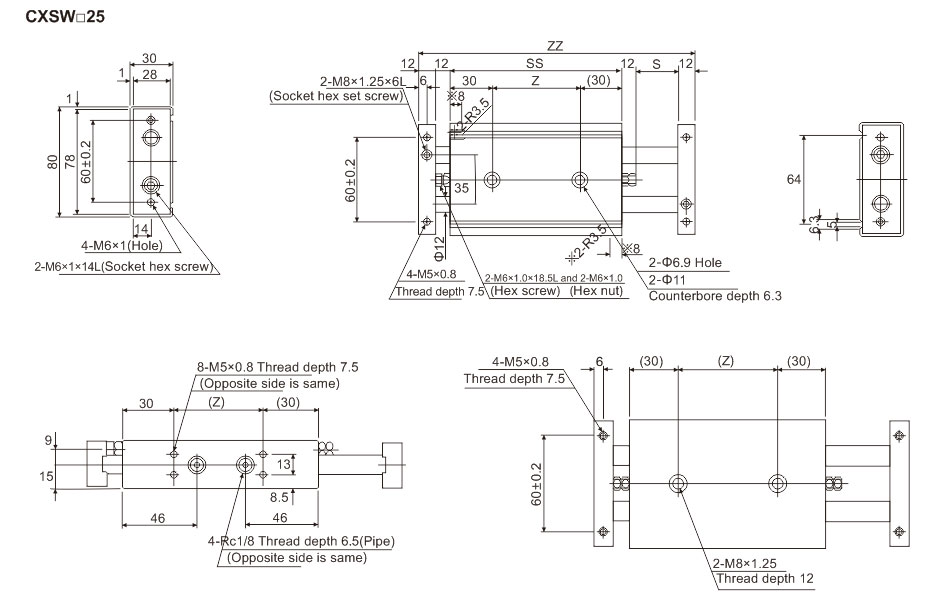

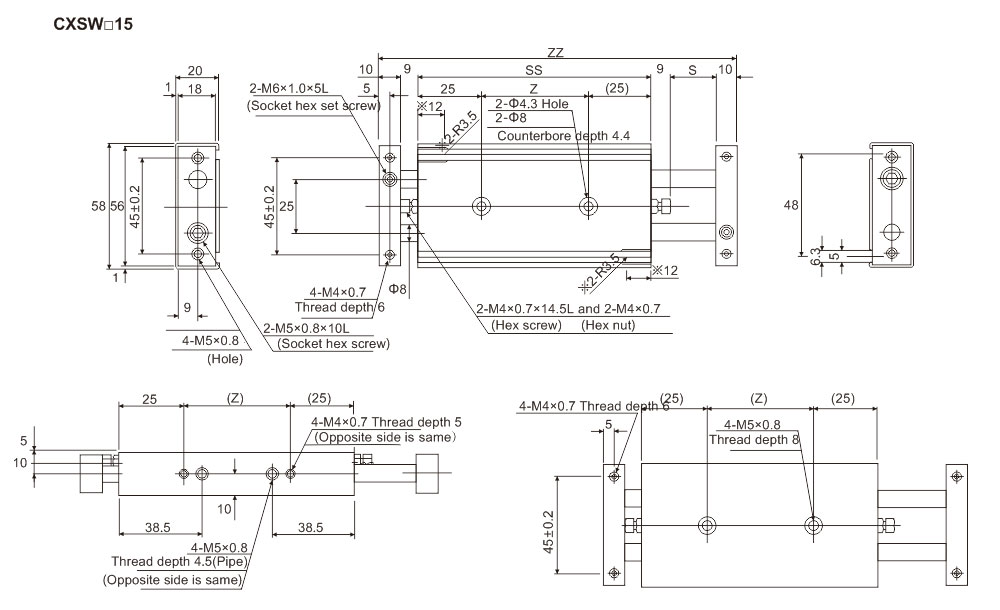

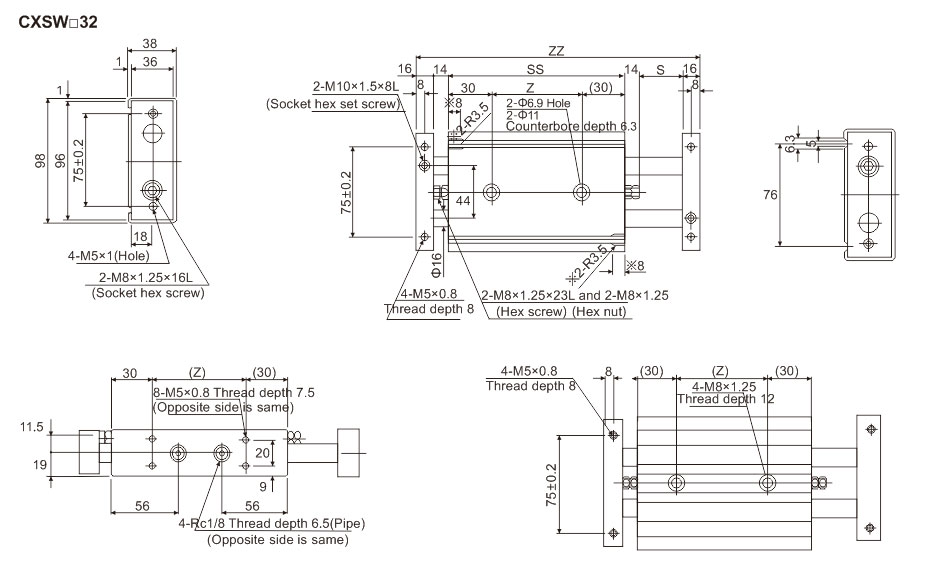

Dimension (mm) for CXSW Double Rod Cylinder

Model S SS ZZ Z W
CXSW□6-10 10 66 103 40 46
CXSW□6-20 20 76 123 50 56
CXSW□6-30 30 86 143 60 66
CXSW□6-40 40 96 163 70 76
CXSW□6-50 50 106 183 80 86

In order to install magnetic switch of CXSW□6-10 and CXSW□6-20, cut off the part that fixes the magnetic switch groove. (Size of the marked *)


 Model S SS ZZ Z
Standard Stroke CXSW□10-10 10 92 136 52
CXSW□10-20 20 102 156 62
CXSW□10-30 30 112 176 72
CXSW□10-40 40 122 196 82
CXSW□10-50 50 132 216 92
Long Stroke
(-XB11)		 CXSW□10-75 75 157 226 117
CXSW□10-100 100 182 316 142
CXSW□10-125 125 207 366 167
CXSW□10-150 150 232 416 192

In order to install magnetic switch of CXSW□10-10 and CXSW□10-20, cut off the part that fixes the magnetic switch groove. (Size of the marked *)


 Model S SS ZZ Z
Standard Stroke CXSW□15-10 10 105 153 55
CXSW□15-20 20 115 173 65
CXSW□15-30 30 125 193 75
CXSW□15-40 40 135 213 85
CXSW□15-50 50 145 233 95
Long Stroke
(-XB11)		 CXSW□15-75 75 170 283 120
CXSW□15-100 100 195 333 145
CXSW□15-125 125 220 383 170
CXSW□15-150 150 245 433 195

In order to install magnetic switch of CXSW□15-10 and CXSW□15-20, cut off the part that fixes the magnetic switch groove. (Size of the marked *)


 Model S SS ZZ Z
Standard Stroke CXSW□20-10 10 120 178 60
CXSW□20-20 20 130 198 70
CXSW□20-30 30 140 218 80
CXSW□20-40 40 150 238 90
CXSW□20-50 50 160 258 100
CXSW□20-75 75 185 308 125
CXSW□20-100 100 210 358 150
Long Stroke
(-XB11)		 CXSW□20-125 125 235 408 175
CXSW□20-150 150 260 458 200
CXSW□20-175 175 285 508 225
CXSW□20-200 200 310 558 250

In order to install magnetic switch of CXSW□20-10 and CXSW□20-20, cut off the part that fixes the magnetic switch groove. (Size of the marked *)


 Model S SS ZZ Z
Standard Stroke CXSW□25-10 10 122 180 62
CXSW□25-20 20 132 200 72
CXSW□25-30 30 142 220 82
CXSW□25-40 40 152 240 92
CXSW□25-50 50 162 260 102
CXSW□25-75 75 187 310 127
CXSW□25-100 100 212 360 152
Long Stroke
(-XB11)		 CXSW□25-125 125 237 410 177
CXSW□25-150 150 262 460 202
CXSW□25-175 175 287 510 227
CXSW□25-200 200 312 560 252

In order to install magnetic switch of CXSW□25-10 and CXSW□25-20, cut off the part that fixes the magnetic switch groove. (Size of the marked *)


 Model S SS ZZ Z
Standard Stroke CXSW□32-10 10 143 113 83
CXSW□32-20 20 153 133 93
CXSW□32-30 30 163 253 103
CXSW□32-40 40 173 273 113
CXSW□32-50 50 183 293 123
CXSW□32-75 75 208 343 148
CXSW□32-100 100 233 393 173
Long Stroke
(-XB11)		 CXSW□32-125 125 258 443 198
CXSW□32-150 150 283 493 223
CXSW□32-175 175 308 543 248
CXSW□32-200 200 333 593 273

In order to install magnetic switch of CXSW□32-10 and CXSW□32-20, cut off the part that fixes the magnetic switch groove. (Size of the marked *)
