Standard Pneumatic Cylinder SC

SC Standard Cylinder is the most commonly used Standard Cylinder in China. It is the most cost-effective, economical and convenient to install a variety of accessories. SC Standard Cylinder is suitable for use in a variety of different industries, specifically for use on dust removal devices.

Bore: 32, 40, 50, 63, 80, 100mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s
Ambient and fluid temperature: -20~80℃

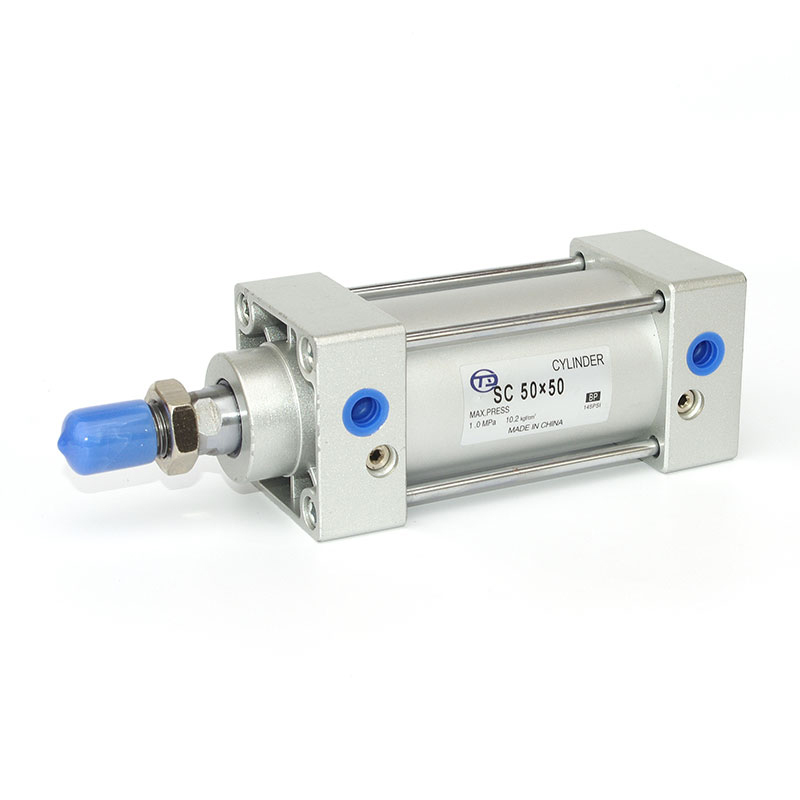

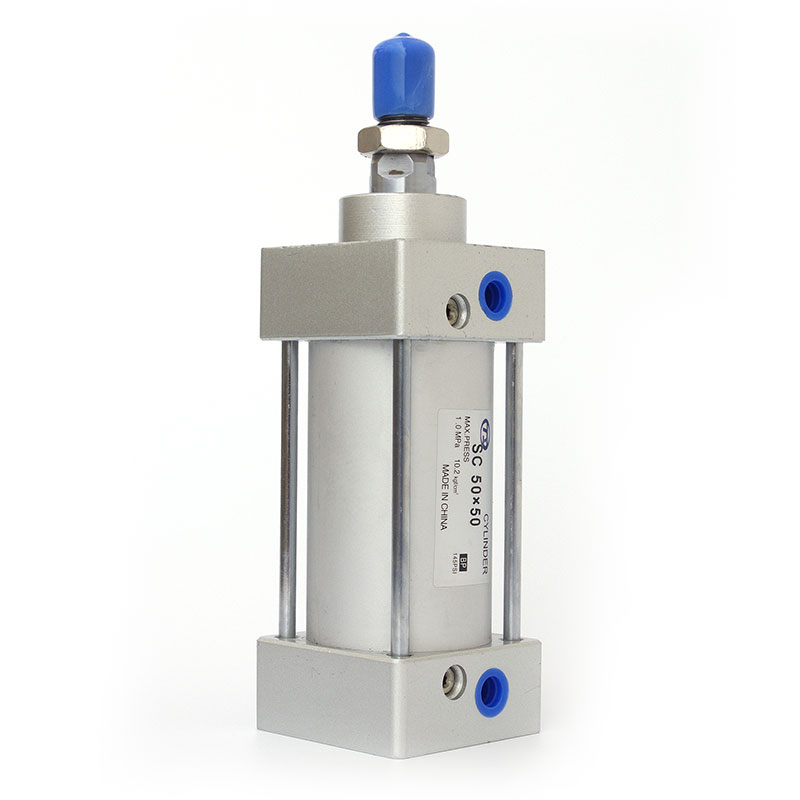

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for SC Standard Cylinder

SC Standard Cylinder is the most commonly used Standard Cylinder in China. The reason why it is favored by the majority of enterprises is that it is the most cost-effective, economical and convenient to install a variety of accessories. SC Standard Cylinder is suitable for use in a variety of different industries, specifically for use on dust removal devices. The SC Standard Air Cylinder is usually equipped with lifting valves and electromagnetic pulse valves.
TAIXI can design and manufacture cylinders of different bore according to customer's detailed requirements and actual needs, as well as different stroke cylinders, cylinder flanges, single-eared and double-eared, as well as cylinder standard rods and cylinder lengthened rods and other configuration parts.

Product Feature of SC Standard Cylinder

1. The enterprise standard cylinder
2. Piston seal with special-shaped two-way sealed structure, compact size, with oil storage function;
3. For the rod-type cylinder, front and rear cover and aluminum tube cylinder with a pillar connection, good reliability;
4. Compared with ISO15552 Standard Cylinder, with the cylinder diameter SC series cylinder length is small;
5. The buffer adjustment of SC Standard Air Cylinder is smooth;
6. A variety of specifications of the SC Standard Air Cylinder and cylinder installation accessories available for customers to choose to use;
7. Select the high temperature sealing material, can ensure normal work of the cylinder at 150 ℃.

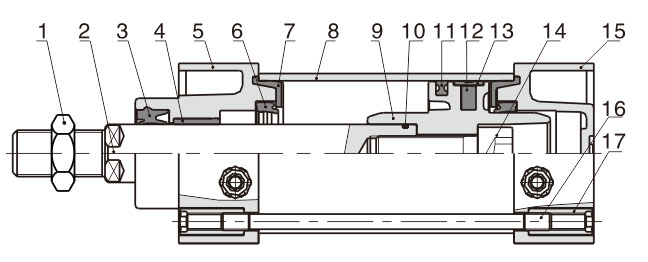

Inner structure and material of major parts

No. Name Material No. Name Material
1 Nut Carbon Steel 10 Piston rod O-ring NBR
2 Piston rod S45C Durionise Grinding Rod 11 Piston O-ring NBR
3 Front Cover O-ring TPU 12 Magnet Plastic
4 Bushing Wear Material 13 Wearing Ring Wear Material
5 Front Cover Aluminium Alloy 14 Hex Socket Bolt Carbon Steel
6 Buffer O-ring NBR 15 Back Cover Aluminium Alloy
7 Buffer Gasket TPU 16 Pillar Carbon Steel
8 Aluminum Tube Aluminium Alloy 17 Pillar Nut Carbon Steel
9 Piston Aluminium Alloy


Specification of SC Standard Cylinder

Bore (mm) 32 40 50 63 80 100
Motion Pattern Double-acting
Working Medium Air (Filtered by 40 μm filter mesh)
Fixed type SC Basic-type FA-type FB-type CA-type CB-type LB-type TC-type TF-type
SCD, SCJ Basic-type FA-type LB-type TC-type TF-type
Operating pressure range 0.1~1.0MPa(14~145Psi)
Proof Pressure 1.5MPa(215Psi)
Working Temperature -20~80℃
Operating Speed Range 30~800mm/s
Stroke Tolerance Range 0~250(+1.0/0), 251~1000(+1.4/0), 1001~1500(+1.8/0)
Buffer Type Adjustable buffer
Buffer Stroke mm 21 28 29
Port Size PT1/8 PT1/4 PT3/8 PT1/2

Stroke

Series Bore (mm) Standard Stroke Max. Stroke Allowable Stroke
SC
SCD
SCJ
32 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 1000 2000
40 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1200 2000
50 1200 2000
63 1500 2000
80 1500 2000
100 1500 2000

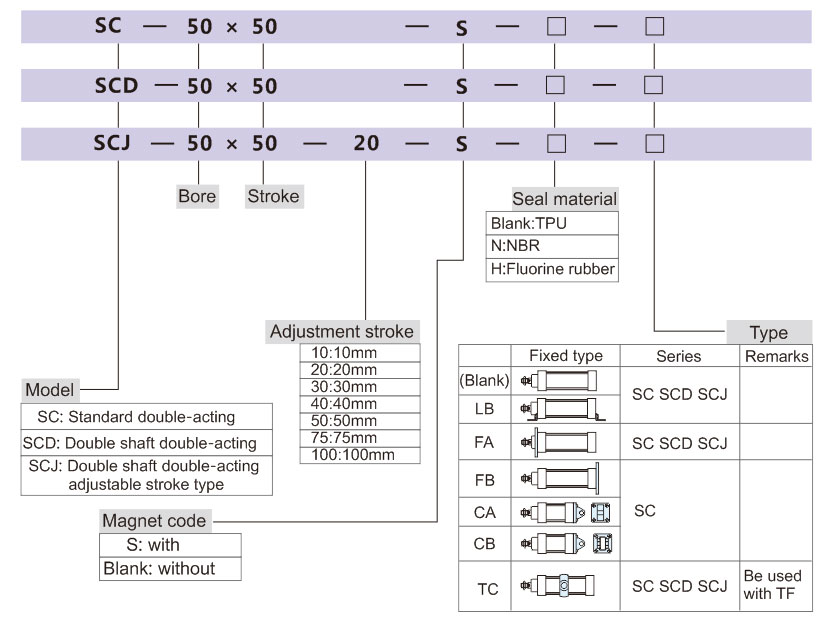

Ordering Code of SC Standard Air Cylinder

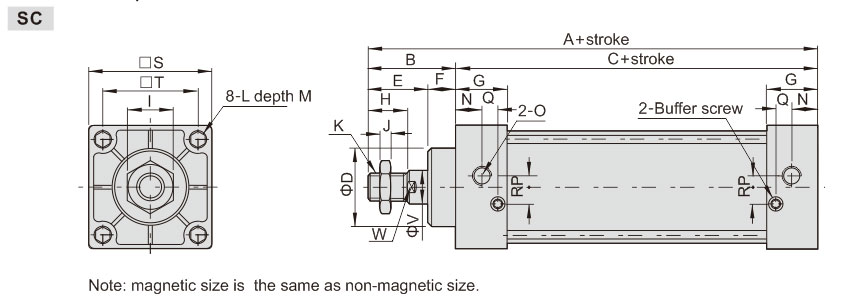

Overall Dimension

SC

Symbol / Bore A B C D E F G H I J K L M N O P Q R S T V W
32 140 47 93 28 32 15 27.5 22 17 6 M10x1.25 M6x1 9.5 14 PT1/8 5.5 6 6.5 45 33 12 10
40 142 49 93 32 34 15 27.5 24 17 7 M12x1.25 M6x1 9.5 15 PT1/4 6 5 8.5 50 38 16 14
50 150 57 93 38 42 15 27.5 32 23 8 M16x1.25 M6x1 9.5 17 PT1/4 8.5 2.5 10 62 47 20 17
63 153 57 96 38 42 15 27.5 32 23 8 M16x1.25 M8x1.25 9.5 15 PT3/8 9.5 4 8.5 75 56 20 17
80 182 75 107 47 54 21 33 40 26 10 M20x1.5 M10x1.5 11.5 19.5 PT3/8 10 4.5 14 94 70 25 22
100 188 75 113 47 54 21 33 40 26 10 M20x1.5 M10x1.5 11.5 16.5 PT1/2 11 6.5 14 112 84 25 22

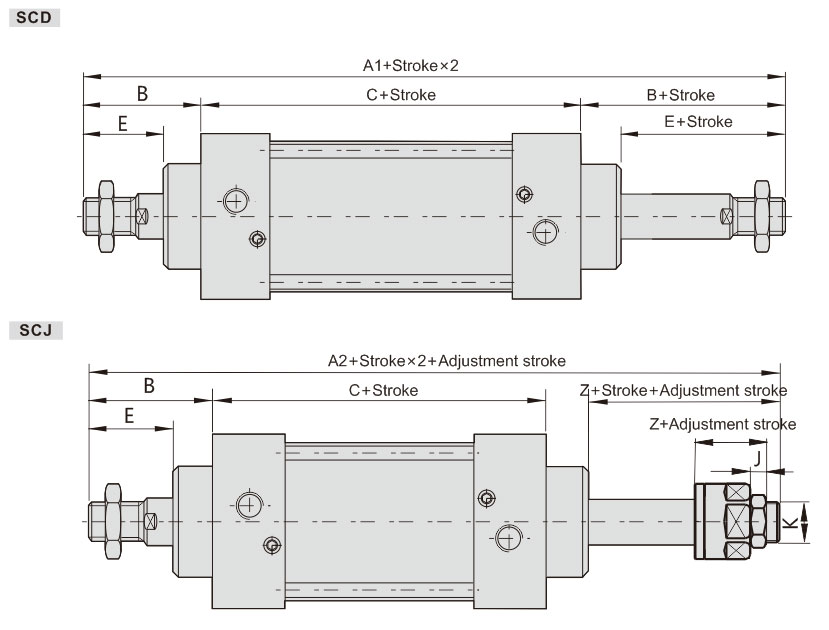

SCD / SCJ

Symbol / Bore A1 A2 B C E Z J K
32 187 182 47 93 32 23 6 M10x1.25
40 191 185 49 93 34 28 7 M12x1.25
50 207 194 57 93 42 28 8 M16x1.5
63 210 197 57 96 42 28 8 M16x1.5
80 257 238.5 75 107 54 35 10 M20x1.5
100 263 244.5 75 113 54 35 10 M20x1.5

Note: 1. magnetic size is the same as non-magnetic size.
2. The unlabeled size is the same as the SC standard type.
