Pneumatic Air Lubricator SL

SL200 Air Lubricator is the last working procedure in compressed air treatment equipment, the atomized lubricating oil is added to clean instrument air to lubricate the equipment and instruments which are not easy to add lubricating oil and prolong the service life of the equipment.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Lubrication: ISO VG32
Max. Operating Pressure: 0.85MPa

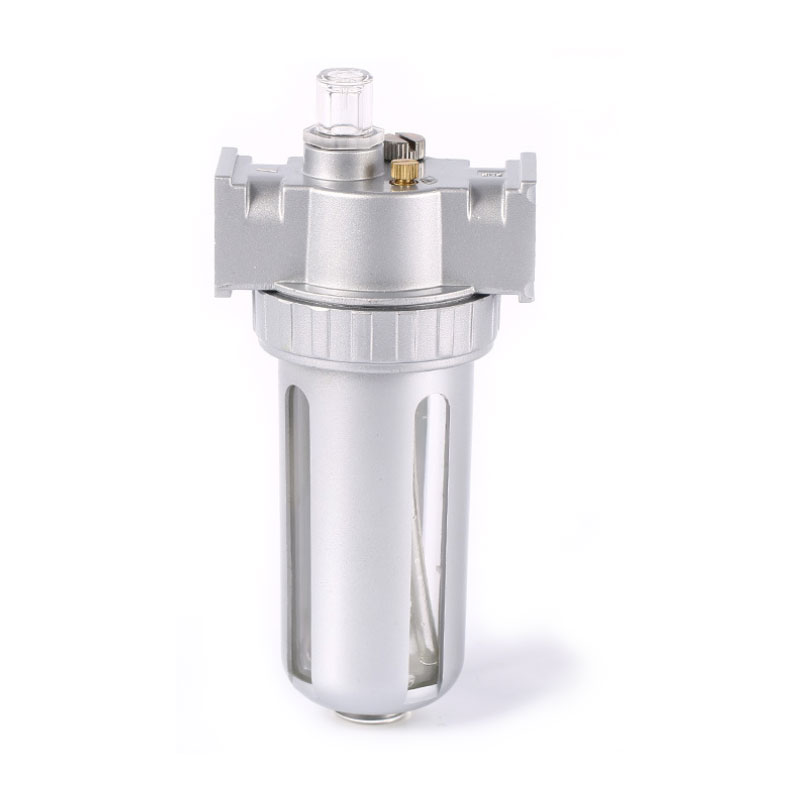

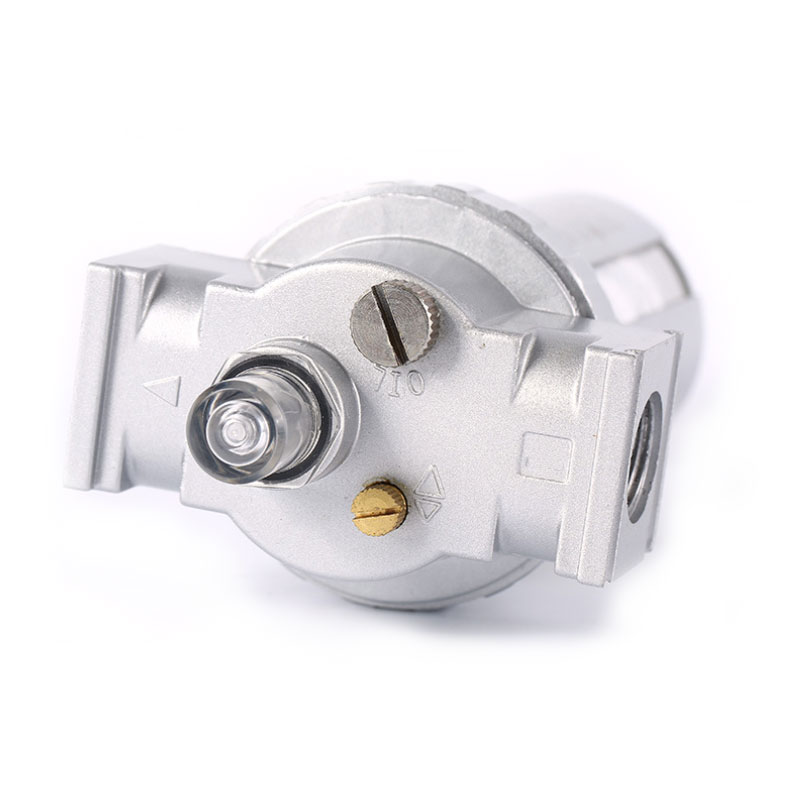

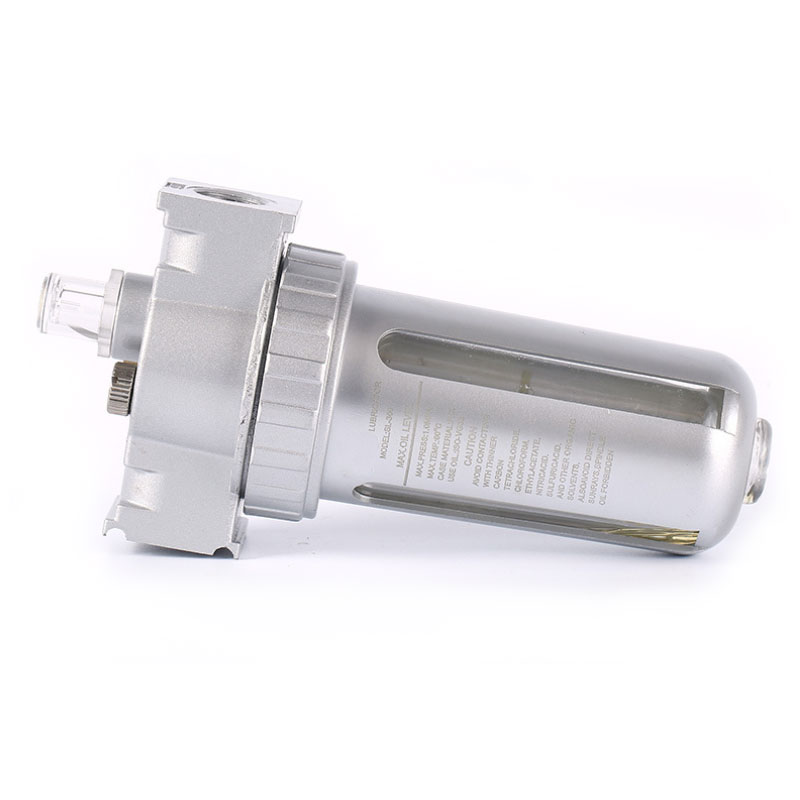

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for SL Lubricator

SL Lubricator: SL-02 Air Source Treatment; SL-03 Air Source Treatment; SL-04 Air Source Treatment. SL200 Air Lubricator is the last working procedure in compressed air treatment equipment, the atomized lubricating oil is added to clean instrument air to lubricate the equipment and instruments which are not easy to add lubricating oil and prolong the service life of the equipment. SL200 Air lubricator from Pneumatic Air Lubricator AL China Manufacturer Suppliers is also known as: compressed air lubricator, air lubricator, air refueling, air supply lubricator, instrument lubricator.

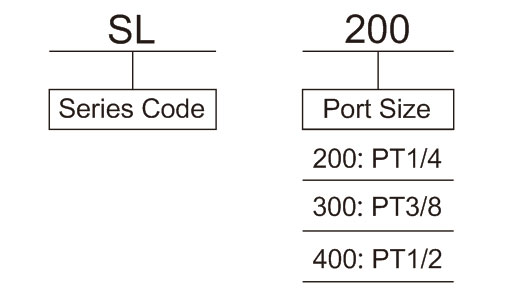

Ordering Code for SL Lubricator

Symbol for SL200 Air lubricator

Technical Parameter for SL200 Air lubricator

Model SL 200 SL 300 SL 400
Port Size PT1/4 PT3/8 PT1/2
Working Medium Compressed Air
Proof Pressure 1.5MPa
Max. Operating Pressure 0.85MPa
Ambient Temperature 5~60℃
Lubrication ISO VG32
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guard Plastics

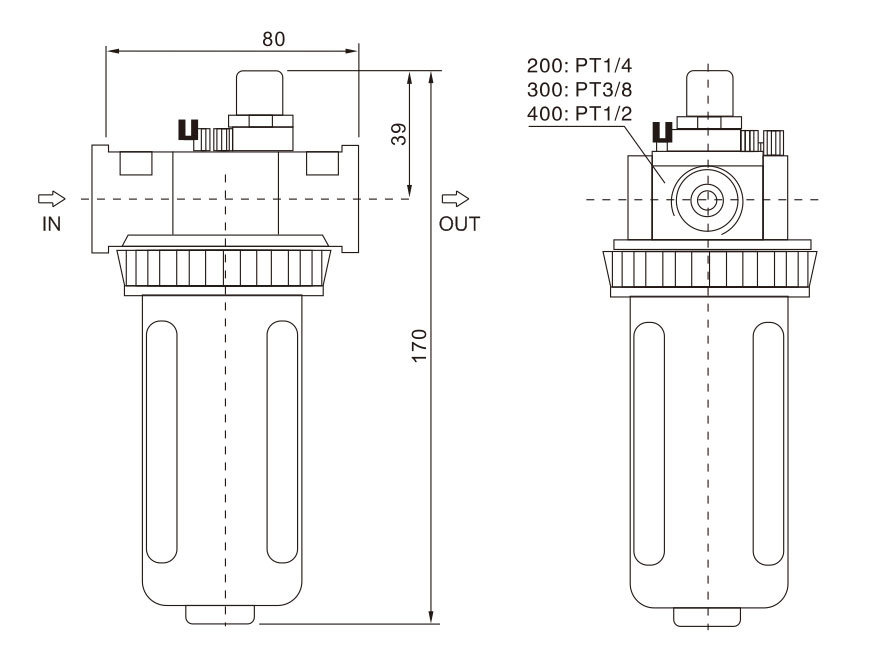

Overall Dimension
