Pneumatic Air Regulator AW (Overflow Type)

AW Air Regulator With Overflow can save space, required pipes is fewer, and saves installation costs. Pneumatic Air Regulator AR is made of solid material that can withstand high pressure and allows the user to operate a wide range of regulating pressure.

Working Medium: Compressed Air
Proof Pressure: 1.0MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.85MPa

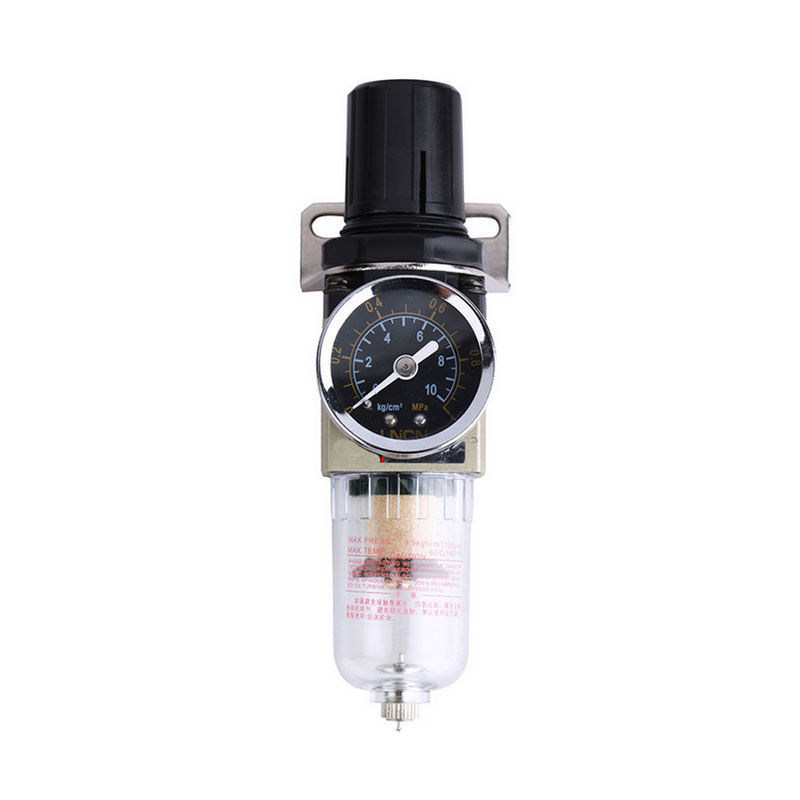

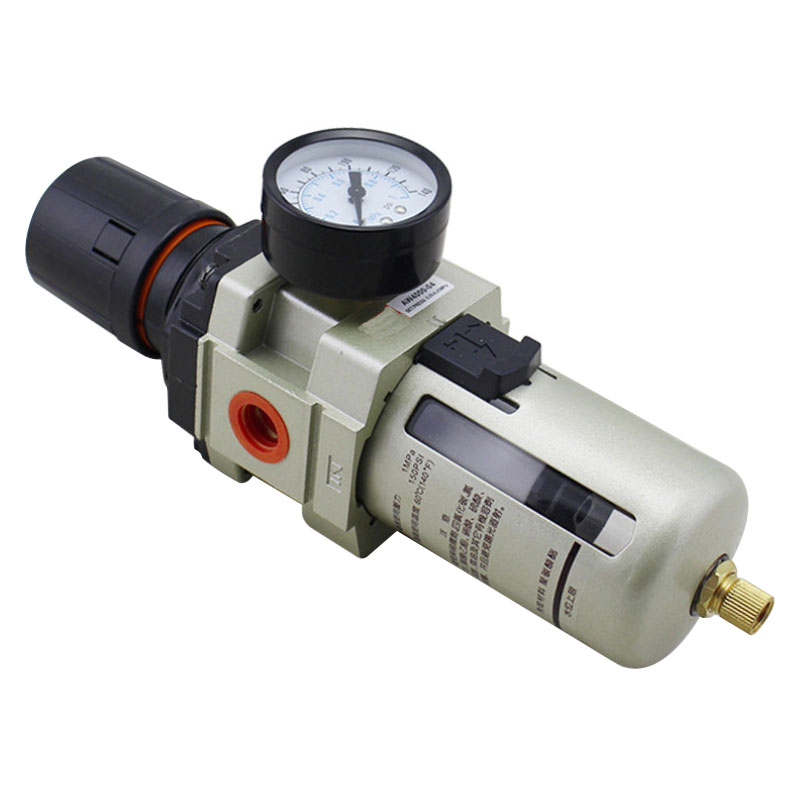

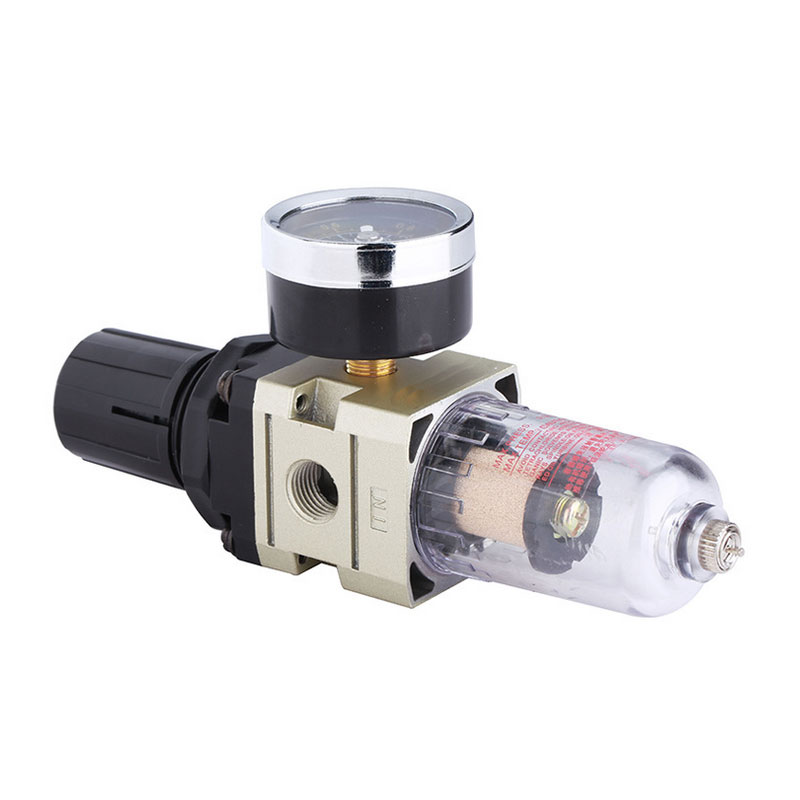

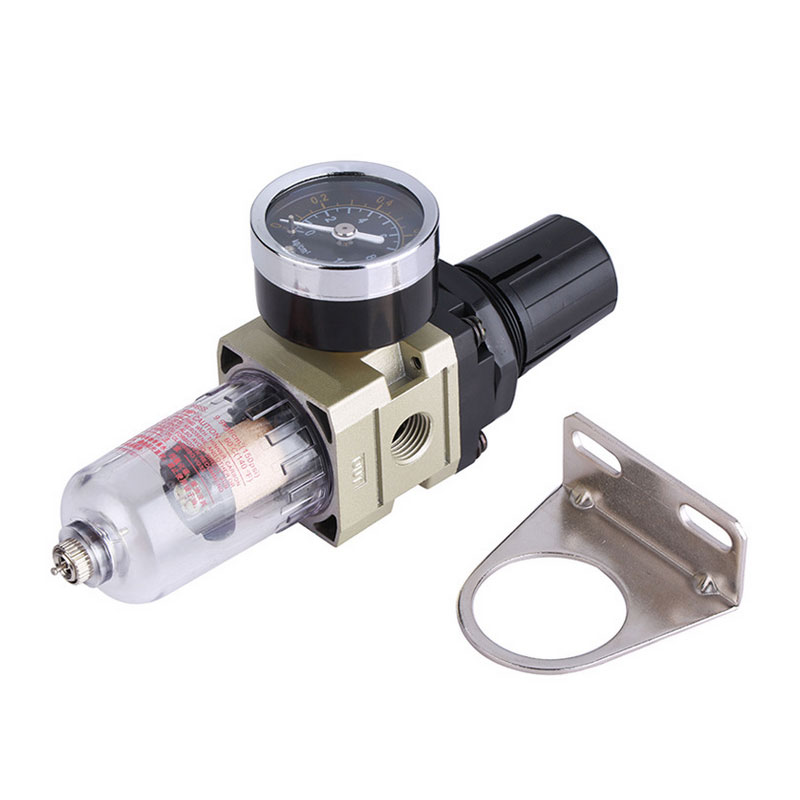

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-18968760532
Wechat: +86-18968760532

What’sApp: 18968760532

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for AW Air Regulator With Overflow

AW Air Regulator With Overflow can save space, required pipes is fewer, and saves installation costs. Pneumatic Air Regulator AR is made of solid material that can withstand high pressure and allows the user to operate a wide range of regulating pressure.

Installation and Maintenance for AW Air Regulator With Overflow

Installation and use of AW2000
1. When installing, please pay attention to cleaning the connecting pipes and joints, and avoid bringing dirt into the air piping.
2. When installing, please pay attention to whether the direction of air flow is consistent with the arrow direction on the body, and whether the pipe and the thread are correct.
3. Pressure adjustment: Pull up the pressure knob, rotate clockwise, and pressure rises, rotate counterclockwise, pressure drop. Adjust to the required pressure and press the pressure knob to be locked state.
4. Water discharge: When there is no air pressure, the water is automatically discharged. When there is air pressure, the drainage column will be pushed upward, then water discharged, after drainage, the drainage column will be released, the drainage column is automatically struck down, and the drainage ends. When the water level exceeds the upper limit, drain immediately, otherwise it will cause bad dehumidification.
5. Oil volume adjustment: Clockwise rotation of the needle valve reduces the amount of dripping oil, and counterclockwise rotation of the needle valve increases the amount of dripping oil. After adjust air flow and set the needle valve, the air flow rate is large, the amount of oil dropping is large; air flow is small, the amount of oil dropping is small.
6. Refueling method: AW2000 can not close the air pipeline for refueling operations, turn the fuel screw counterclockwise, the volume should not exceed 80% of the cup when refueling. Screw up the fuel screw tightly after adding oil. Do not refueling directly when the oil bowl is unloaded.
Maintenance of AW2000
1. Clean / replace the filter screen: remove the filter screen of AW2000 and use air to blow it from inside to outside, so that it can be reused.
2. Transparent PC bowl: Remove the PC bowl and wipe it with a clean dry cloth. Do not use any chemicals that will destroy the PC material to clean it.

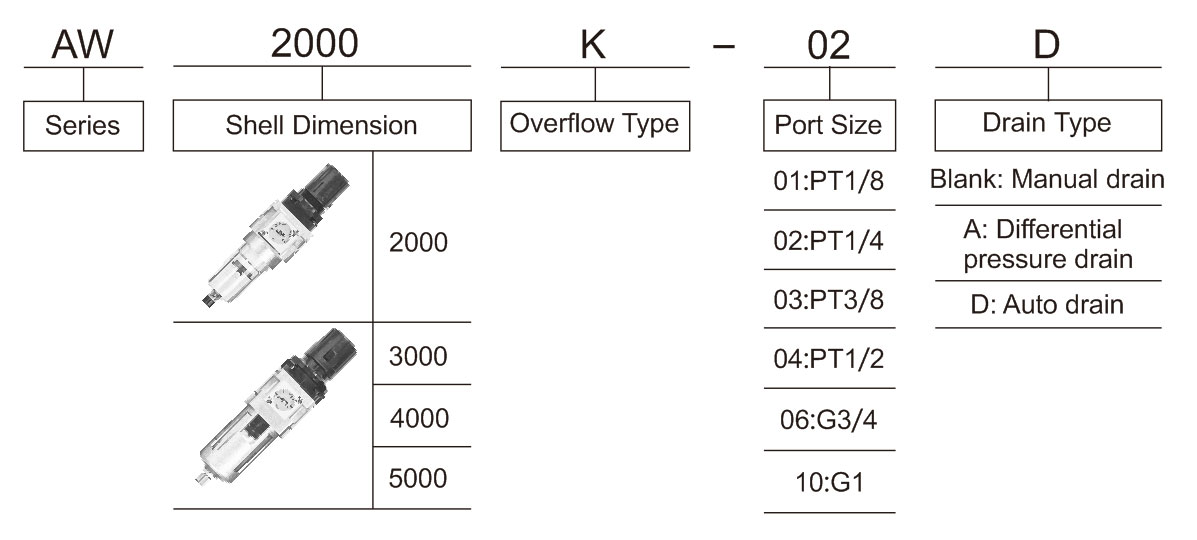

Ordering Code for AW Air Regulator With Overflow

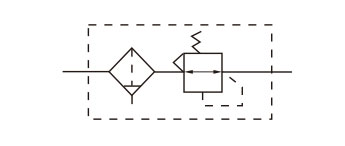

Symbol for AW Air Regulator With Overflow

Technical Parameter for AW Air Regulator With Overflow

Model AW2000K-01 AW2000K-02 AW3000K-02 AW3000K-03 AW4000K-03 AW4000K-04 AW5000K-06 AW5000K-10
Port Size PT1/8 PT1/4 PT1/4 PT3/8 PT3/8 PT1/2 G3/4 G1
Rated Flow (L/min) 550 550 2000 2000 4000 4000 5500 5500
Pressure gauge Square embedded pressure gauge
Working Medium Compressed Air
Max. Operating Pressure 1.0MPa
Range of pressure regulation 0.05~0.85MPa
Overflow pressure Setting pressure [ When overflow is 0.1L/min (ANR) ]
Ambient temperature 5~60℃ (No Freezing)
Filtration aperture 40μm(routine) or 5μm(customized)
Bracket (1) B220 B320 B320 B320 B420 B420 B640 B640
Structure Overflow Type
Body material Aluminium Alloy
Bowl material PC
Bowl Guide AW2000K (no); AW3000K~AW5000K (yes)

Note: The rated flow is at the supply pressure of 0.7MPa.

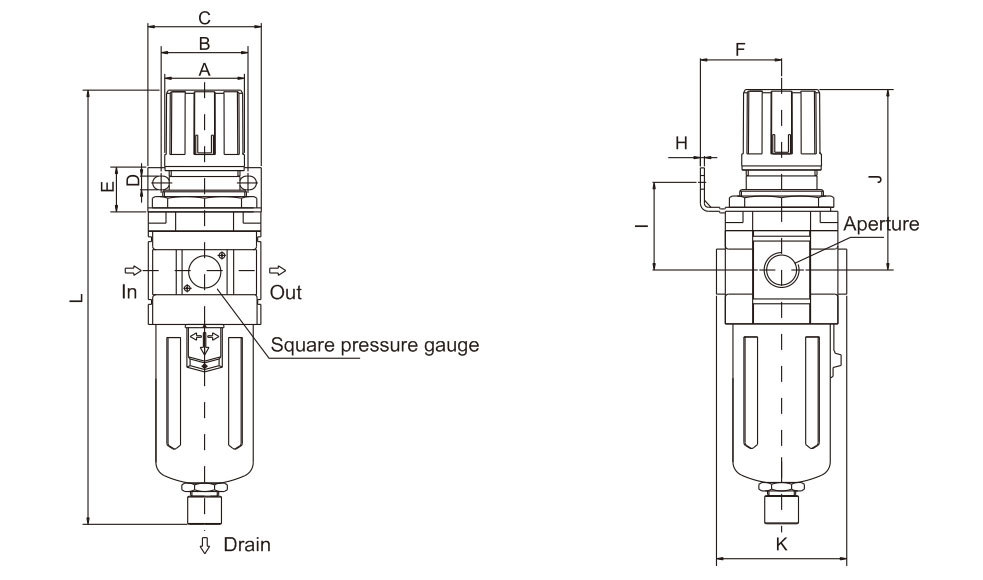

Overall Dimension

Model Aperture A B C D E F H I J K L
AW2000K PT1/8,PT1/4 30 34 55 5.4 24.5 31 2 27 73.5 58 175.5
AW3000K PT1/4,PT3/8 39 40 53 6.5 21.5 41.5 2.5 34.5 87.5 69 210.5
AW4000K PT3/8,PT1/2 49.5 54 70.5 8.5 27.5 50.5 2.5 38.5 108 81 262
AW5000K G3/4,G1 49.5 54 70.5 8.5 27.5 50.5 2.5 16.5 116 90 269

Note: due to the different drainage components, the L values in the table will be slightly different. If necessary, please contact the sales department.
