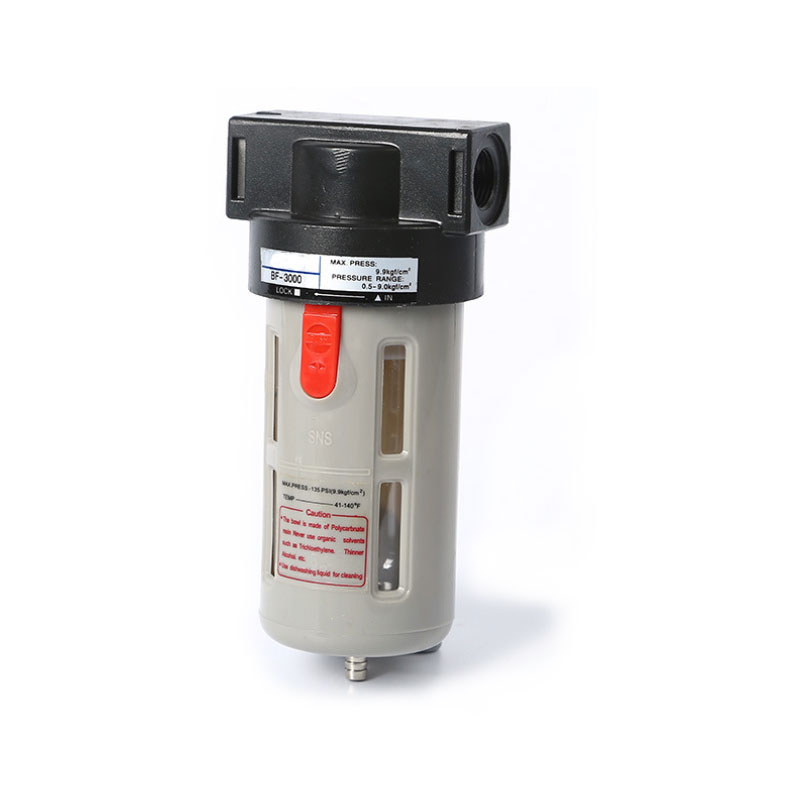

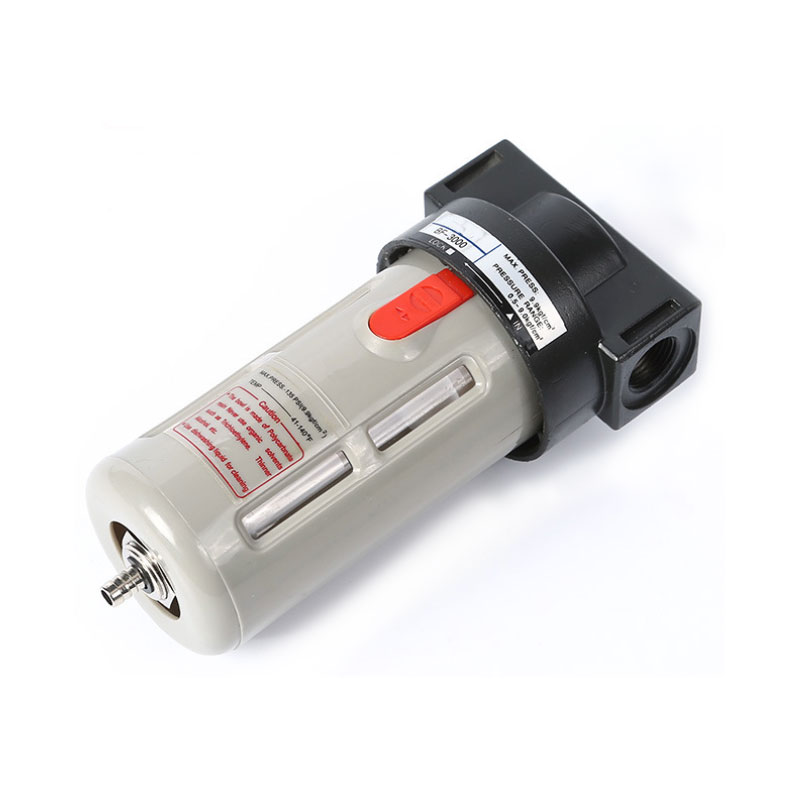

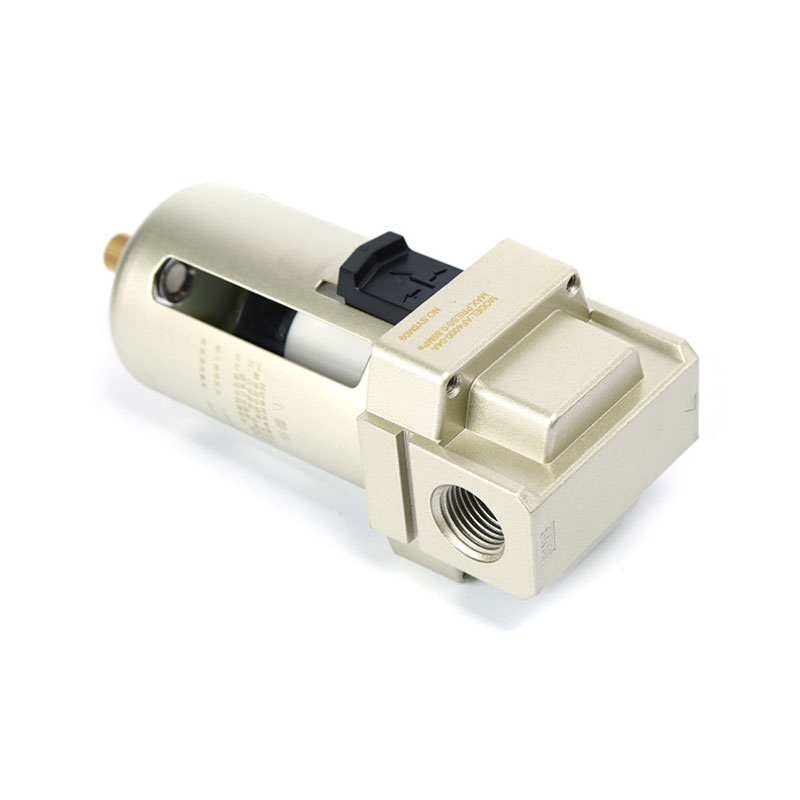

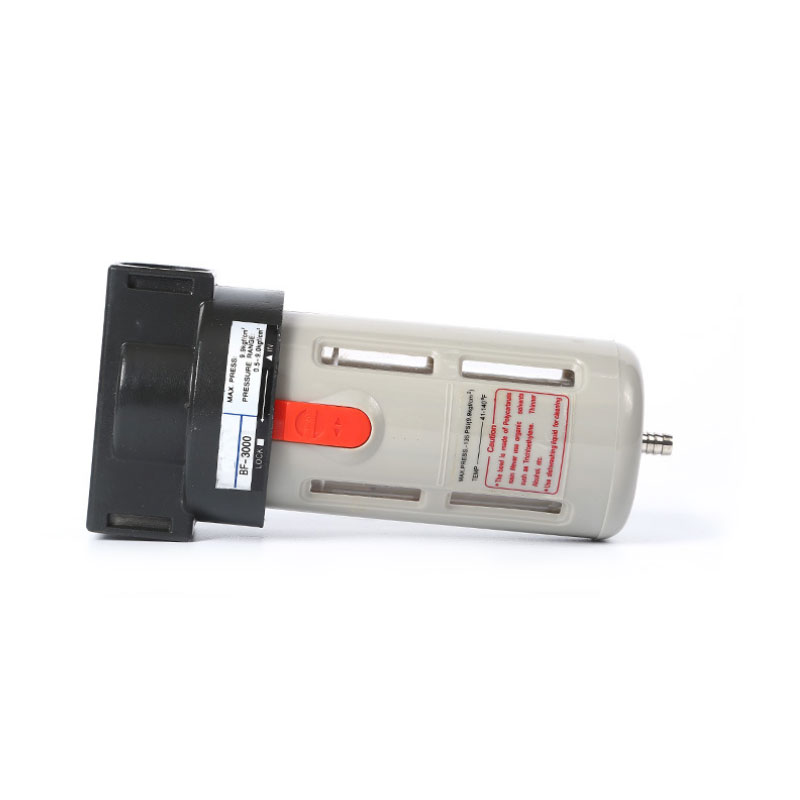

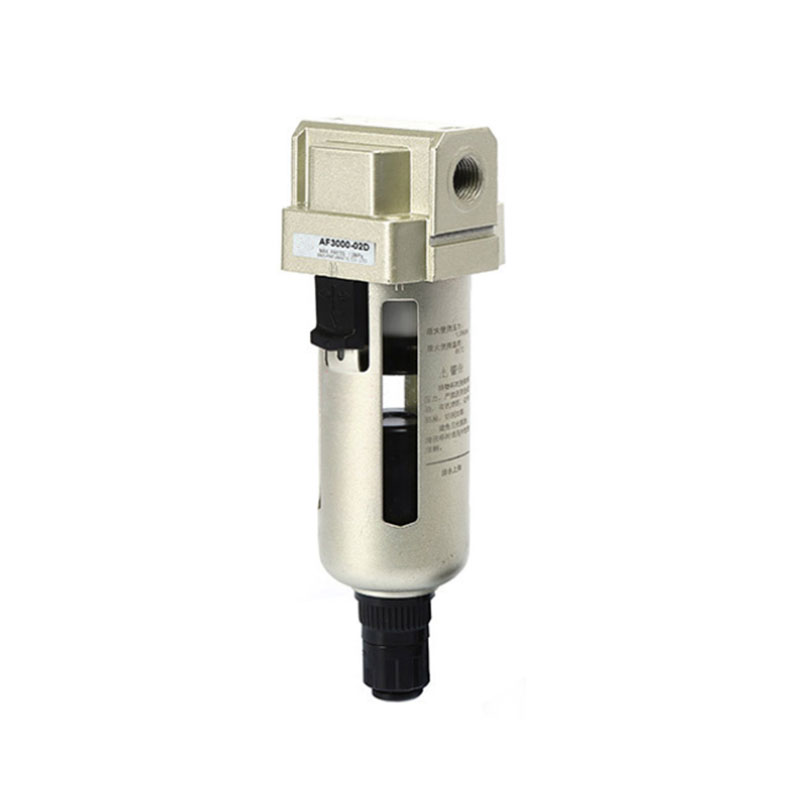

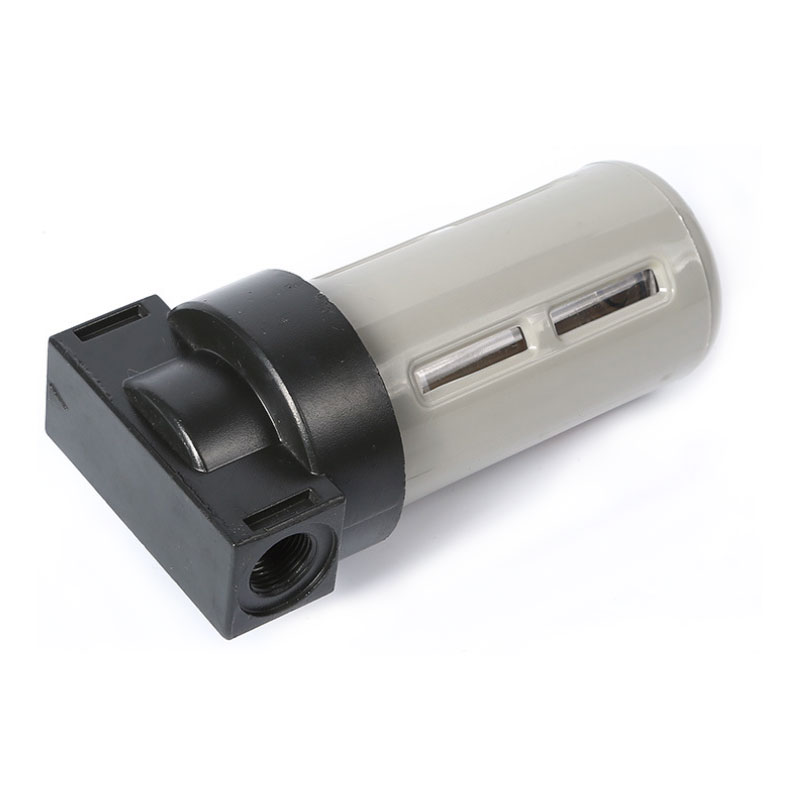

Pneumatic Air Filter AF/BF

The function of the A/B Series Air Filter is to filter out all kinds of impurities such as solid particles, moisture and oil in the air. The air further clears the solid particles through the filter element, and the clean air outputs from the output port.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.85MPa

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for A/B Series Air Filter

The function of the A/B Series Air Filter is to filter out all kinds of impurities such as solid particles, moisture and oil in the air. The working principle of Pneumatic Air Filter AF is that when compressed air enters the A/B Series Air Filter from the inlet, strong rotation occurs due to the guide of the cyclone blade. Under the action of centrifugal force, large particles of solid impurities, liquid water droplets and oil droplets mixed in the air are thrown onto the inner surface of the filter shell and settle down to the bottom along the wall under the action of gravity, discharged by manual or automatic drainer. The air further clears the solid particles through the filter element, and the clean air outputs from the output port. The baffle can prevent the vortex of the airflow from rolling up the sewage and cause secondary pollution.

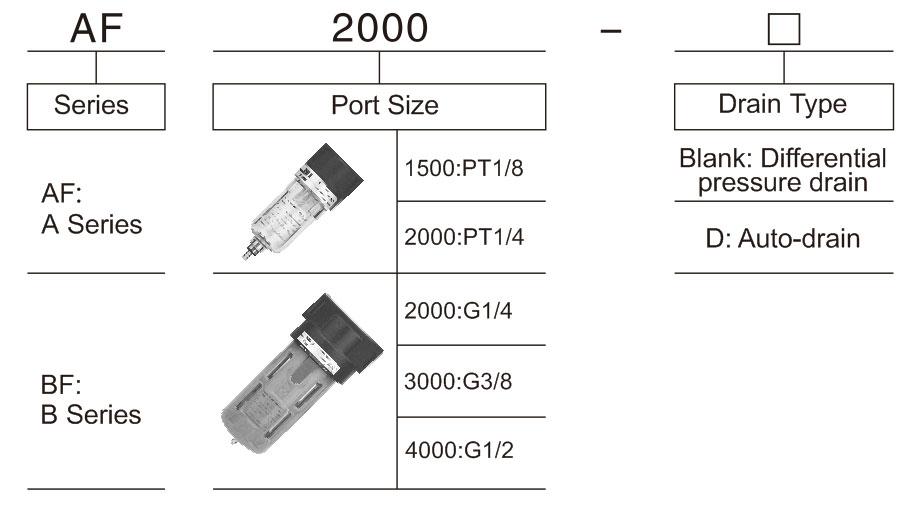

Ordering Code for A/B Series Air Filter

Symbol for A/B Series Air Filter

Technical Parameter for Pneumatic Filter A B Series

Model AF1500 AF2000 BF2000 BF3000 BF4000
Port Size PT1/8 PT1/4 G1/4 G3/8 G1/2
Working Medium Compressed Air
Proof Pressure 1.5MPa
Max. Operating Pressure 0.85MPa
Temperature range 5~60℃
Filtration aperture 40μm(routine) or 5μm(customized)
Bowl capacity 15ml 60ml
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide AF1500~AF2000: no; BF2000~BF4000: yes (plastics)

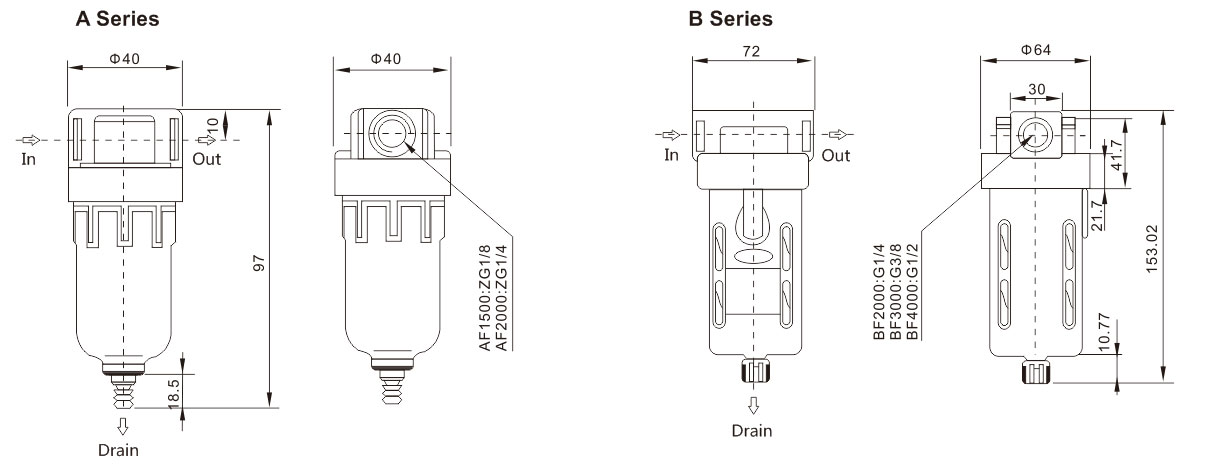

Overall Dimension
