Air Filter Regulator AC (Overflow Type)

The combination of air filter and air regulator can be called Air Filter Regulator With Overflow. AC Air Combination have the characteristics of small volume, light weight, good performance, easy to use, beautiful appearance, small thread interface and so on.

Working Medium: Compressed Air
Proof Pressure: 1.0MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.85MPa

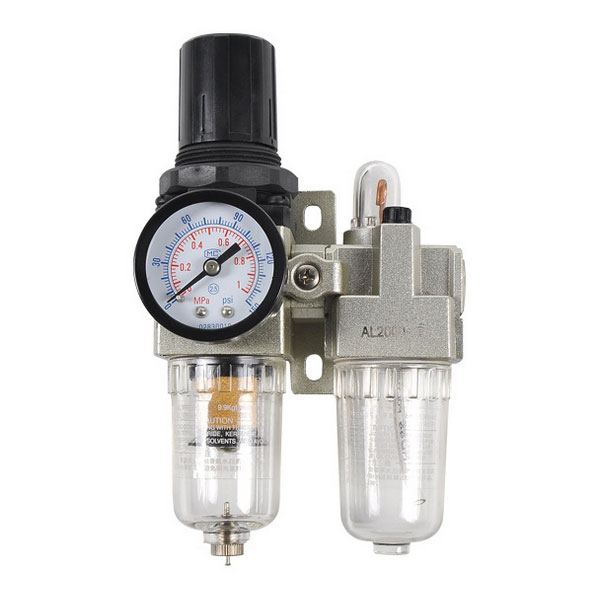

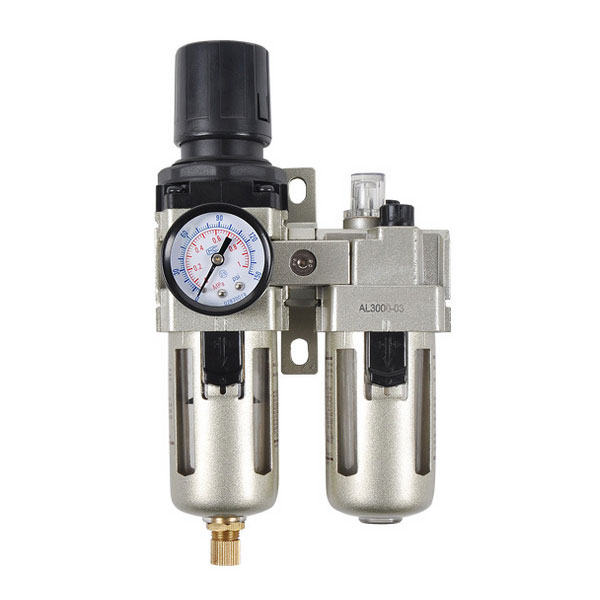

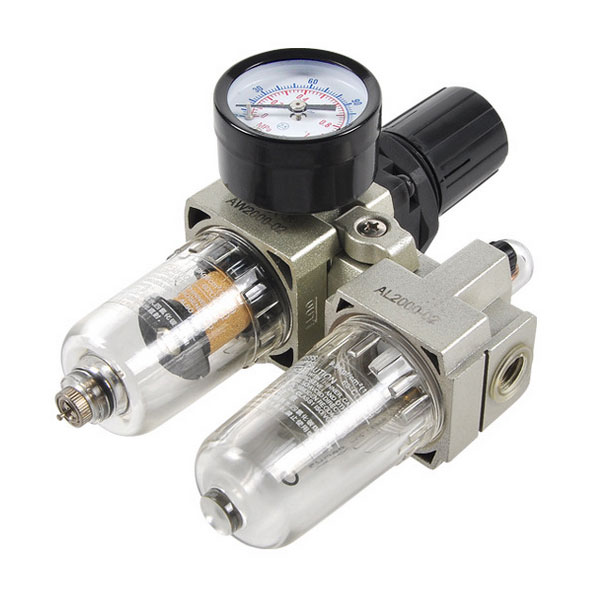

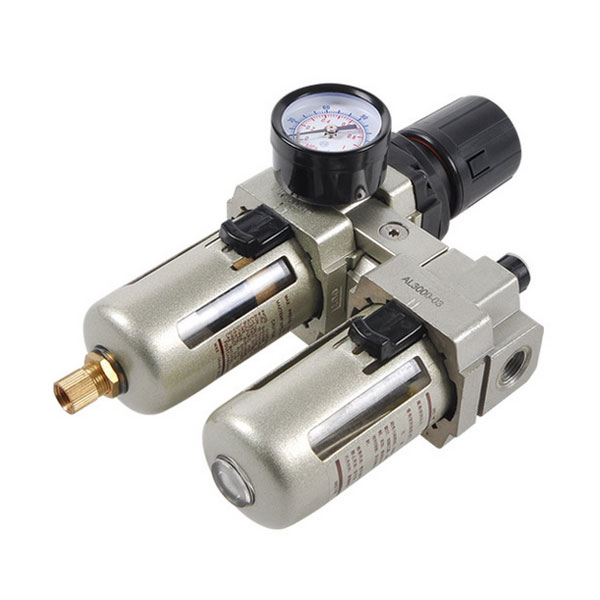

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Overview for AC Air Filter Regulator With Overflow

The combination of air filter and air regulator can be called Air Filter Regulator With Overflow. Air filters and air regulator can also be assembled together to become a filter pressure reducing valve (The function is the same as the combination of air filter and air pressure reducing valve). Some occasions can not allow the existence of oil mist in compressed air, so the oil mist separator is needed to filter out the oil mist in compressed air.
Two features of AC Pneumatic Air Filter Regulator AFR:
AC Air Filter Regulator With Overflow have the characteristics of small volume, light weight, good performance, easy to use, beautiful appearance, small thread interface and so on.
AC Air Combination adopts module connection, can be used separately or in combination, easy installation, square pressure gauge has embedded structure, saving installation space.
AC Air Combination is composed of filter pressure reducing valve and Lubricator, which can realize three functions of filtration, pressure reduction and adding lubrication. Compared with FRL, AC Air Combination is smaller and the effect is the same.
One of the combination of AC Air Combination, Lubricator adopts a new oil quantity adjustment structure, which can realize non-stop refueling. Built in oil quantity sensor, so the oil mist quantity is low, the oil mist AFR is fine, and the transmission distance is long.

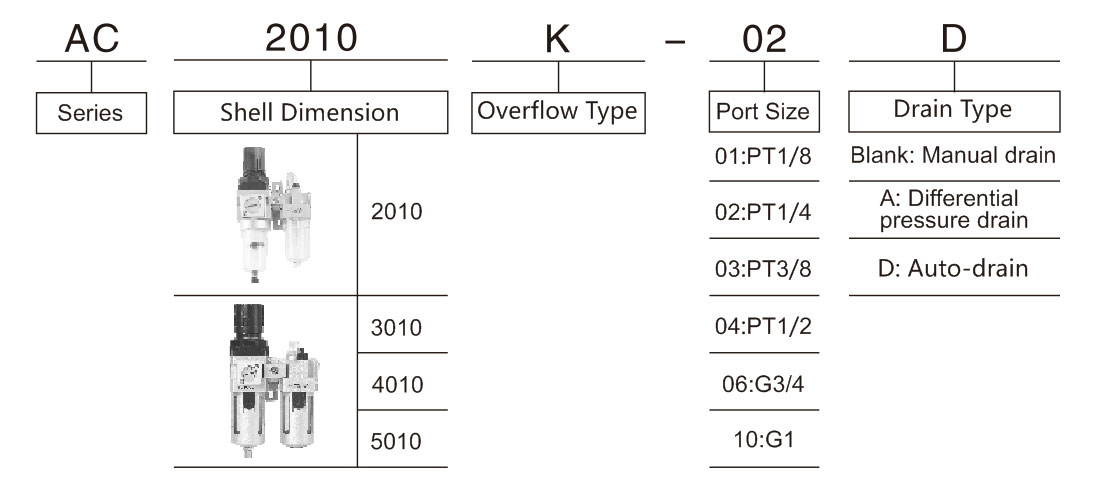

Ordering Code for AC Series Air Filter Regulator With Overflow

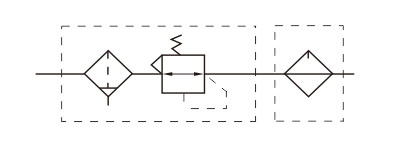

Symbol for Filter Regulator Combo AC Series Overflow Type

Technical Parameter for AC Series Air Filter Regulator With Overflow

Model	AC2010K-01	AC2010K-02	AC3010K-02	AC3010K-03	AC4010K-03	AC4010K-04	AC5010K-06	AC5010K-10
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT3/8	PT1/2	G3/4	G1
Rated flow (L/min)	500	500	1700	1700	3000	3000	5000	5000
Pressure gauge	Square embedded pressure gauge
Working Medium	Compressed Air
Max. Operating Pressure	1.0MPa
Range of pressure regulation	0.05~0.85MPa
Overflow pressure	Setting pressure [ When overflow is 0.1L/min (ANR) ]
Ambient temperature	5~60℃ (No Freezing)
Filtration aperture	40μm(routine) or 5μm(customized)
Bracket (1)	Y20T	Y20T	Y30T	Y30T	Y40T	Y40T	Y60T	Y60T
Structure	Overflow Type
Body material	Aluminium Alloy
Bowl material	PC
Bowl guide	AC2010K(No); AC3010K~AC5010K(Yes)

Note: The rated flow is at the supply pressure of 0.7MPa.

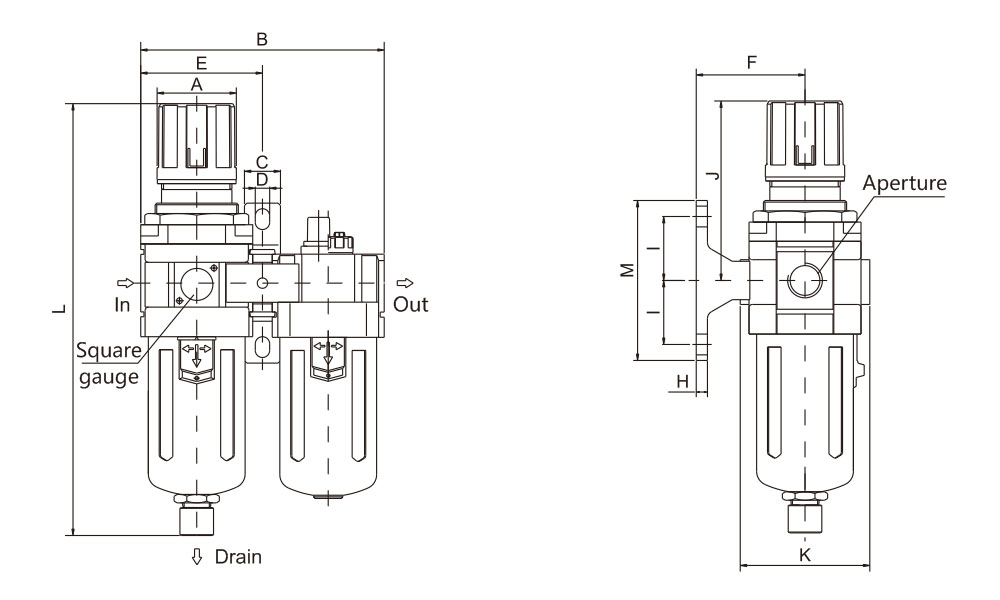

Overall Dimension

Model	Aperture	A	B	C	D	E	F	H	I	M	J	K	L
AC2010K	PT1/8,PT1/4	30	97.5	15	5.4	53	42.5	4.8	24	66	73.5	58	175.5
AC3010K	PT1/4,PT3/8	39	116.5	16	7	58.5	54.5	7	35	90	87.5	69	210.5
AC4010K	PT3/8,PT1/2	49.5	159	22.5	9	76.5	69	7	40	100	108	81	262
AC5010K	G3/4,G1	49.5	195	23	12	97.5	92.5	10	50.5	126	116	90	269

Note: due to the different drainage components, the L values in the table will be slightly different. If necessary, please contact the sales department.
