Pressure Regulating Valve AR/BR

Pressure Regulating Valve AR/BR structure is light and compact, easy to install and use; Push-in self-locking mechanism, can prevent setting pressure from being disturbed by external disturbances;

Port Size:PT1/8,PT1/4,G1/8,G1/4,G3/8,G1/2
Proof Pressure:1.5MPa
Operating Pressure: 0.05-0.85 MPa
Working Environment Temperature: 5 to 60°C
Body Material:Aluminium Alloy

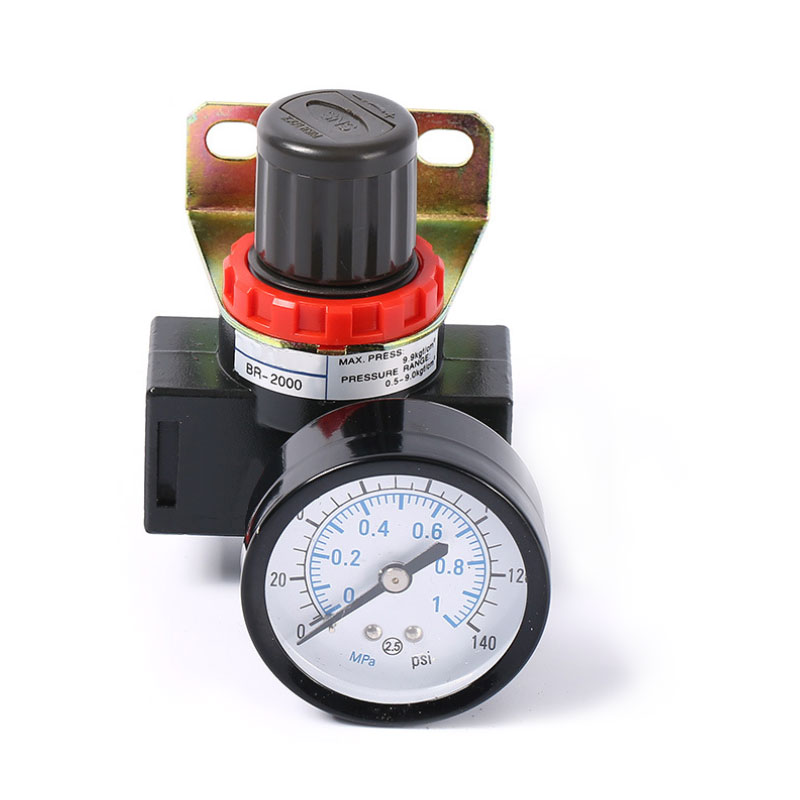

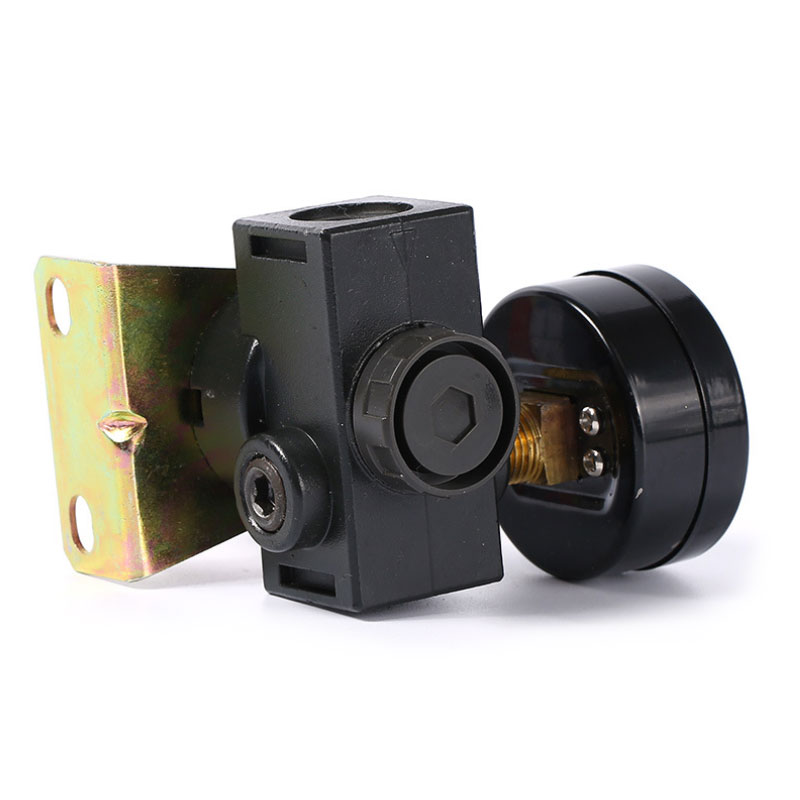

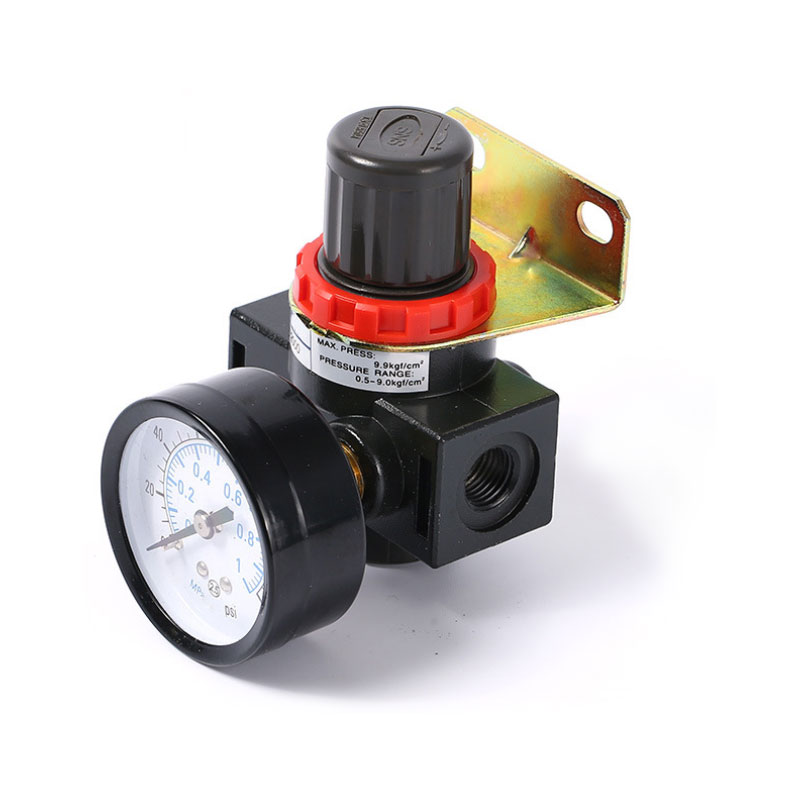

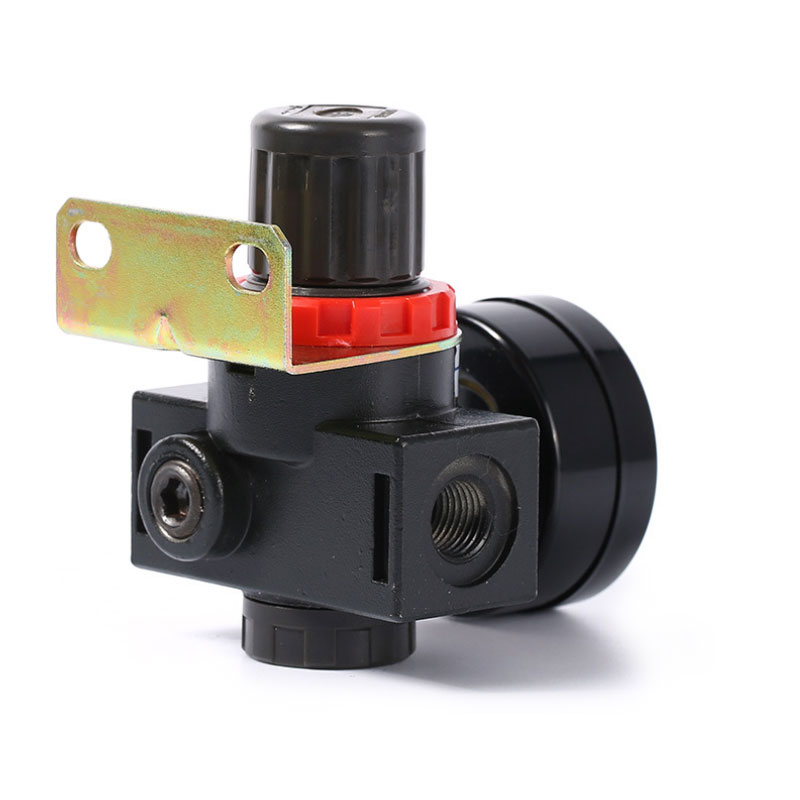

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: 0086+13356192265
What’sApp: 13356192265

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Pressure Regulating Valve AR/BR

1. Pressure Regulating Valve AR/BR structure is light and compact, easy to install and use;
2. Push-in self-locking mechanism, can prevent setting pressure from being disturbed by external disturbances;
3. Pressure Regulating Valve AR/BR pressure loss is small and the water division efficiency is high

Technical Parameters for Pressure Regulating Valve AR/BR

Port Size:PT1/8,PT1/4,G1/8,G1/4,G3/8,G1/2
Proof Pressure:1.5MPa
Operating Pressure: 0.05-0.85 MPa
Working Environment Temperature: 5 to 60°C
Body Material:Aluminium Alloy

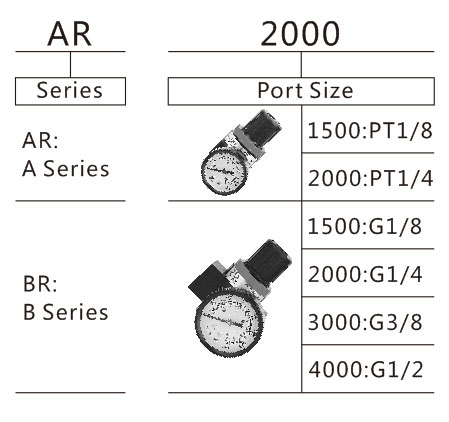

Ordering Code for Pressure Regulating Valve AR/BR

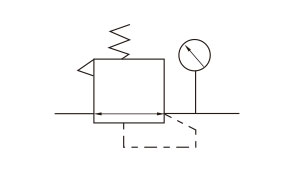

Symbol for Pressure Regulating Valve A B Series

Technical Parameter for Pressure Regulating Valve A B Series

Model AR1500 AR2000 BR1500 BR2000 BR3000 BR4000
Port Size PT1/8 PT1/4 G1/8 G1/4 G3/8 G1/2
Working Medium Compressed Air
Proof Pressure 1.5MPa
Range of pressure regulation 0.05~0.85MPa
Operating temperature range 5~60℃
Body material Aluminium Alloy

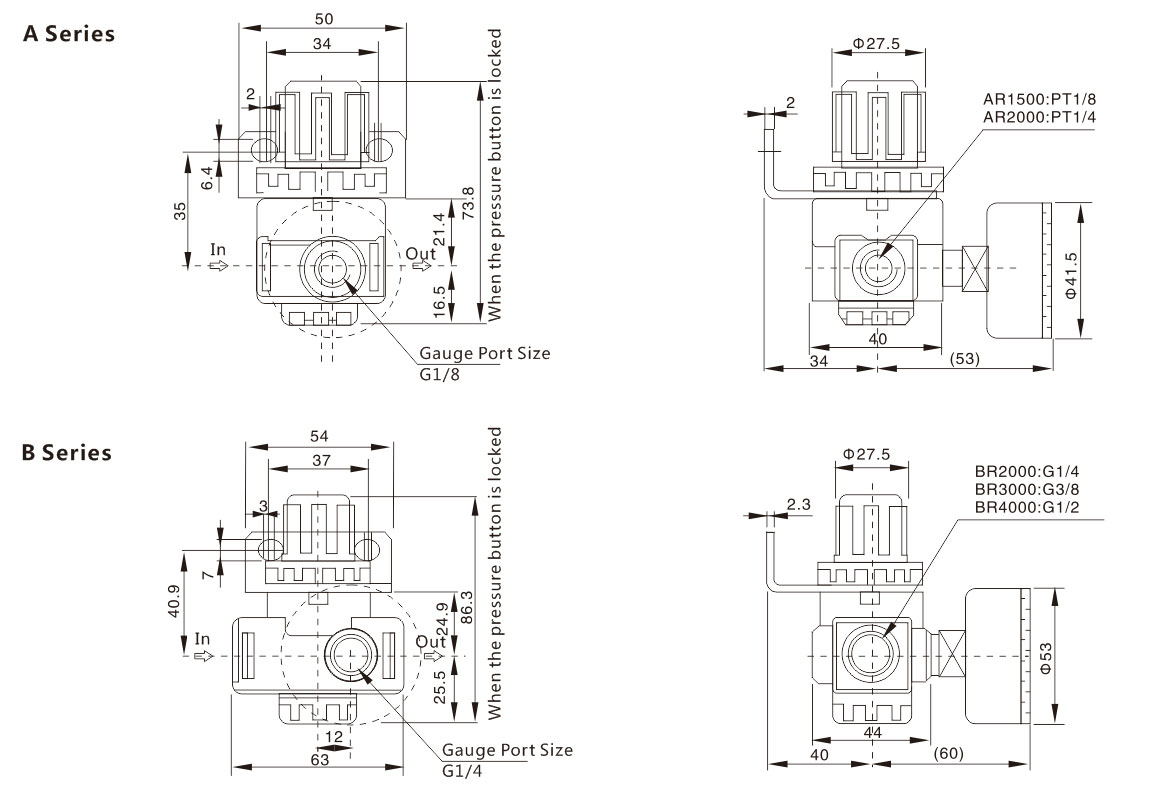

Overall Dimension
