Pressure Regulating Valve IR

Pilot exhaust is separated from main exhaust Small size, light weight, large flow, precise pressure setting

Port Size: PT1/8,PT1/4,PT13/8,PT1/4
Proof Pressure: 1.0MPa
Operating Pressure: 0.05-0.8 MPa;
Working Environment Temperature: -5 to 60°C

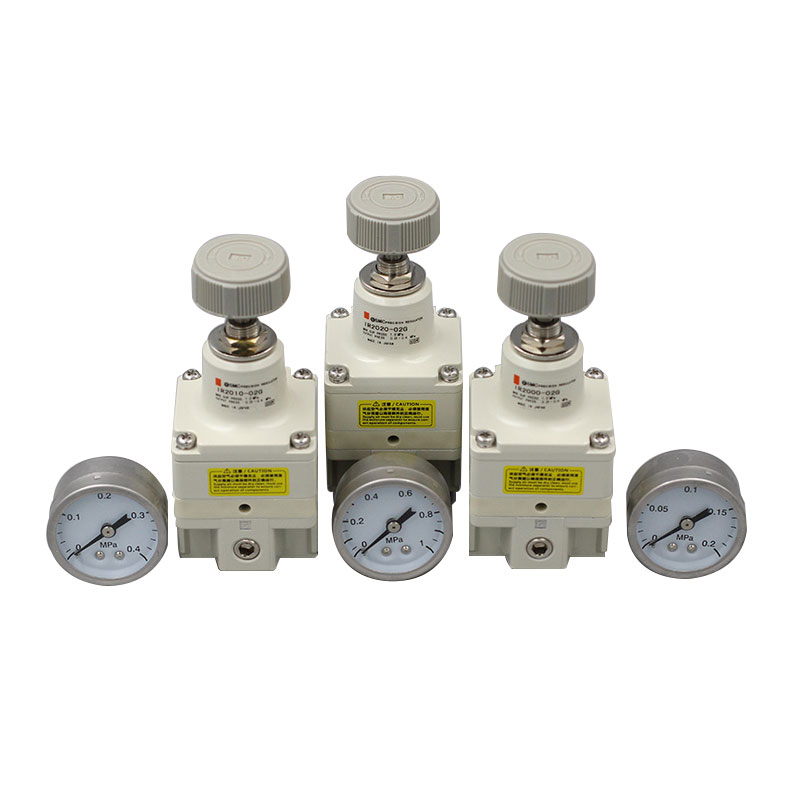

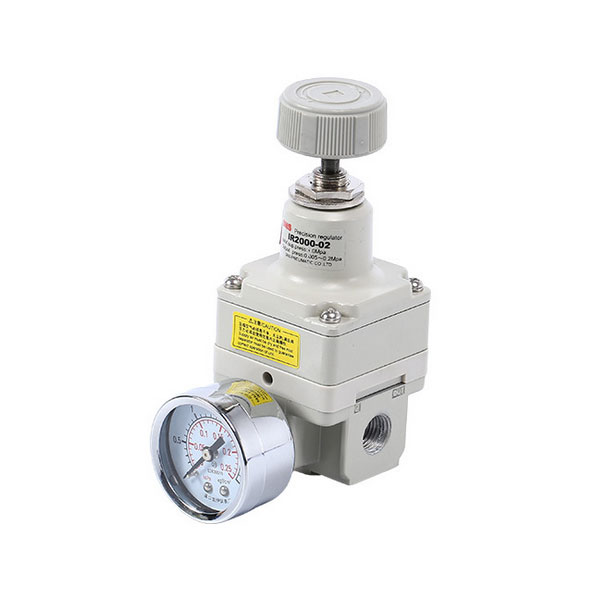

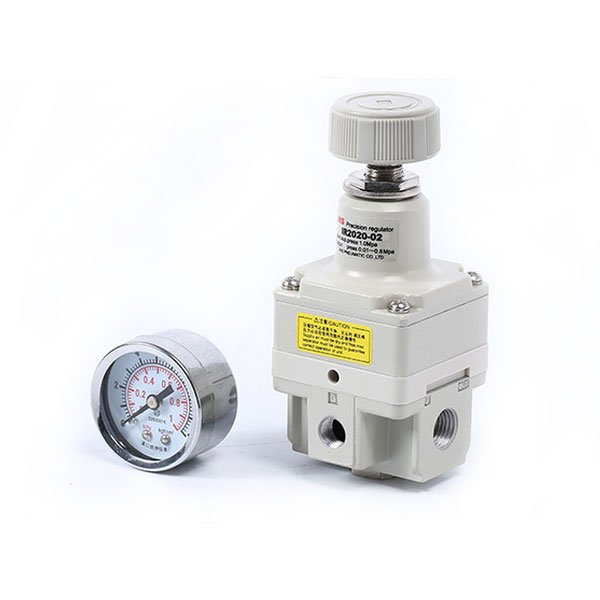

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Precision Pressure Regulating Valve IR

Product Features:
Pilot exhaust is separated from main exhaust
Small size, light weight, large flow, precise pressure setting
Easy to install, can install bracket separately, or install it combined with modular filter elements
The visual gauge has the pressure range easily calibrated by dial the pointer, easy to disassemble
Used for the control of piping system pressure

Technical Parameters for Precision Pressure Regulating Valve IR

Port Size: PT1/8,PT1/4,PT13/8,PT1/4
Proof Pressure: 1.0MPa
Operating Pressure: 0.05-0.8 MPa;
Working Environment Temperature: -5 to 60°C

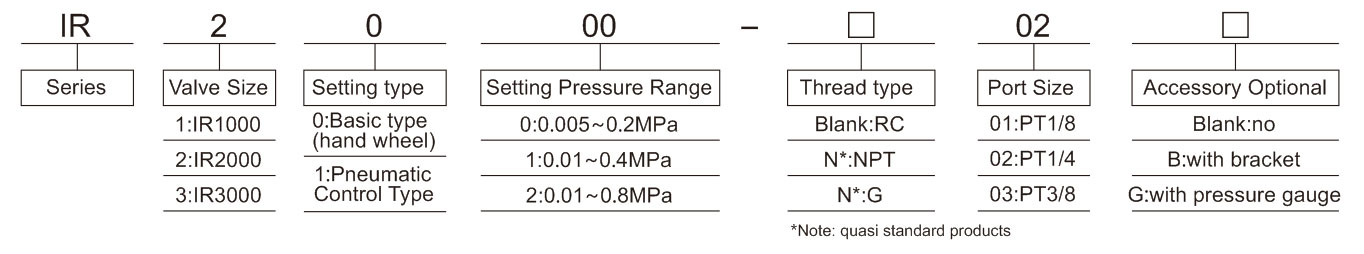

Ordering Code for Precision Pressure Regulating Valve IR

Technical Parameter for Precision Pressure Regulating Valve IR Series

Specification IR1000-01 IR1010-01 IR1020-01 IR2000-02 IR2010-02 IR2020-02 IR3000-03 IR3010-03 IR3020-03
Working Medium Compressed Air
Min. Operating Pressure 0.05MPa
Range of pressure regulation (MPa) 0.005~0.2 0.01~0.4 0.01~0.8 0.005~0.2 0.01~0.4 0.01~0.8 0.005~0.2 0.01~0.4 0.01~0.8
Max. Operating Pressure 1.0MPa
Pressure Gauge Model Y40-01
Pressure Gauge Range 0.25MPa 0.5MPa 1MPa 0.25MPa 0.5MPa 1MPa 0.25MPa 0.5MPa 1MPa
Sensitivity Within 0.2% full scale
Repeatability accuracy Within ±0.5% full scale
Air consumption IR10□0 Max.: 3.5L/min(ANR) Under 1.0 MPa pressure
IR20□0 Max.: 3.1L/min(ANR) Under 1.0 MPa pressure
IR2120 Max.: 3.1L/min(ANR) Under 1.0 MPa pressure
IR30□0 Ordinary discharge port: Max.: 9.5L/min(ANR) Under 1.0 MPa pressure
IR3120 Exhaust port: Max.: 2L/min(ANR) Under 1.0 MPa pressure
Ambient temperature -5~60℃ (No Freezing)
Body material Aluminium Alloy

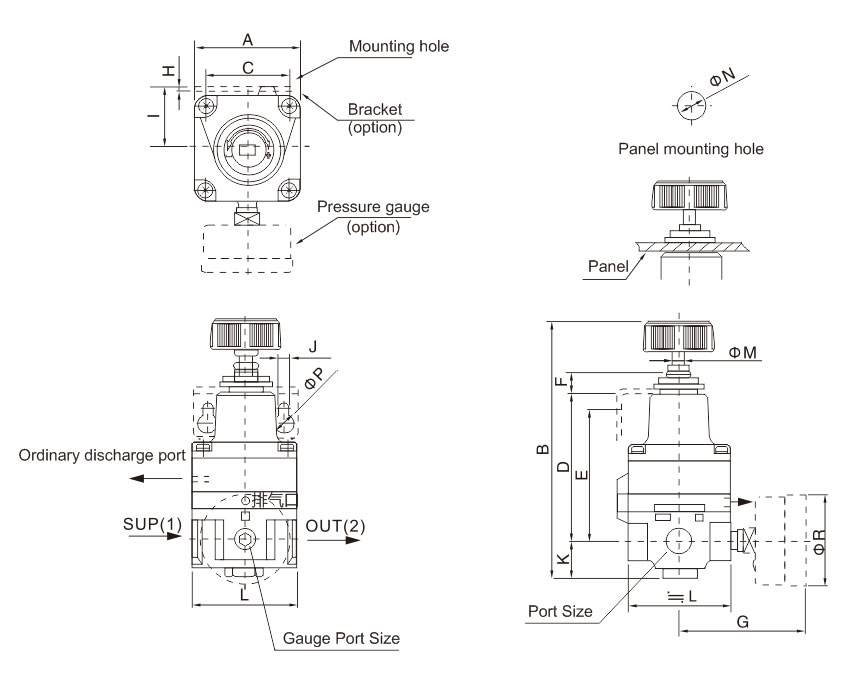

Overall Dimension for Precision Pressure Regulating Valve IR Series

Model A B C D E F G H I J K L ΦM ΦN ΦP Gauge Port Size Port Size
IR1000-01
IR1010-01
IR1020-01
42 90 28 51 44 10 43 2 25 4.5 10 35 M5×P0.5 13 8.5 PT1/8 PT1/8
IR2000-02
IR2010-02
IR2020-02
50 123 36 71 63 11 60 2 30 5.5 18 50 M5×P0.5 16 9.5 PT1/8 PT1/4
IR3000-□
IR3010-□
IR3020-□
82 148 60 115 76 12 68 2.3 48 9 22 66 M5×P0.5 16 9.5 PT1/8 PT13/8
PT1/4
