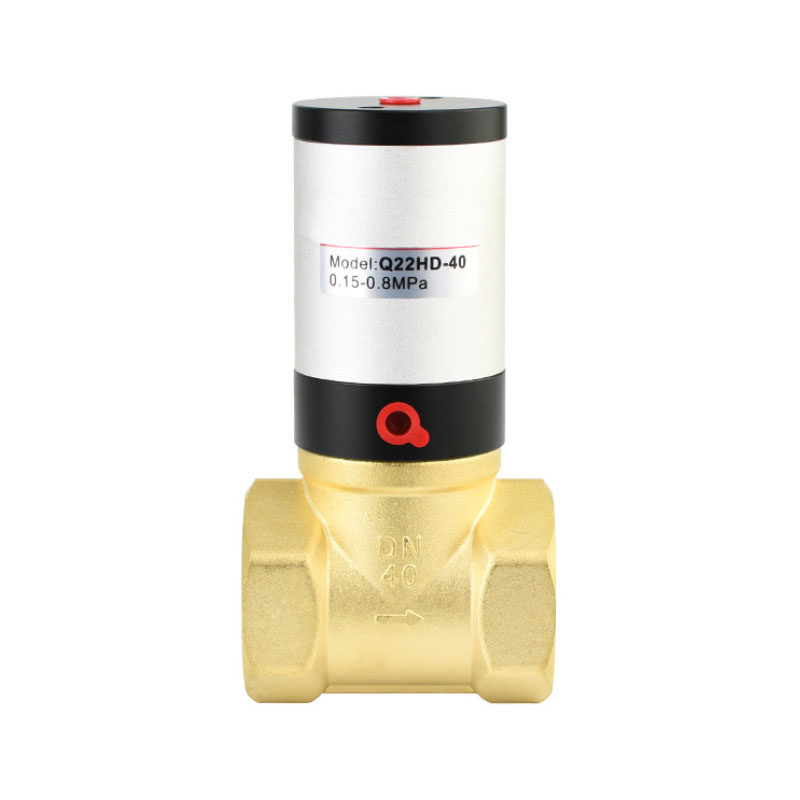

Pneumatic Flow Control Valve Q22HD

Q22HD Pneumatic Flow Control Valve has low starting pressure, high closing sensitivity, good sealing performance, and arbitrary inlet and outlet directions.

Port Size: G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: 0.2~0.6Mpa
Working Environment Temperature: 5~50℃
Material: Brass

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Pneumatic Flow Control Valve Q22HD

Q22HD Pneumatic Flow Control Valve has low starting pressure, high closing sensitivity, good sealing performance, and arbitrary inlet and outlet directions.
The types are divided into a variety of structures such as cut-off type, ram type, and dual position flow adjustable type. Now widely used in food, medicine, industry, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment.

Technical Parameters for Solenoid Operated Valve

Port Size: G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: 0.2~0.6Mpa
Working Environment Temperature: 5~50℃
Material: Brass

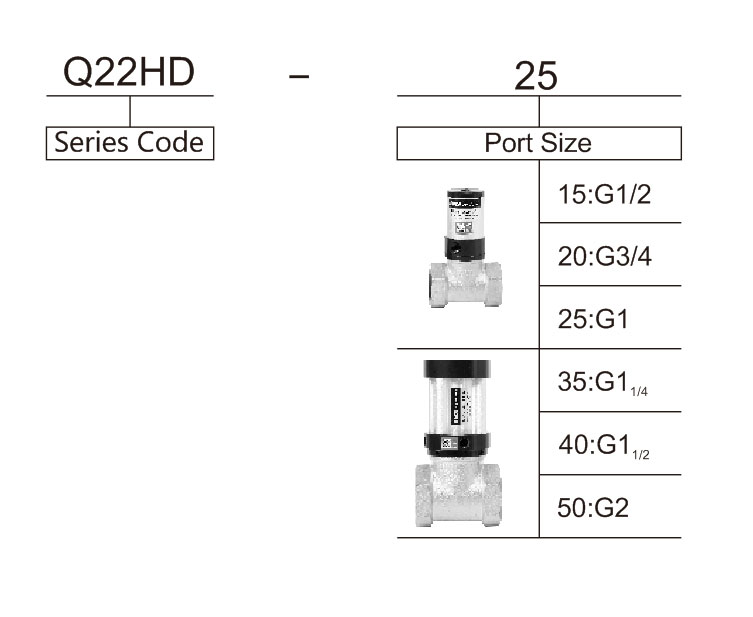

Ordering Code for Piston Pneumatic Control Valve Q22HD Series

Technical Parameter for Piston Pneumatic Control Valve Q22HD Series

Model Q22HD-15 Q22HD-20 Q22HD-25 Q22HD-35 Q22HD-40 Q22HD-50
Nominal diameter 15 20 25 35 40 50
Port Size G1/2 G3/4 G1 G1(1/4) G1(1/2) G2
Working Medium Air, water, oil, liquefied gas, free-running viscosity liquid
Operating Pressure 0.2~0.8MPa
Max. Proof Pressure 1.0MPa
Ambient and fluid temperature 5~50℃
Flow coefficient KV 4 5 10 25 40

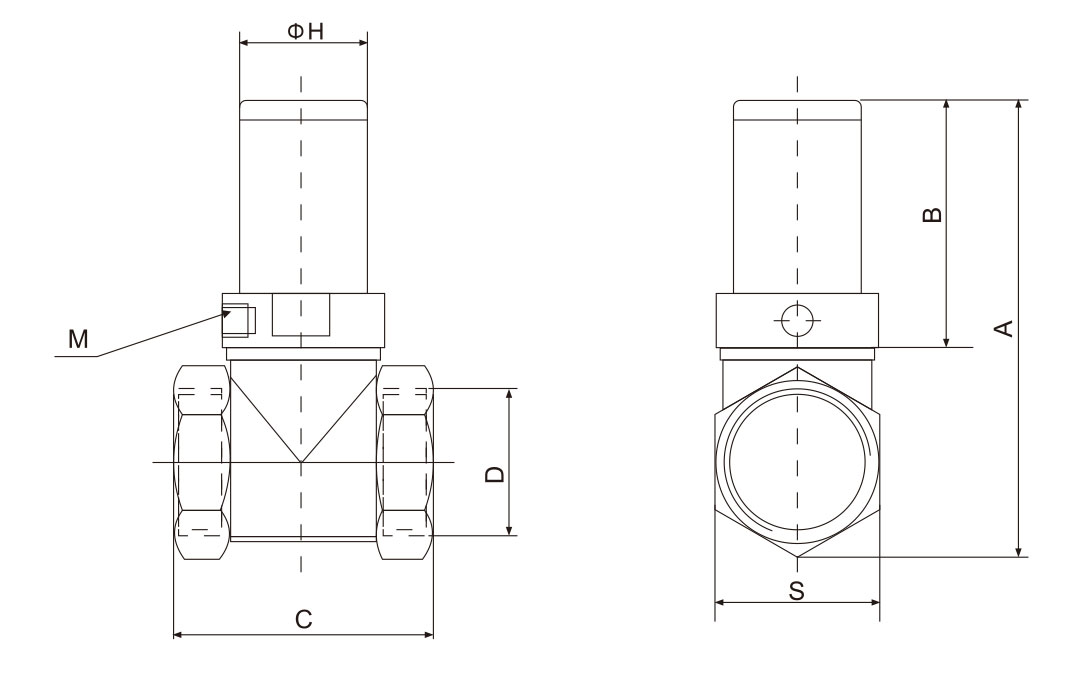

Overall Dimension for Piston Pneumatic Control Valve Q22HD Series

Model A B C D H M
Q22HD-15 96 62 48 G1/2 Φ30 G1/8
Q22HD-20 103.2 67 55 G3/4 Φ37 G1/8
Q22HD-25 117 67 66 G1 Φ37 G1/8
Q22HD-35 165 91 84 G1(1/4) Φ65 G1/8
Q22HD-40 165 91 84 G1(1/2) Φ65 G1/8
Q22HD-50 184 94 100 G2 Φ78 G1/4
