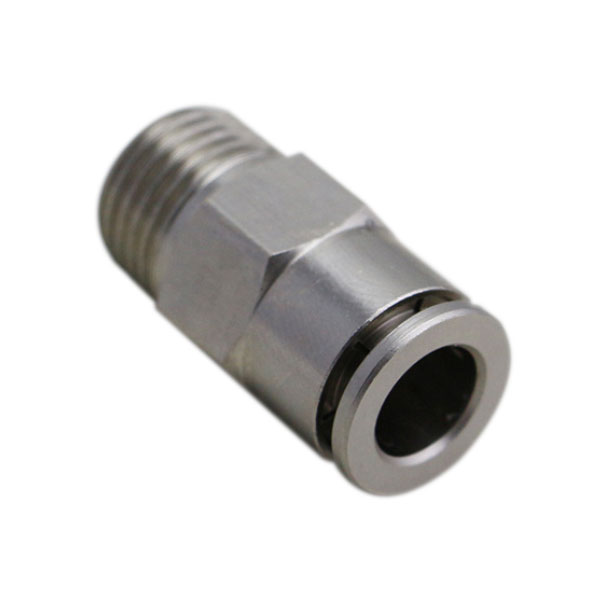

Product Description for Pneumatic Connector KGQ

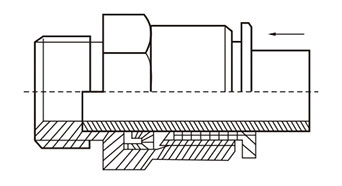

The plug-in Pneumatic Connector can be used in conjunction with the PA, PU and PE hoses, and connect the cylinder and the air valve, start logic element on the compressed air circuit. Brass manufacturing, nickel plating, using new structures of oil sealing ring, the working pressure is up to 1.6MPa, small size, beautiful appearance, quick disassembly and assembly, so that the starting system is greatly simplified. For other thread specifications, please specify when ordering.
* Note: All series of products are made of electroless nickel plating, so no copper ion is produced.

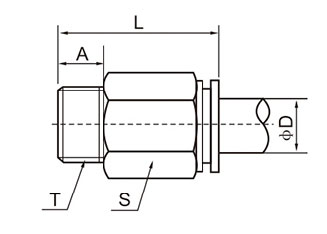

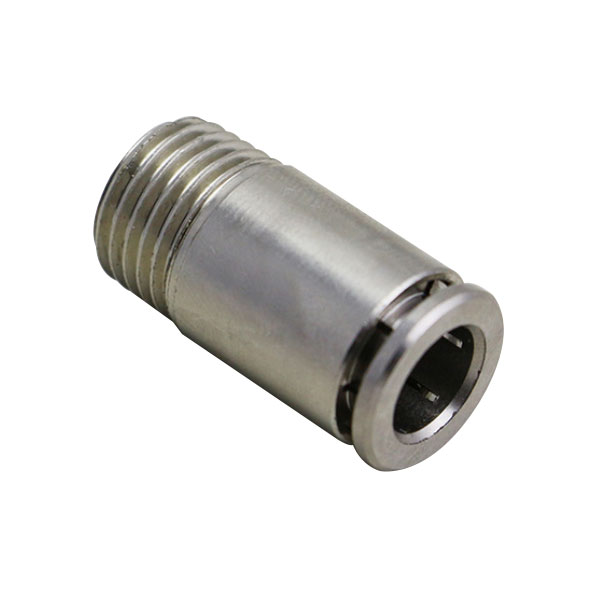

Male Straight Joint: KQGH
| Air Pipe ΦD |
Model |
Thread T |
S |
L |
A |
| Φ4 |
KQGH04-M5 |
M5×0.8 |
9 |
20 |
4 |
| KQGH04-M6 |
M6×1 |
9 |
20.8 |
4.8 |
| KQGH04-M8 |
M8×1 |
12 |
21 |
5 |
| KQGH04-M10 |
M10×1 |
12 |
23 |
7 |
| KQGH04-01S |
1/8" |
10 |
23 |
7.5 |
| Φ6 |
KQGH06-M6 |
M6×1 |
12 |
21 |
4.8 |
| KQGH06-M10 |
M10×1 |
12 |
23.2 |
7 |
| KQGH06-01S |
1/8" |
12 |
23.7 |
7.5 |
| KQGH06-02S |
1/4" |
14 |
25 |
10.5 |
| Φ8 |
KQGH08-M10 |
M10×1 |
14 |
27 |
7 |
| KQGH08-01S |
1/8" |
14 |
27 |
7.5 |
| KQGH08-02S |
1/4" |
14 |
27 |
10.5 |
| KQGH08-03S |
3/8" |
17 |
29 |
11 |
| Φ10 |
KQGH10-01S |
1/8" |
17 |
30 |
7.5 |
| KQGH10-02S |
1/4" |
17 |
30 |
10.5 |
| KQGH10-03S |
3/8" |
17 |
30 |
11 |
| KQGH10-04S |
1/2" |
22 |
30 |
14.2 |
| Φ12 |
KQGH10-02S |
1/4" |
19 |
30 |
10.5 |
| KQGH10-03S |
3/8" |
22 |
30 |
11 |
| KQGH10-04S |
1/2" |
27 |
32 |
14.2 |

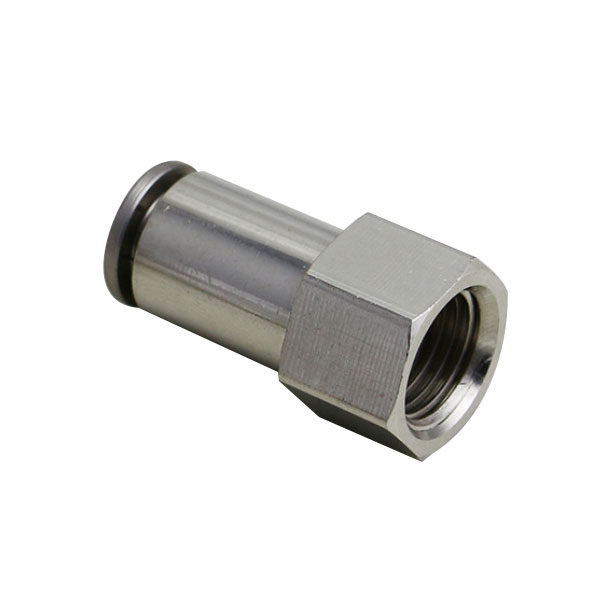

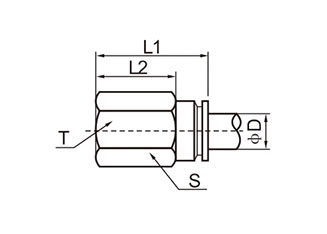

Female Straight Joint: KQGF
| Air Pipe ΦD |
Model |
Thread T |
S |
L1 |
L2 |
| Φ4 |
KQGF04-M6 |
M6×1 |
10 |
28 |
14 |
| KQGF04-01 |
1/8" |
12 |
28 |
14 |
| Φ6 |
KQGF06-M10 |
M10×1 |
14 |
28 |
14 |
| KQGF06-01 |
1/8" |
14 |
28 |
14 |
| Φ8 |
KQGF08-M14 |
M14×1.5 |
17 |
33 |
15 |
| KQGF08-02 |
1/4" |
17 |
33 |
15 |
| Φ10 |
KQGF10-M14 |
M14×1.5 |
17 |
33 |
15 |
| KQGF10-03 |
3/8" |
19 |
33 |
15 |
| Φ12 |
KQGF12-04 |
1/2" |
27 |
35 |
17 |
| KQGF12-M22 |
M22×1.5 |
27 |
35 |
17 |

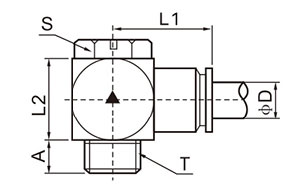

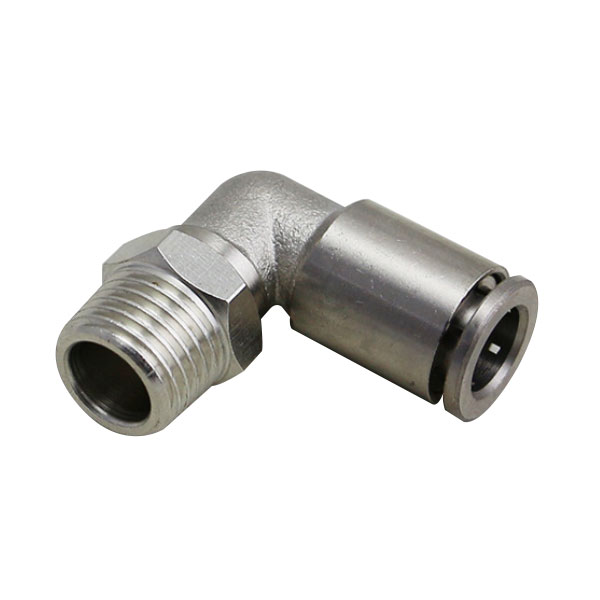

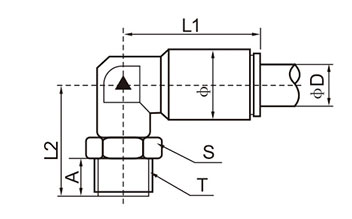

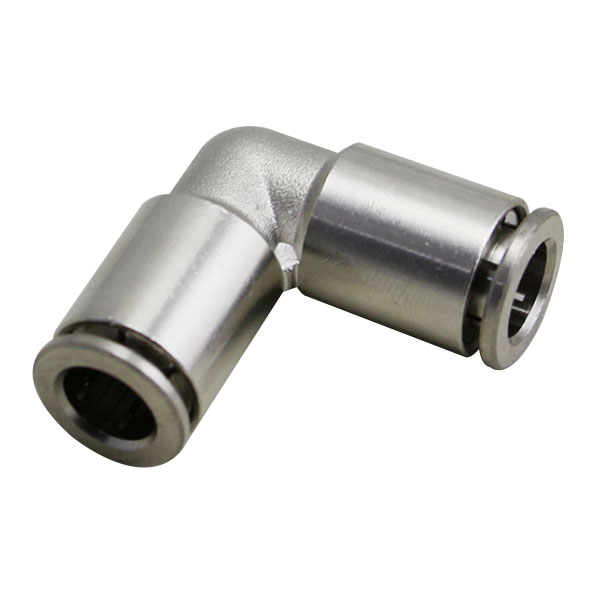

Female Elbow Joint: KQGL
| Air Pipe ΦD |
Model |
Thread T |
S |
L1 |
L2 |
Φ |
A |
| Φ4 |
KQGL04-M5 |
M5×0.8 |
10 |
19 |
13 |
9 |
4 |
| KQGL04-M6 |
M6×1 |
10 |
19 |
15 |
9 |
4.8 |
| KQGL04-01S |
1/8" |
10 |
19 |
15.2 |
9 |
7.5 |
| KQGL04-02S |
1/4" |
14 |
19 |
17 |
9 |
10.5 |
| Φ6 |
KQGL06-M6 |
M6×1 |
12 |
20 |
15 |
11 |
4.8 |
| KQGL06-M10 |
M10×1 |
12 |
20 |
17 |
11 |
7 |
| KQGL06-01S |
1/8" |
10 |
20 |
15.5 |
11 |
7.5 |
| KQGL06-02S |
1/4" |
14 |
20 |
20.5 |
11 |
10.5 |
| Φ8 |
KQGL08-M10 |
M10×1 |
12 |
25 |
25 |
13 |
7 |
| KQGL08-01S |
1/8" |
14 |
25 |
25.5 |
13 |
7.5 |
| KQGL08-02S |
1/4" |
14 |
25 |
28.5 |
13 |
10.5 |
| KQGL08-03S |
3/8" |
12 |
25 |
29 |
13 |
11 |
| Φ10 |
KQGL10-01S |
1/8" |
14 |
29 |
29 |
17 |
7.5 |
| KQGL10-02S |
1/4" |
17 |
29 |
29.5 |
17 |
10.5 |
| KQGL10-03S |
3/8" |
19 |
29 |
32 |
17 |
11 |
| KQGL10-04S |
1/2" |
22 |
29 |
35 |
17 |
14.2 |
| Φ12 |
KQGL12-02S |
1/4" |
19 |
29 |
29.5 |
18 |
10.5 |
| KQGL12-03S |
3/8" |
27 |
29 |
32 |
18 |
11 |
| KQGL12-04S |
1/2" |
22 |
29 |
35 |
18 |
14.2 |

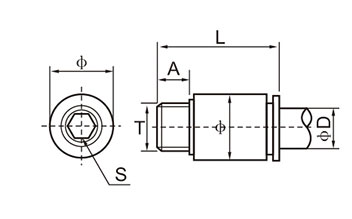

Hex Socket Joint: KQGS
| Air Pipe ΦD |
Model |
Thread T |
L |
Φ |
A |
S |
| Φ4 |
KQGS04-M5 |
M5×0.8 |
15 |
9 |
4 |
2.5 |
| KQGS04-M6 |
M6×1 |
15.8 |
9 |
4.8 |
2.5 |
| Φ6 |
KQGS06-M6 |
M6×1 |
17 |
12 |
4.8 |
2.5 |
| KQGS06-M10 |
M10×1 |
19.2 |
12 |
7 |
3 |
| KQGS06-01S |
1/8" |
19.7 |
12 |
7.5 |
3 |
| Φ8 |
KQGS08-M10 |
M10×1 |
26 |
14 |
7 |
5 |
| KQGS08-02S |
1/4" |
24.5 |
14 |
10.5 |
5 |
| Φ10 |
KQGS10-02S |
1/4" |
26 |
16 |
10.5 |
5 |
| KQGS10-03S |
3/8" |
26.5 |
16 |
10 |
6 |
| Φ12 |
KQGS12-02S |
1/4" |
31 |
18 |
10.5 |
8 |
| KQGS12-02S |
3/8" |
31.5 |
18 |
11 |
8 |

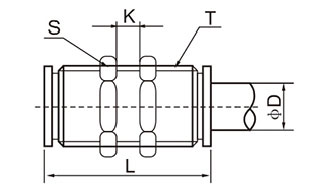

Bulkhead Joint: KQGE
| Air Pipe ΦD |
Model |
Thread T |
S |
L1 |
K |
| Φ4 |
KQGE04-00 |
M10×1 |
12 |
39 |
9 |
| Φ6 |
KQGE06-00 |
M14×1 |
14 |
35 |
10 |
| Φ8 |
KQGE08-00 |
M16×1 |
19 |
37 |
13 |
| Φ10 |
KQGE10-00 |
M18×1 |
22 |
40 |
13 |
| Φ12 |
KQGE12-00 |
M20×1 |
27 |
45 |
13 |

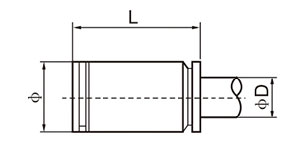

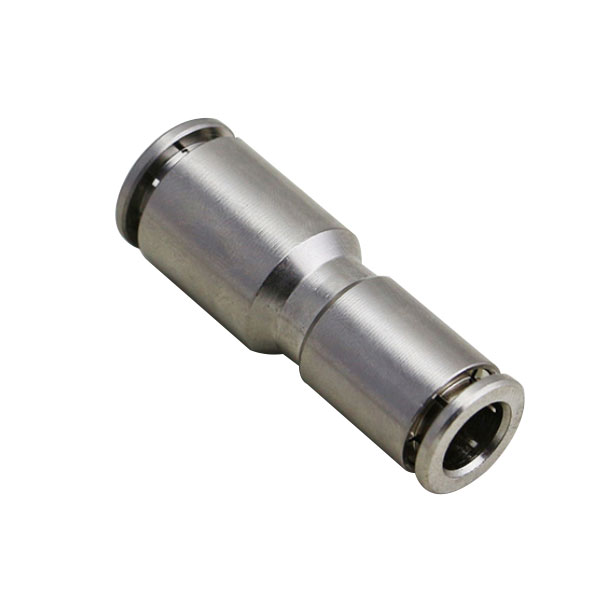

Straight Joint: KQGL
| Air Pipe ΦD |
Model |
Φ |
L |
| Φ4 |
KQGL04-00 |
10 |
19 |
| Φ6 |
KQGL06-00 |
12 |
20 |
| Φ8 |
KQGL08-00 |
14 |
25 |
| Φ10 |
KQGL010-00 |
16 |
29 |
| Φ12 |
KQGL012-00 |
18 |
34 |
Straight Joint: KQGH
| Air Pipe ΦD |
Model |
Φ |
H |
| Φ4 |
KQGH04-00 |
10 |
30 |
| Φ6 |
KQGH06-00 |
12 |
35 |
| Φ8 |
KQGH08-00 |
14 |
37 |
| Φ10 |
KQGH010-00 |
16 |
40 |
| Φ12 |
KQGH012-00 |
18 |
45 |
Single Outer Hex Joint: KQGV
| Air Pipe ΦD |
Model |
Thread T |
S1 |
L1 |
L2 |
A |
| Φ4 |
KQGV04-M5 |
M5×0.8 |
10 |
19 |
10 |
4 |
| Φ4 |
KQGV04-M6 |
M6×1 |
10 |
19 |
10 |
4.8 |
| Φ6 |
KQGV04-M6 |
M6×1 |
12 |
20 |
12 |
4.8 |
| Φ6 |
KQGV06-01S |
1/8" |
12 |
20 |
12 |
7.5 |
| Φ8 |
KQGV08-01S |
1/8" |
14 |
25 |
14 |
7.5 |
Male Y-type Joint: KQGY
| Air Pipe ΦD |
Model |
Thread T |
S |
L1 |
L2 |
A |
| Φ4 |
KQGY04-M5 |
M5×0.8 |
10 |
19 |
11 |
4 |
| KQGY04-M6 |
M6×1 |
10 |
19 |
11.8 |
4.8 |
| KQGY04-01S |
1/8" |
10 |
19 |
19 |
7.5 |
| Φ6 |
KQGY06-M10 |
M10×1 |
12 |
20 |
20 |
7 |
| KQGY06-01S |
1/8" |
10 |
20 |
20.5 |
7.5 |
| KQGY06-02S |
1/4" |
14 |
20 |
23.5 |
10.5 |
| Φ8 |
KQGY08-01S |
1/8" |
14 |
25 |
25 |
7.5 |
| KQGY08-02S |
1/4" |
14 |
25 |
28.5 |
10.5 |
| KQGY08-03S |
3/8" |
17 |
25 |
29 |
11 |
| Φ10 |
KQGY10-02S |
1/4" |
17 |
29 |
29 |
10.5 |
| KQGY10-03S |
3/8" |
19 |
29 |
29.5 |
11 |
| KQGY10-04S |
1/2" |
19 |
29 |
32.7 |
14.2 |
| Φ12 |
KQGY12-02S |
1/4" |
19 |
30 |
32 |
10.5 |
| KQGY12-03S |
3/8" |
22 |
30 |
32.5 |
11 |
| KQGY12-04S |
1/2" |
27 |
30 |
35.7 |
14.2 |

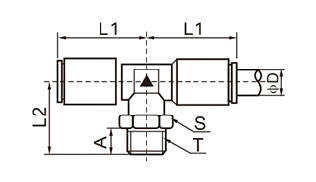

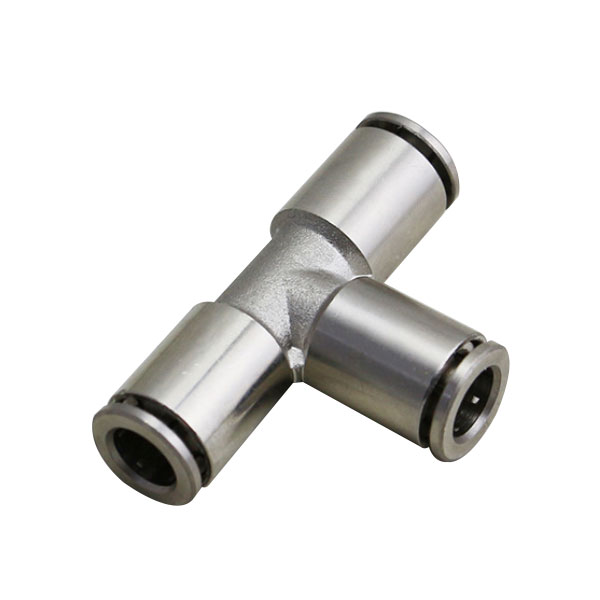

T-type Tee Joint: KQGT
| Air Pipe ΦD |
Model |
Φ |
L |
| Φ4 |
KQGT04-00 |
10 |
19 |
| Φ6 |
KQGT06-00 |
12 |
20 |
| Φ8 |
KQGT08-00 |
14 |
25 |
| Φ10 |
KQGT010-00 |
16 |
29 |
| Φ12 |
KQGT012-00 |
18 |
34 |
Male T-type Joint: KQGT
| Air Pipe ΦD |
Model |
Thread T |
S |
L1 |
L2 |
A |
| Φ4 |
KQGT04-M5 |
M5×0.8 |
10 |
19 |
11 |
4 |
| KQGT04-M6 |
M6×1 |
10 |
19 |
11.8 |
4.8 |
| KQGT04-01S |
1/8" |
10 |
19 |
19 |
7.5 |
| Φ6 |
KQGT06-M10 |
M10×1 |
12 |
20 |
20 |
7 |
| KQGT06-01S |
1/8" |
10 |
20 |
20.5 |
7.5 |
| KQGT06-02S |
1/4" |
14 |
20 |
23.5 |
10.5 |
| Φ8 |
KQGT08-01S |
1/8" |
14 |
25 |
25 |
7.5 |
| KQGT08-02S |
1/4" |
14 |
25 |
28.5 |
10.5 |
| KQGT08-03S |
3/8" |
17 |
25 |
29 |
11 |
| Φ10 |
KQGT10-02S |
1/4" |
17 |
29 |
29 |
10.5 |
| KQGT10-03S |
3/8" |
19 |
29 |
29.5 |
11 |
| KQGT10-04S |
1/2" |
19 |
29 |
32.7 |
14.2 |
| Φ12 |
KQGT12-02S |
1/4" |
19 |
30 |
32 |
10.5 |
| KQGT12-03S |
3/8" |
22 |
30 |
32.5 |
11 |
| KQGT12-04S |
1/2" |
27 |
30 |
32.7 |
14.2 |
