LA750 Miniature Linear Actuator

LA750 Mini Electric Linear Actuator

LA750 Miniature Linear Actuator is also called Mini Electric Linear Actuator. Miniature Linear Actuator is often used in various fields of industry. The maximum thrust of the product can produce 750N.

Input Volatge: DC12~19V / DC24~32V
Maximum load：1500N/150kg
IP Grade: IP54
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 30~800mm

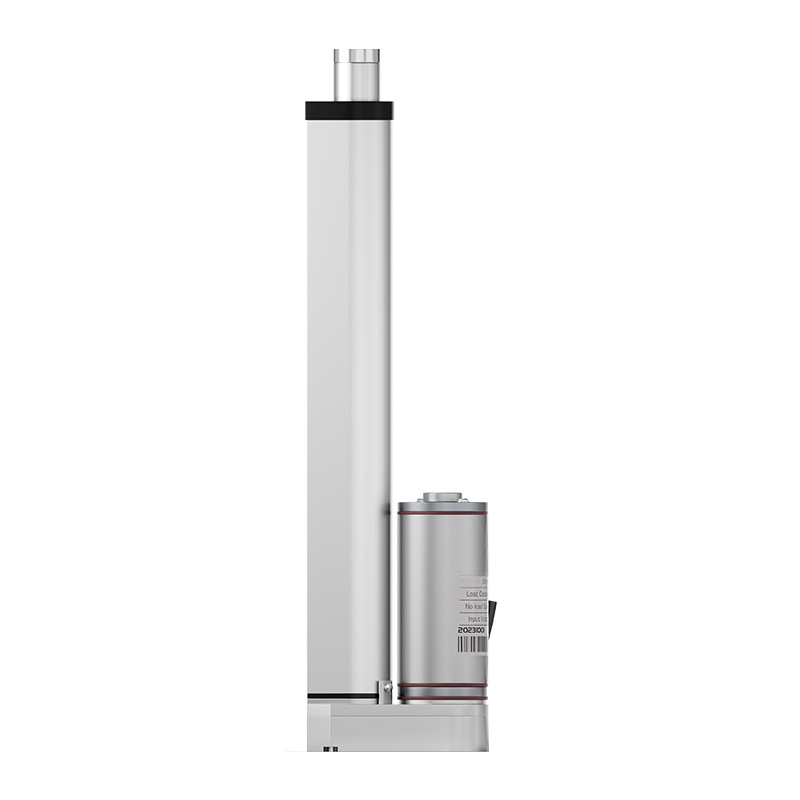

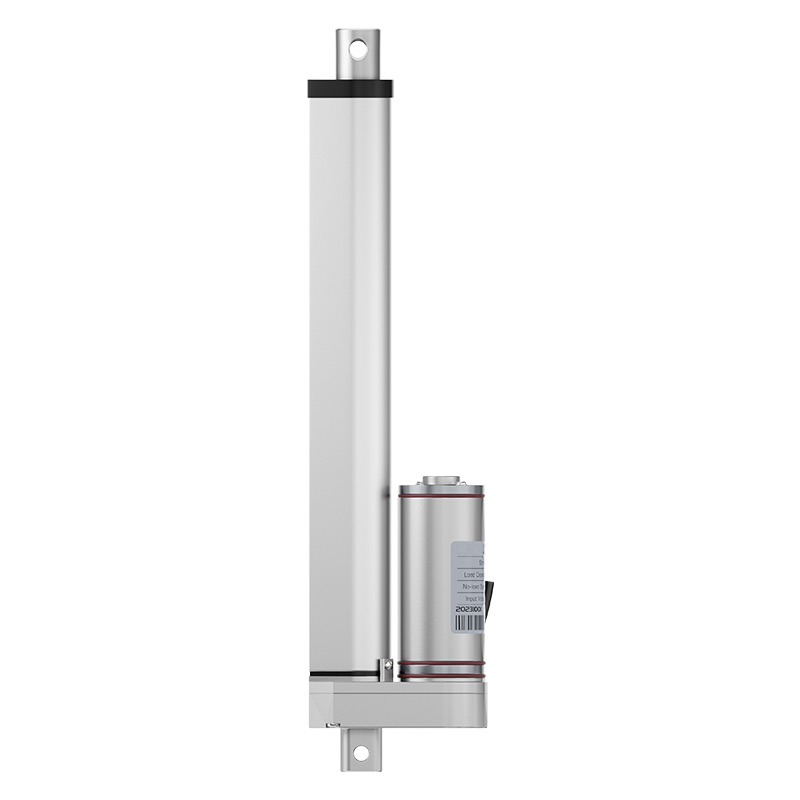

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Features

Lead Screw Type：Trapezoidal thread
Input voltage：DC 12V/24V
Maximum load：1500N/150kg
Maximum Speed：90mm/s
Maximum Stroke：800mm
Limit Switches：Built-in
Protection Level：IP54
Operating Frequency：10% max 2min. continuous use
Operating Temperature： 0°C~+40°C
Manual function: not support

Introduction

LA750 electric linear actuator was first developed. The product has no gearbox structure. The motor directly drives the drive shaft to work. The noise is relatively large. Our company has reduced the noise through multiple modifications to the structure and improved the load capacity of the product. The maximum load force can reach 1500N, and the self-locking force is 100KG,Noise reduced from 50db to 40dB.
This product is suitable for construction machinery, agricultural machinery, environmental protection and other industries.

Technical Parameters

Voltage DC12~19V / DC24~32V
No-load Speed (MM/S) 5 10 20 30 50 90
Load Push Capacity (N) 1500 1000 500 300 200 100
Load Pull Capacity (N) 1000 700 350 200 150 70
Self-locking Capacity (N) 1000 700 350 200 150 70
Stroke Length 30mm-800mm
Motor Power 20W
Limit Switches Built-in
Material Aluminum
Noise 45~60dB
Inner Tube Aluminum Tube
Operating Temperature 0°C~+40°C
Operating Frequency 10% max 2min. continuous use
Lead Screw Type Type T
Mechanical Life More than 30,000 times
Optional Configuration: 1.Magnetic Induction Switch 2.Upper and lower limit feedback

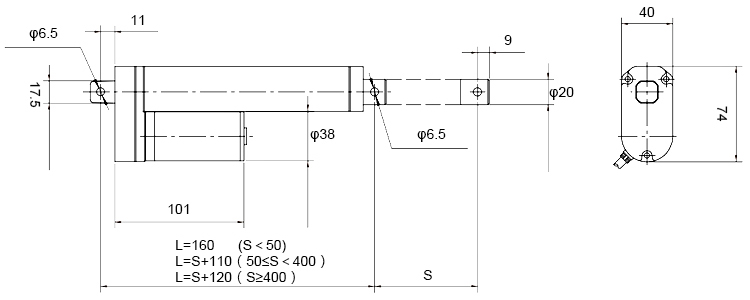

Outline Dimension Drawing

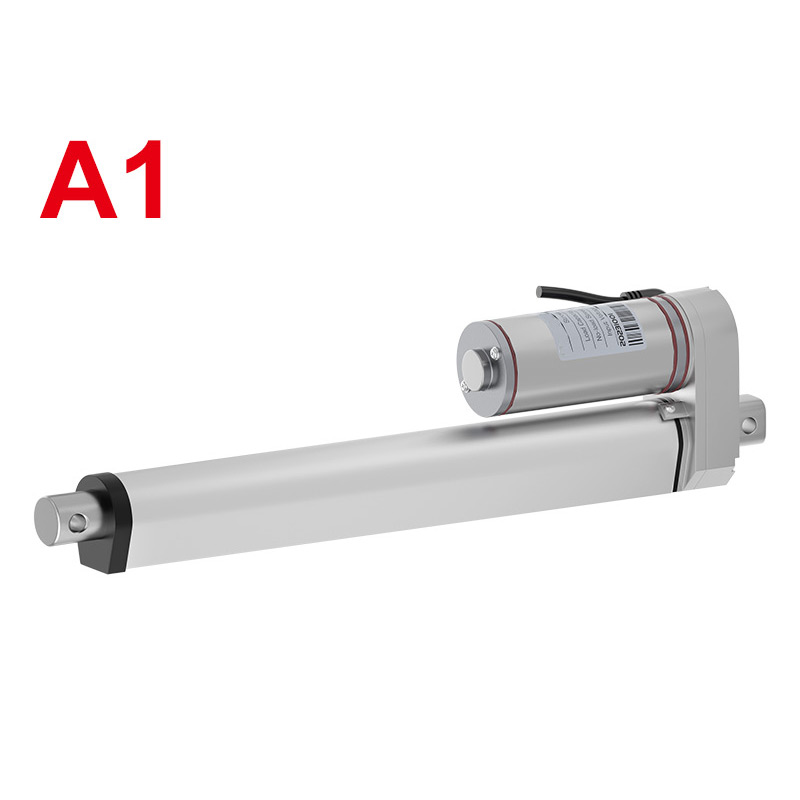

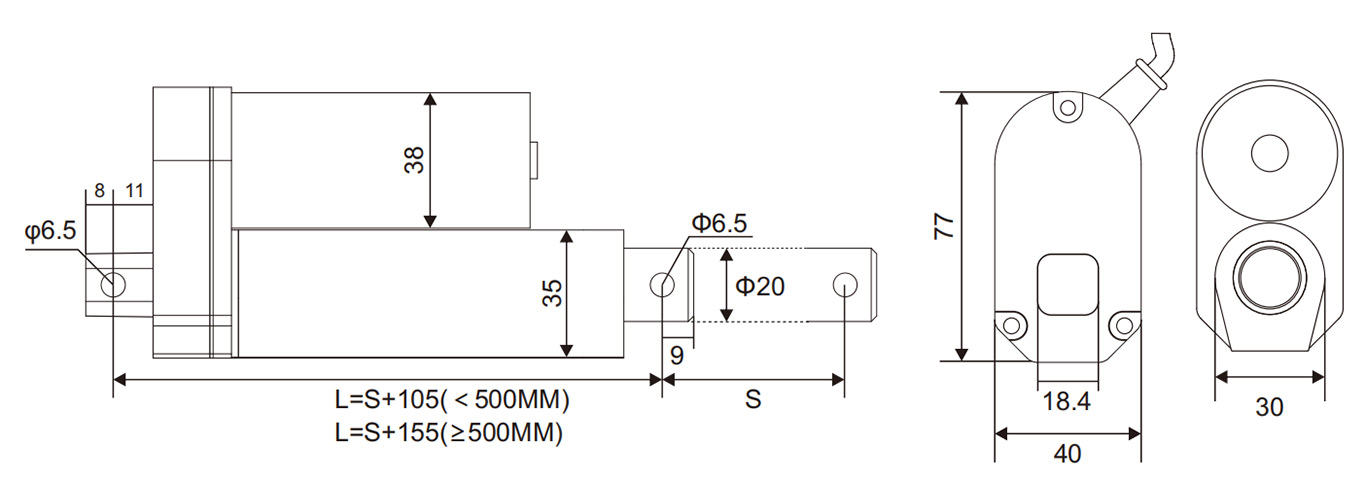

LA750-A1

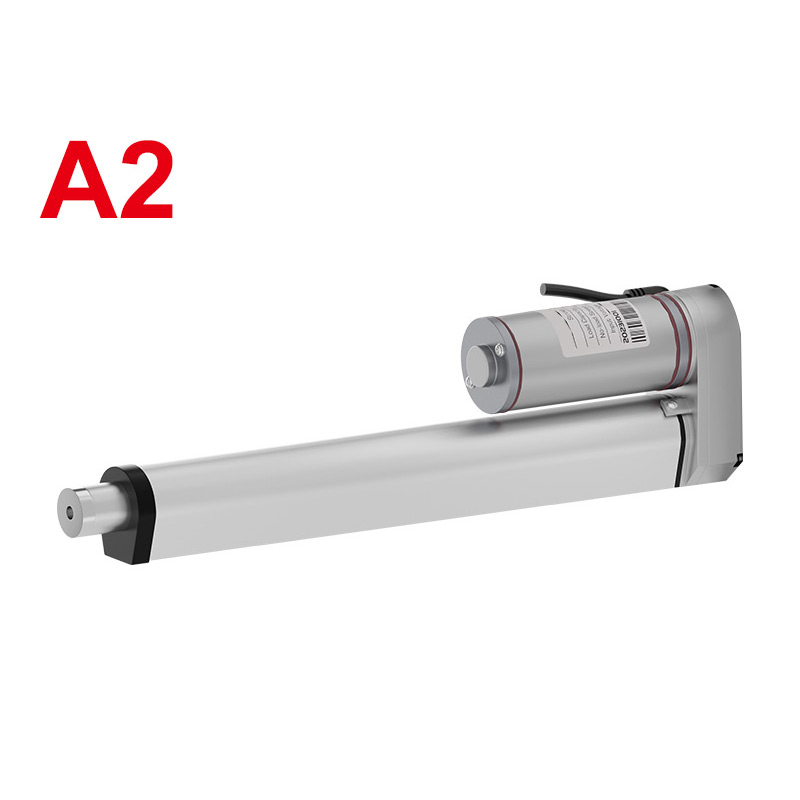

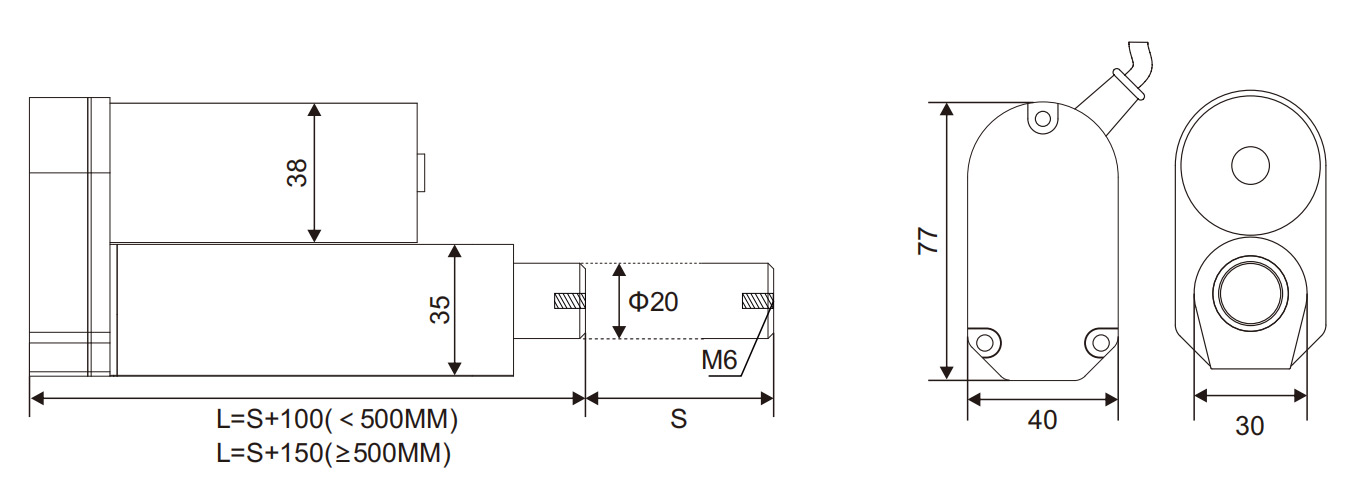

LA750-A2
