Pneumatic Mechanical Valves MV

MV Mechanical Valves A variety of structural shape control heads, convenient to use under different conditions

Port Size: G1/8
Operating Pressure: Water and oil: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

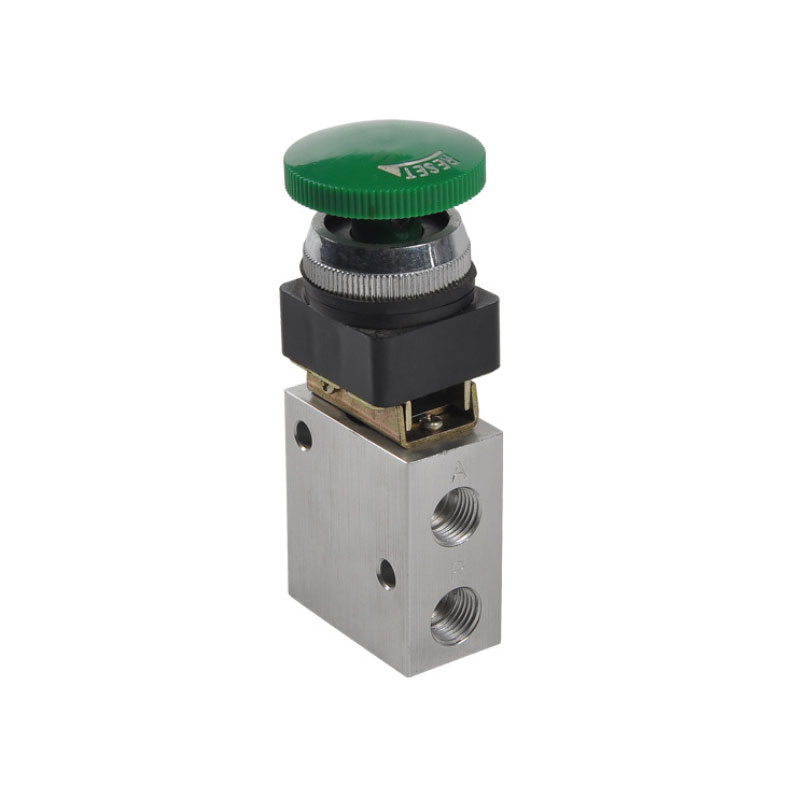

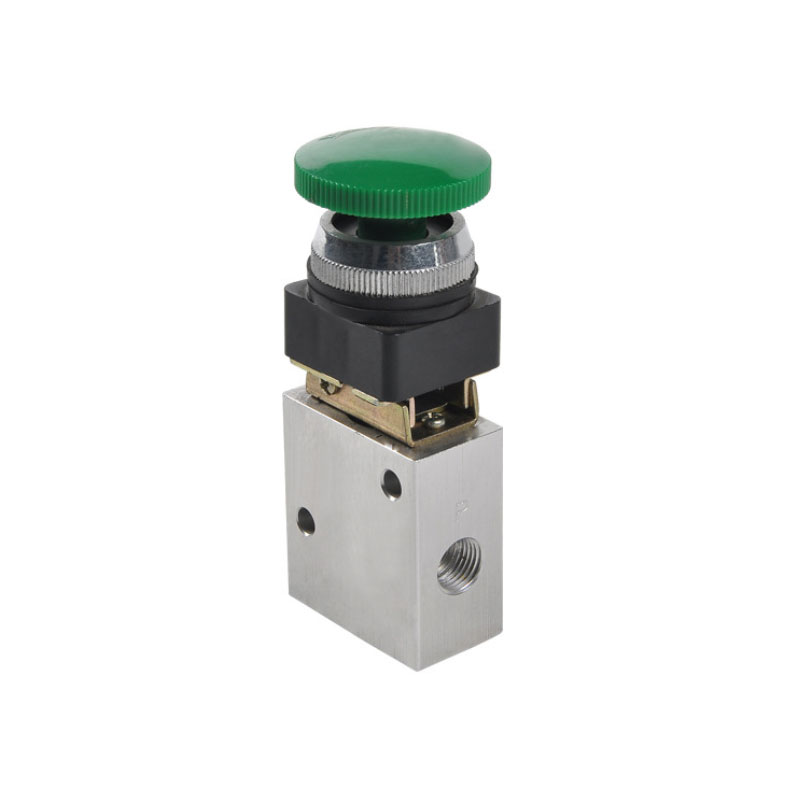

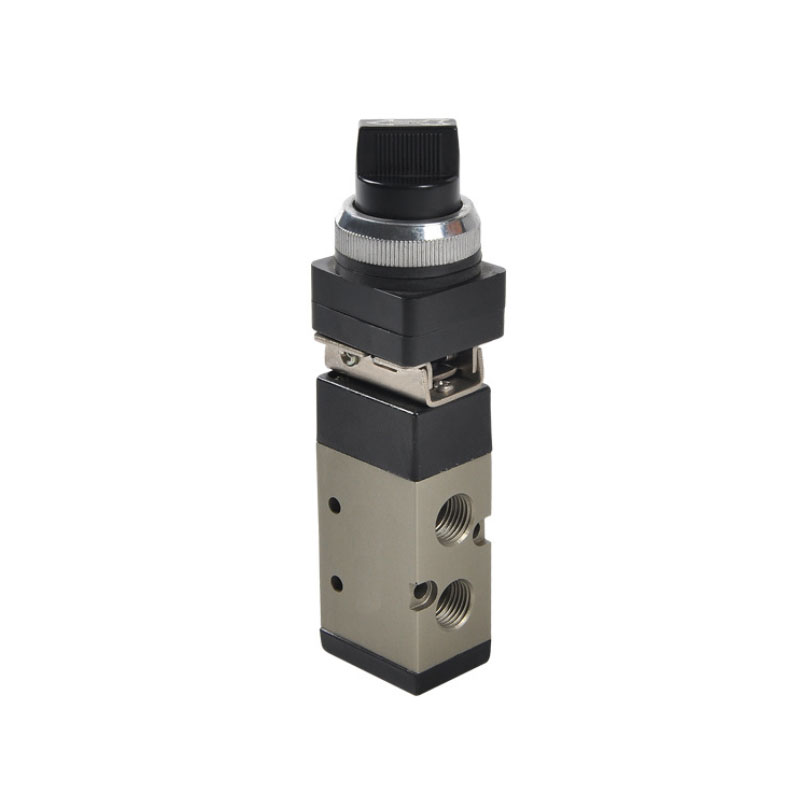

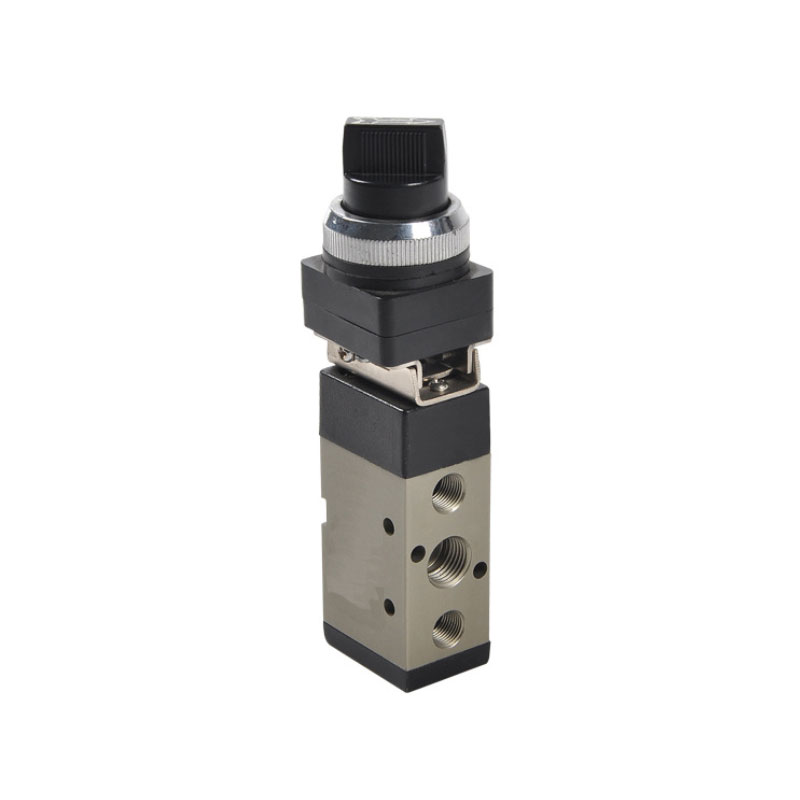

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MV Mechanical Valves

MV Mechanical Valves A variety of structural shape control heads, convenient to use under different conditions;
Good sealing, flexible reversing, no need to lubricate;
A variety of installation methods, easy to install and use;
Special surface oxidation treatment;
Precision construction machinery, to ensure the accuracy of each size;
Some of the control heads are made of metal and are durable.

Technical Parameters for MV Mechanical Valves

Port Size: G1/8
Operating Pressure: Water and oil: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

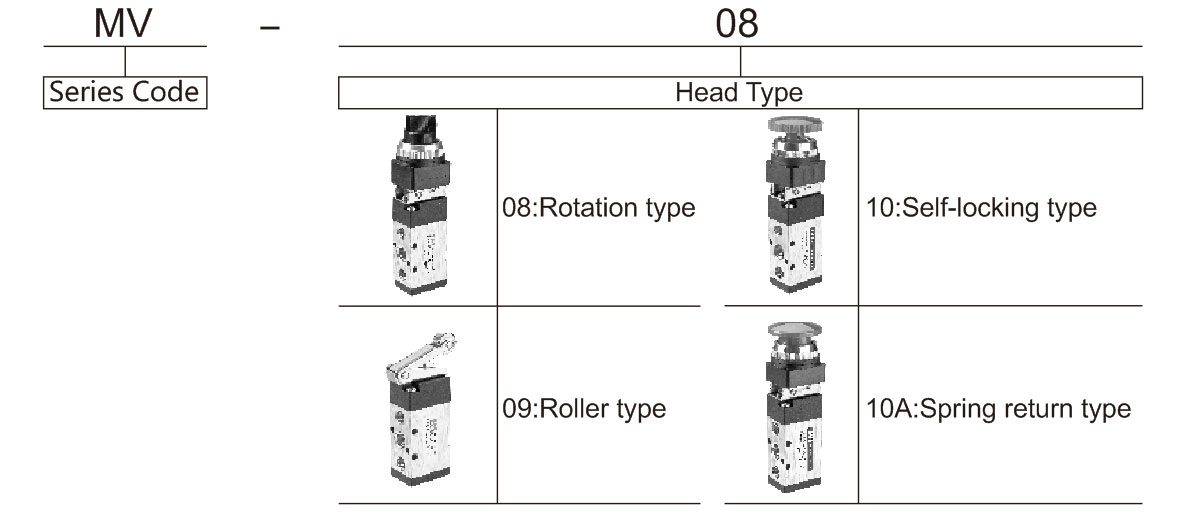

Ordering Code for Mechanical Valve MV

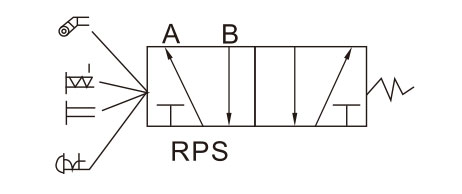

Symbol for Mechanical Valve MV Series

Technical Parameter for Mechanical Valve MV

Model MV-08 MV-09 MV-10 MV-10A
Working Medium Compressed Air
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Ambient Temperature 0~70℃
Port Size G1/8
Valve Type 2-position 5-port
Main parts material Body Aluminium Alloy
Sealing element NBR

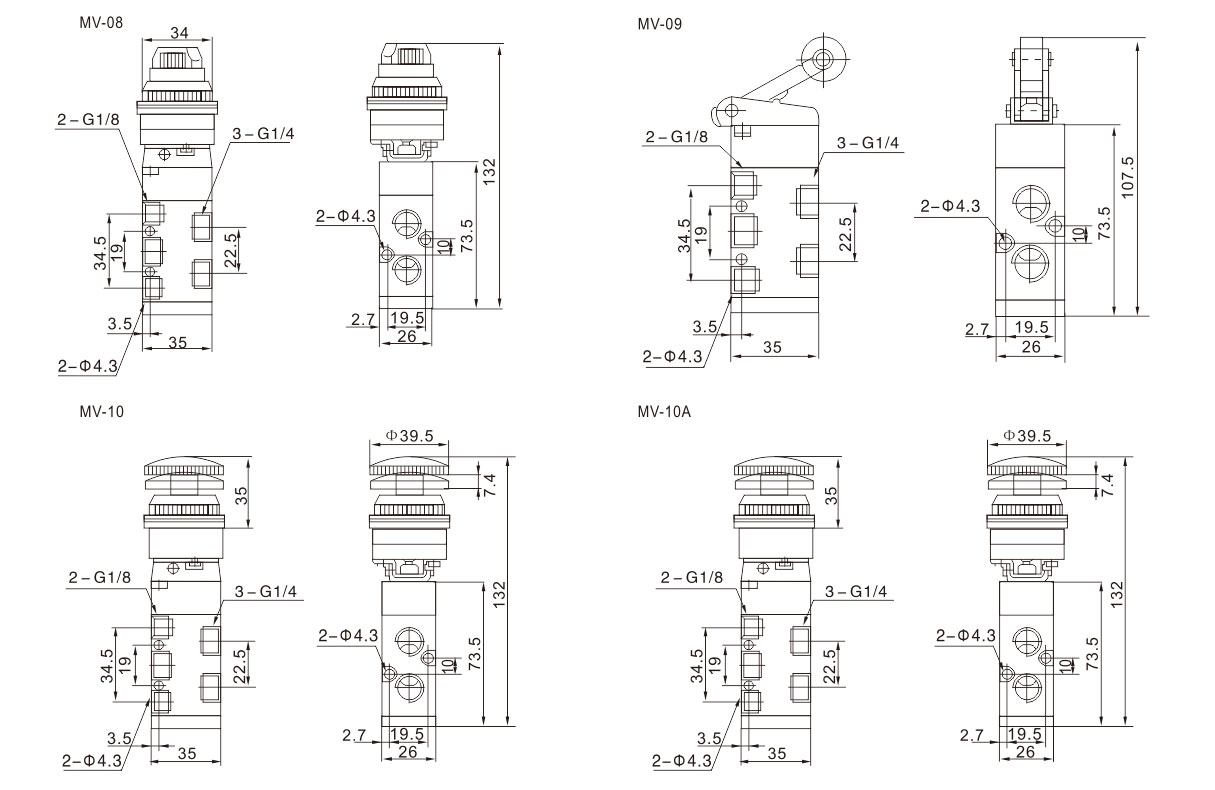

Overall Dimension

Keywords:

MV Mechanical Valves | Pneumatic Mechanical Valves
