LA36 Electric Linear Actuator

LA36 Electric Linear Actuator

LA36 is an electric linear actuator specially designed for fire-fighting distribution boxes and window openings. This product has only one motor specification and screw rod, load force 1000N, speed 8MMS, and has a strong self-locking ability.

Input Volatge: DC24~32V
Maximum load：1000N/100kg
IP Grade: IP65
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 100~1000mm

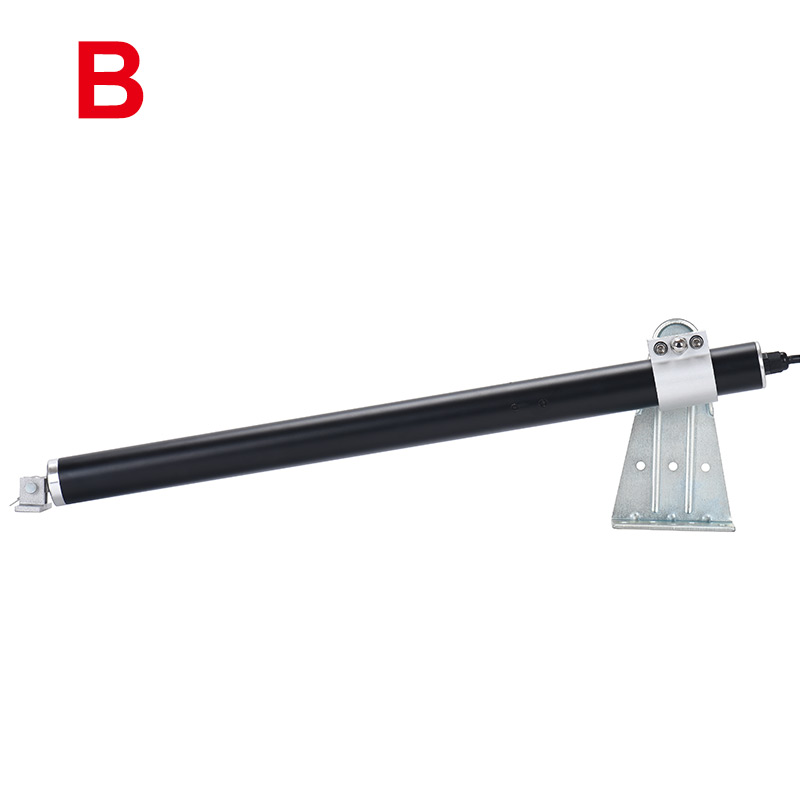

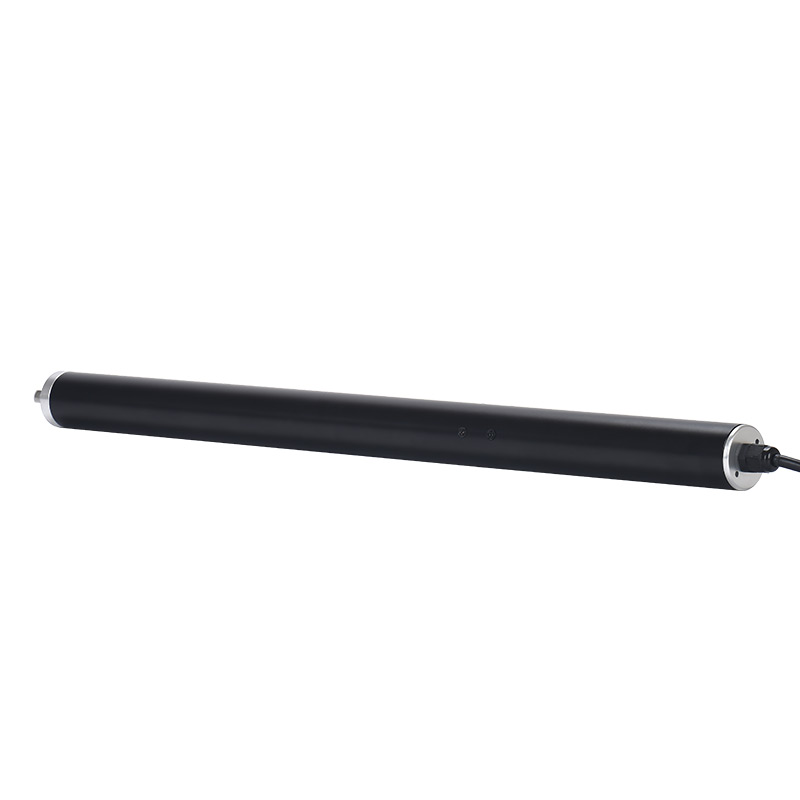

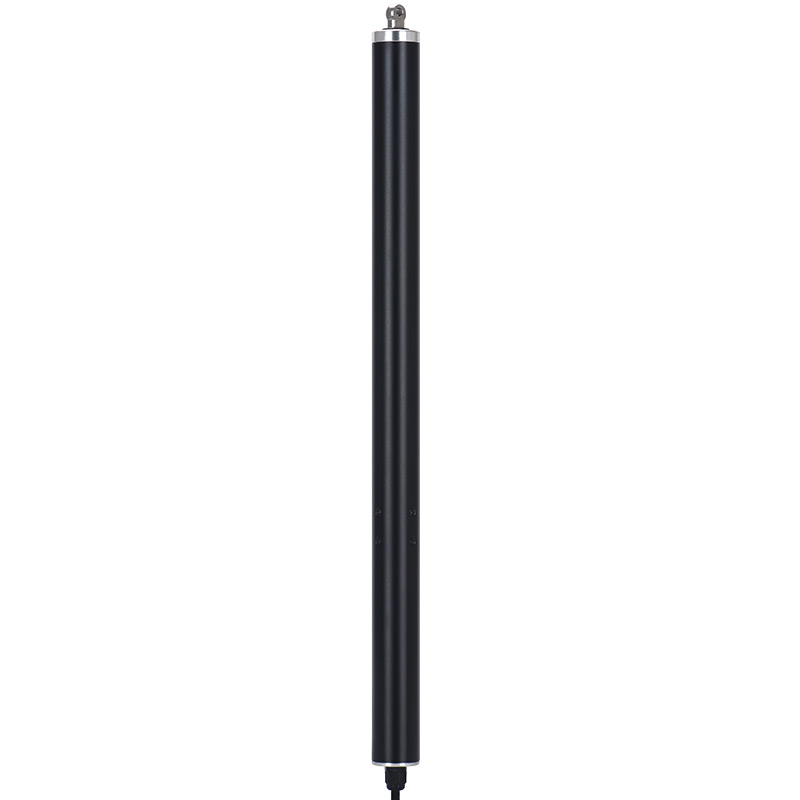

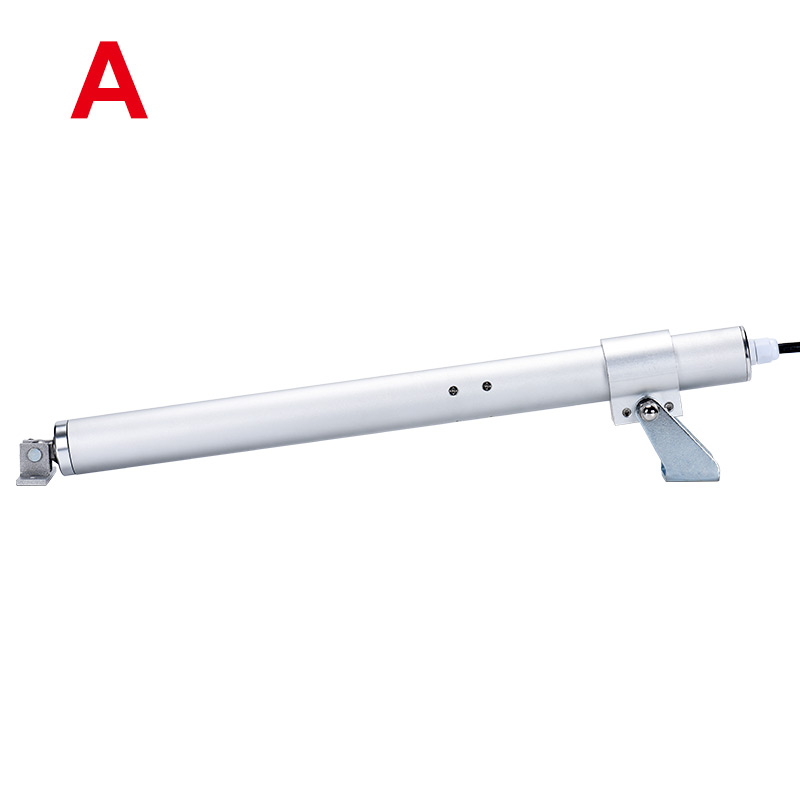

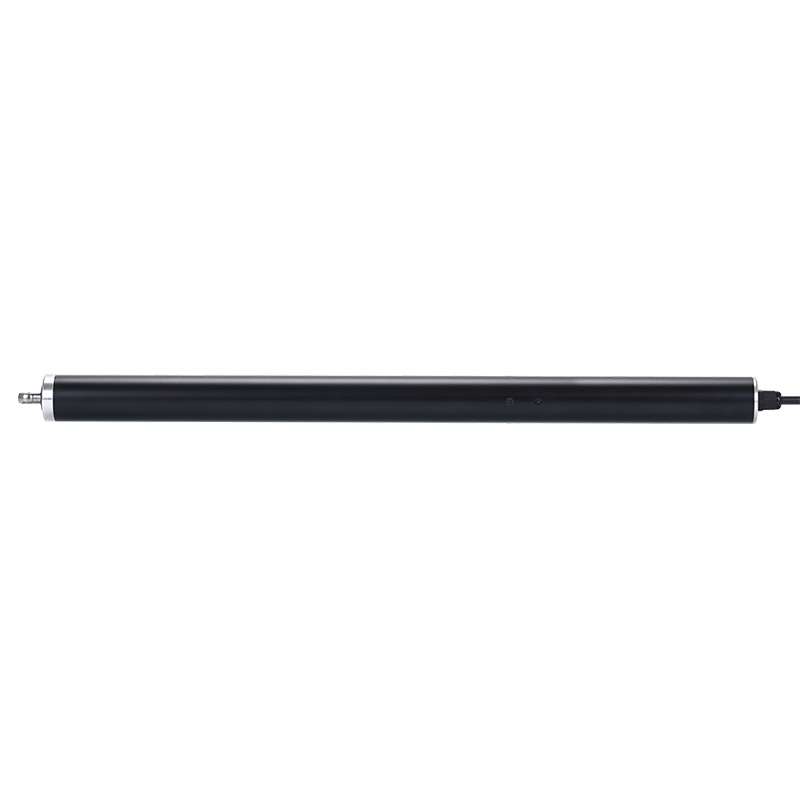

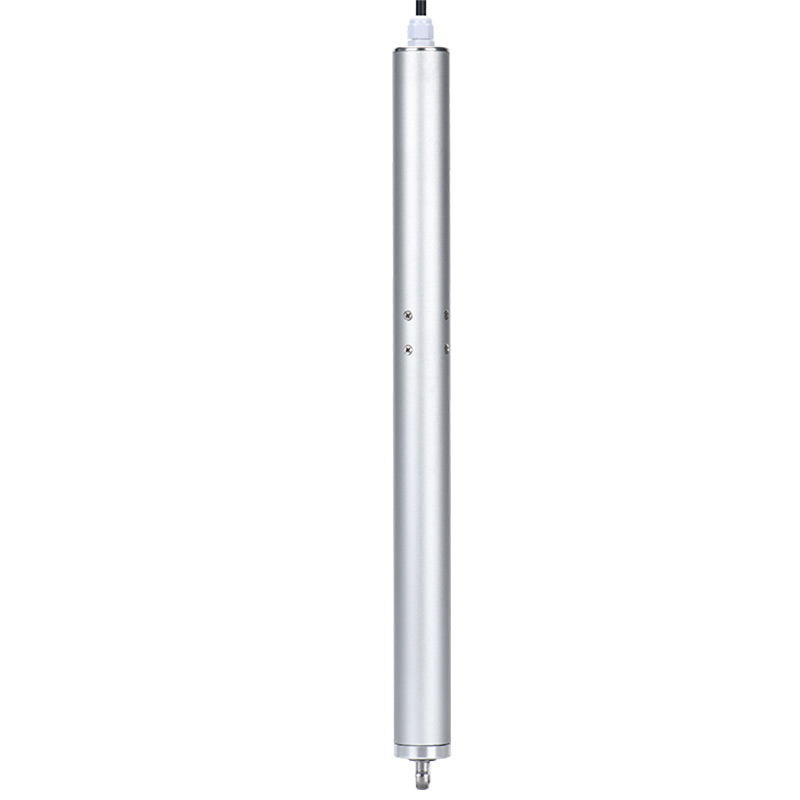

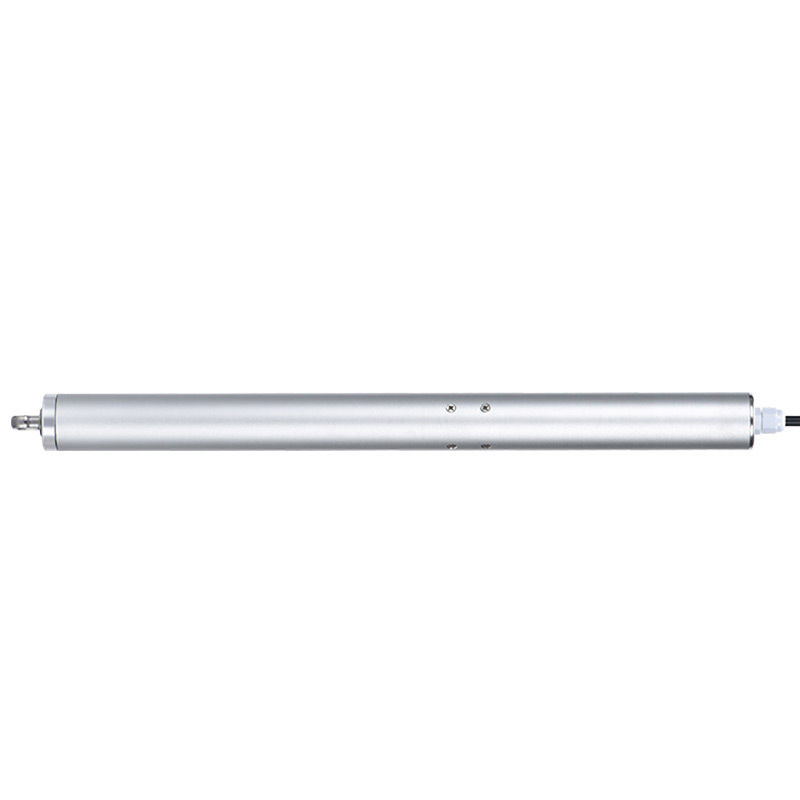

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Introduction

LA36 is an electric linear actuator specially designed for fire-fighting distribution boxes and window openings. This product has only one motor specification and screw rod, load force 1000N, speed 8MMS, and has a strong self-locking ability. So it will not automatically fall down if under less than 400kg overwhelming force. The actuator can be used with a synchronous controller to realize large-load door and window equipment.

Technical Parameters

VoltageDC24~32V
Load Pull Capacity (N)800N
Load Push Capacity (N)1000N
Self-locking Capacity (N)4000N
No-load Speed8mm/s
Stroke Length100~1000mm
Motor Power48W
Operating Temperature-15℃ ~ +75℃
Limit SwitchBuilt-in
IP GradeIP65
Material304 Stainless Steel + Aluminum
Noise<30dB
Operating Frequency10% max 2 min continuous use
Inner TubeAluminum Tube
Lead Screw TypeType T
Mechanical LifeMore than 30,000 times

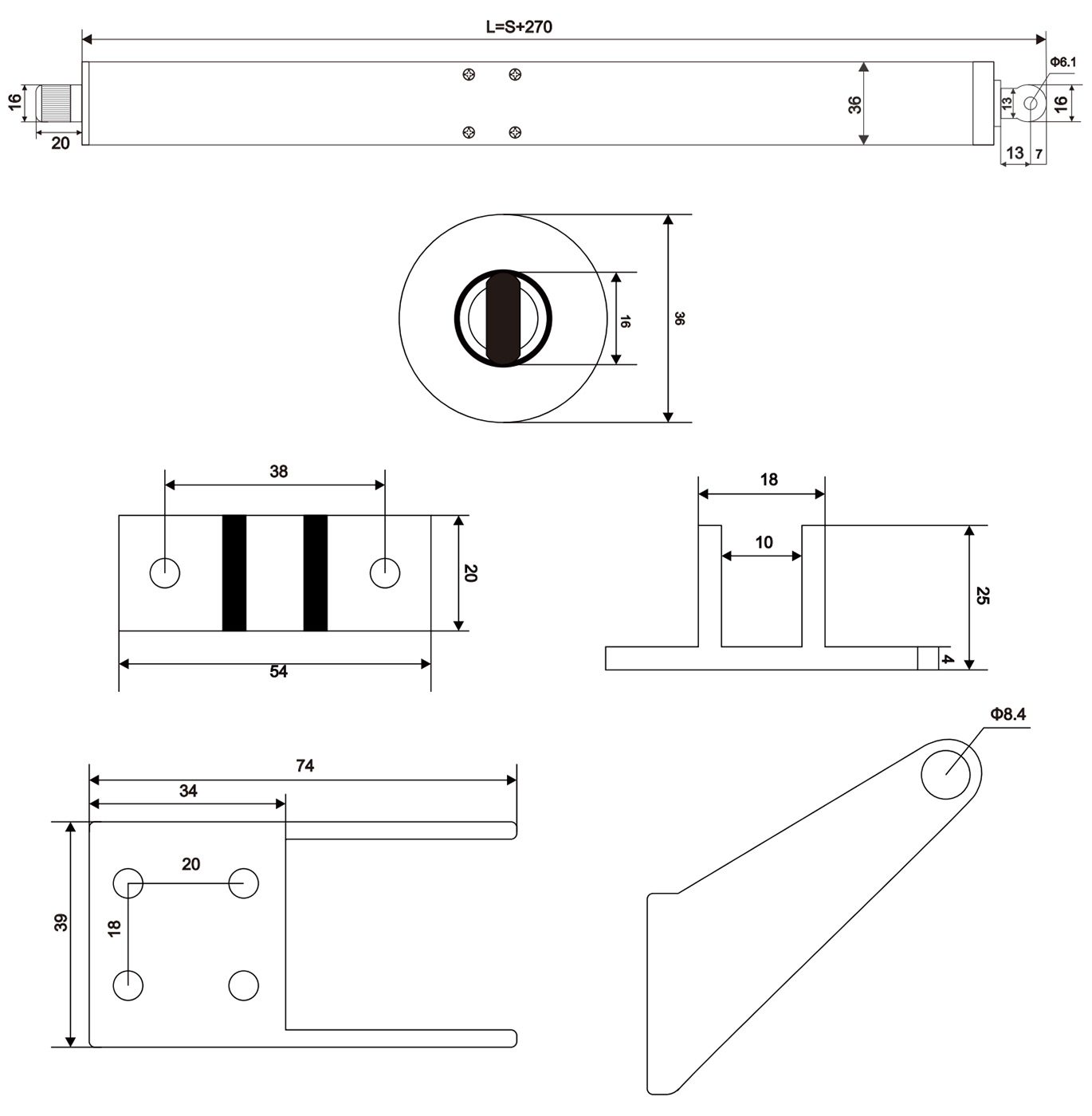

Outline Dimension Drawing
