In-line Vacuum Generator ZU

* Pipe type design, no special installation.
* Standard with quick change joint, easy to connect pipe.
* Use resin as the material, light weight.
* The standard model has no copper type.

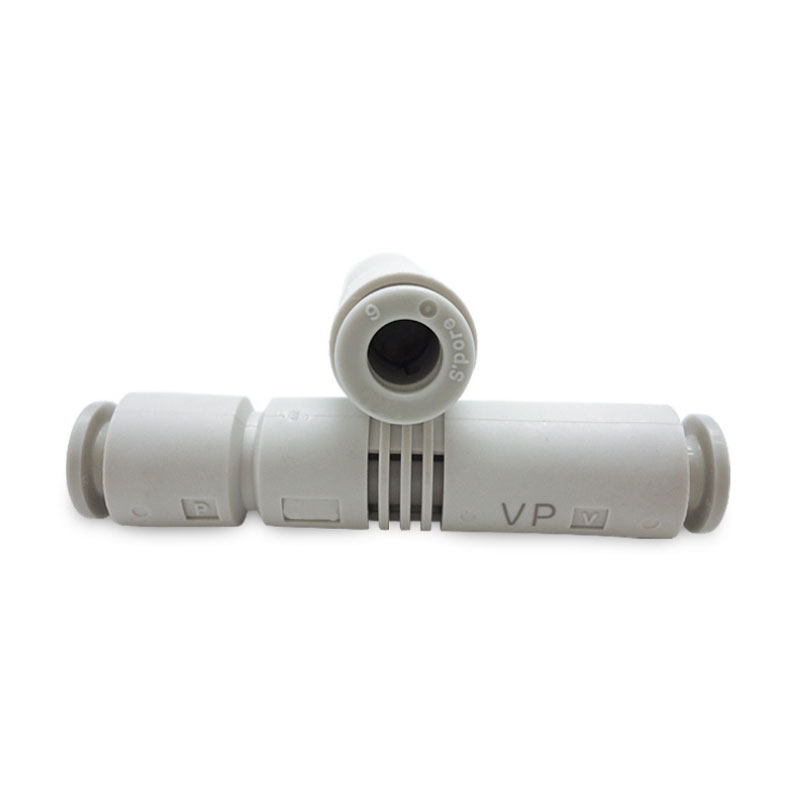

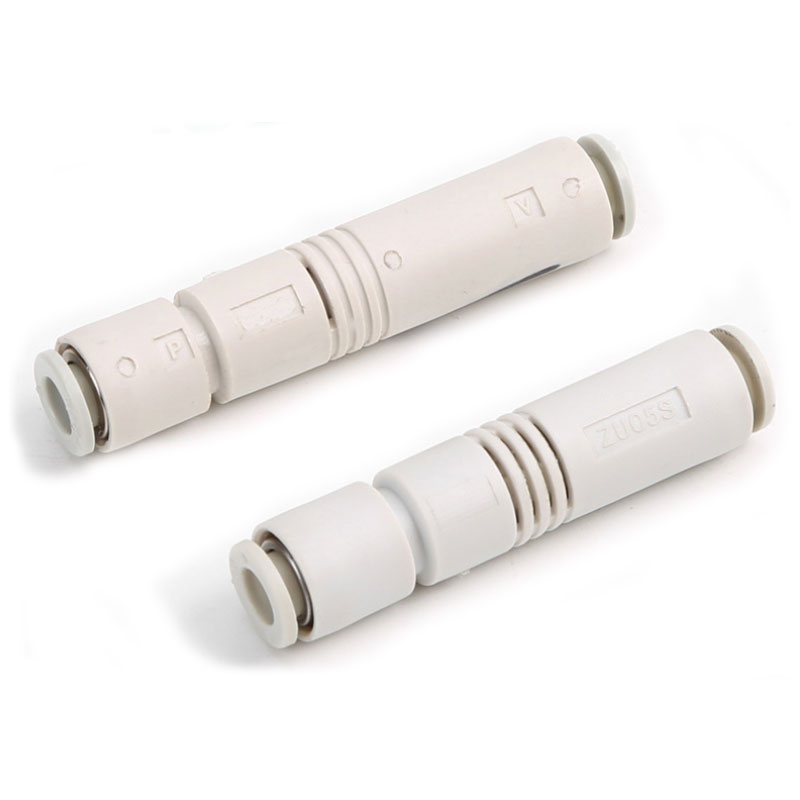

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: 0086+13356192265
What’sApp: 13356192265

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

In-line Vacuum Generator ZU Product Feature

* Pipe type design, no special installation.
* Standard with quick change joint, easy to connect pipe.
* Use resin as the material, light weight.
* The standard model has no copper type.

Technical Parameters for In-line Vacuum Generator ZU

Max. Operating Pressure: 0.7MPa
Standard Operating Pressure: 0.45MPa
Ambient and fluid temperature: 5~60℃
Suitable outer diameter of pipe: Φ6 (intake port and vacuum port)

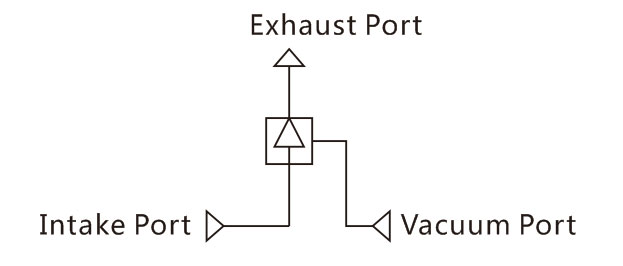

In-line Vacuum Generator ZU Symbol

In-line Vacuum Generator ZU Specification

Working Medium Air
Max. Operating Pressure 0.7MPa
Standard Operating Pressure 0.45MPa
Ambient and fluid temperature 5~60℃
Suitable outer diameter of pipe Φ6 (intake port and vacuum port)

Model Type Nozzle Φ mm Max. vacuum KPa Max. inhalation L/min(ANR) Air consumption L/min(ANR)
ZU05S High Hollow Type 0.5 85 7 9.5
ZU07S 0.7 85 12 19
ZU05L Large Flow Type 0.5 48 12 9.5
ZU07L 0.7 48 21 19

* The inlet air pressure is 0.45MPa

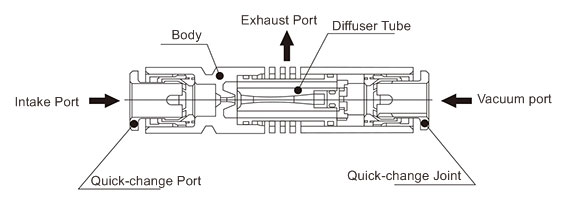

Structural Drawing

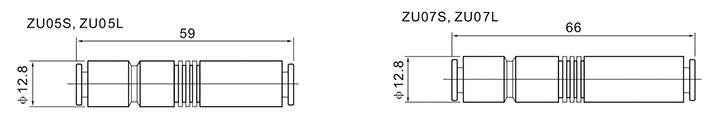

Overall Dimension (mm)

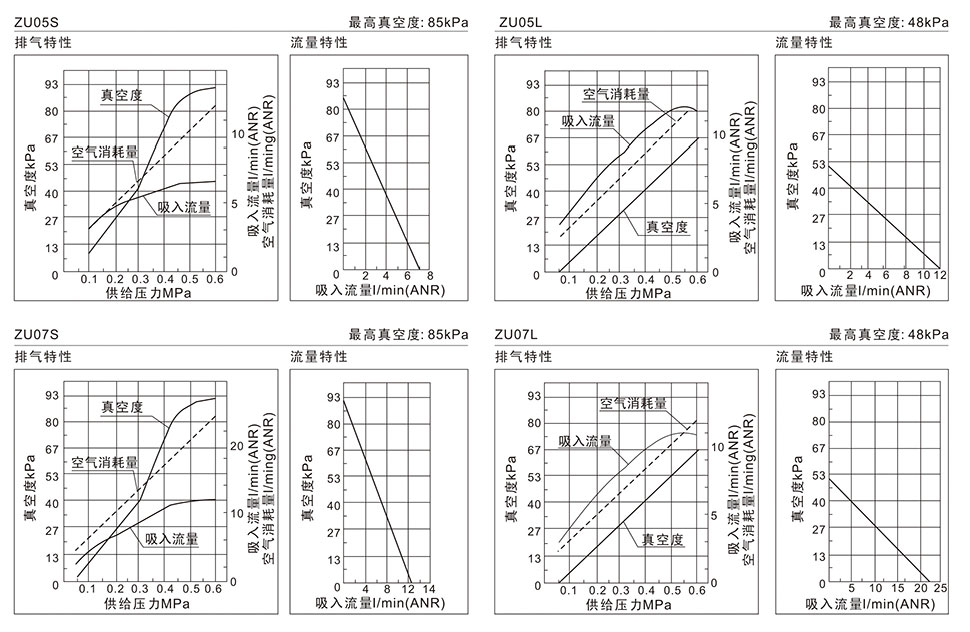

Exhaust characteristics / Flow characteristics chart

(In the case of the supply pressure of 0.4 MPa)
