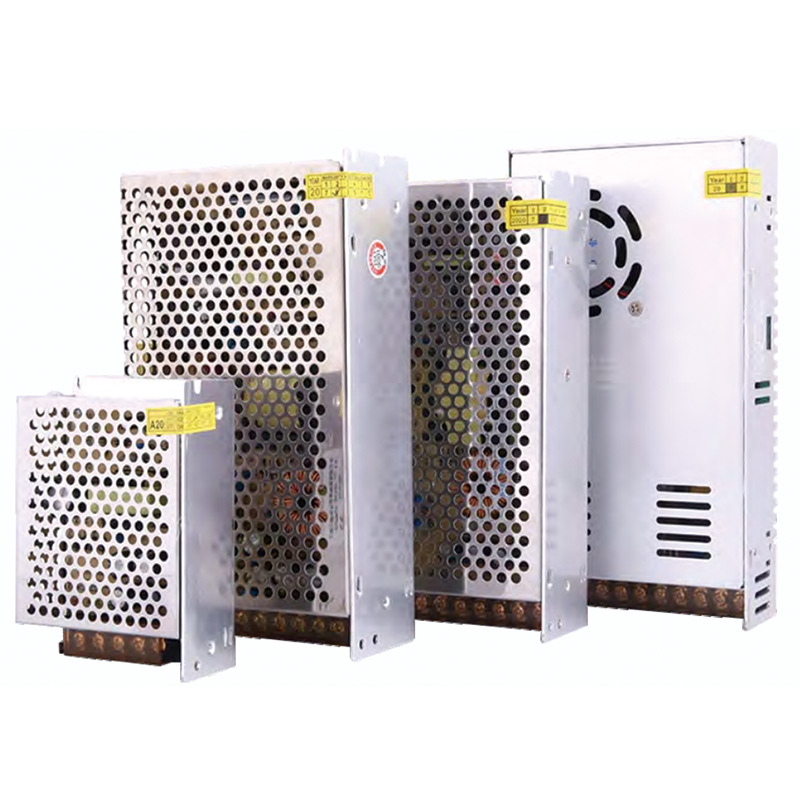

IPS-S Power Supply

IPS-S Power Supply

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters

ModelIPS-S SeriesInput Voltage110V/220VAC±20%,47-63Hz
Working Efficiency≥80%Leakage Current1mA/240VAC
Load Stability±2%Receiving Frequency47-63Hz
Operation Temperature-10℃~+60℃Operating Humidity20%~90RH
Operation TemperatureOverload Protection, Overvoltage Protection, Short Circuit Protection



PowerOutput
75WVoltageDC12VDC15VDC24VDC36VDC48V
Max Current6.2A5A3.1A2A1.5A
DimensionsL:159 W:97 H:38
150WVoltageDC12VDC15VDC24VDC36VDC48V
Max Current12.5A10A6.3A4.2A3.2A
DimensionsL:199 W:98 H:38
250WVoltageDC12VDC15VDC24VDC36VDC48V
Max Current20A16A10A7A5A
DimensionsL:199 W:110 H:50
400WVoltageDC12VDC15VDC24VDC36VDC48V
Max Current33A26A16A11A8.3A
DimensionsL:199 W:110 H:50
600WVoltageDC12VDC15VDC24VDC36VDC48V
Max Current50A40A25A16.7A12.5A
DimensionsL:238 W:124 H:65
1000WVoltageDC12VDC15VDC24VDC36VDC48V
Max Current80A64A40A27A20A
DimensionsL:291 W:132 H:68
1500WVoltageDC12VDC15VDC24VDC36VDC48V
Max Current125A100A60A40A30A
DimensionsL:291 W:132 H:68
3000WVoltageDC12VDC15VDC24VDC36VDC48V
Max Current240A200A120A80A60A
DimensionsL:312 W:190 H:95
RemarkSome products need to be customized, please contact us if necessary
