Pressure Regulating Valve QTYH

High Pressure Regulator Valve QTYH series products are used in the closed circuit of pneumatic system to keep the compressed air pressure near constant.

Port Size:G1/2,G1
Proof Pressure:4MPa
Operating Pressure: 0.1-0.3 MPa;
Working Environment Temperature: 5 to 60°C

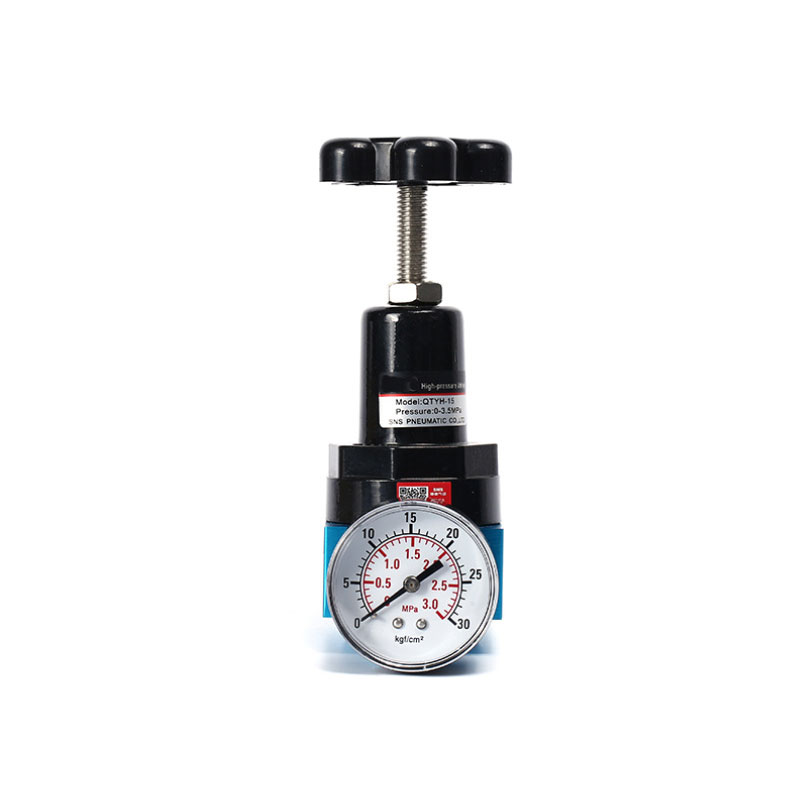

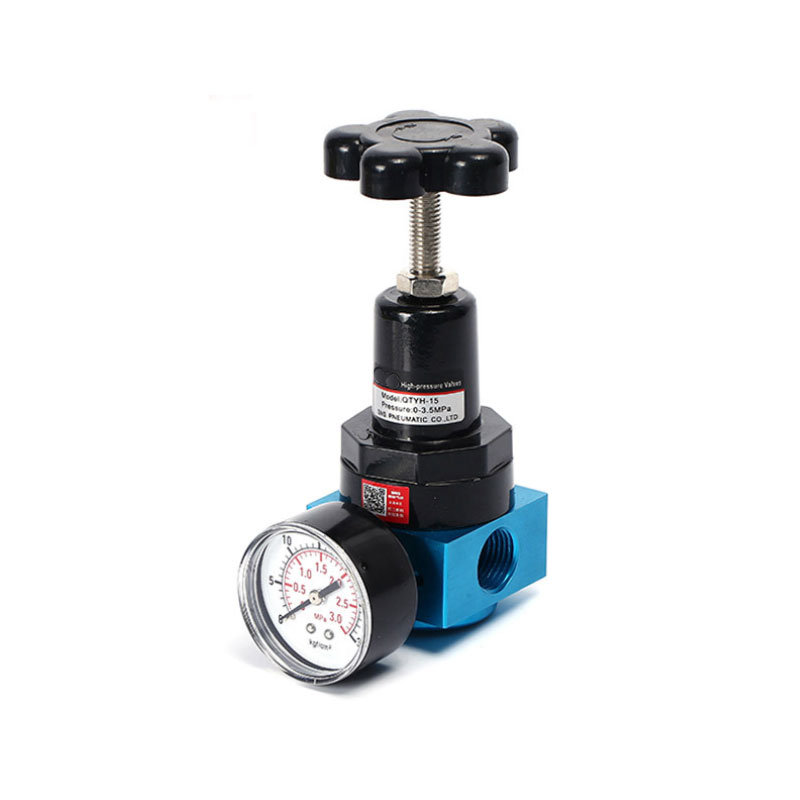

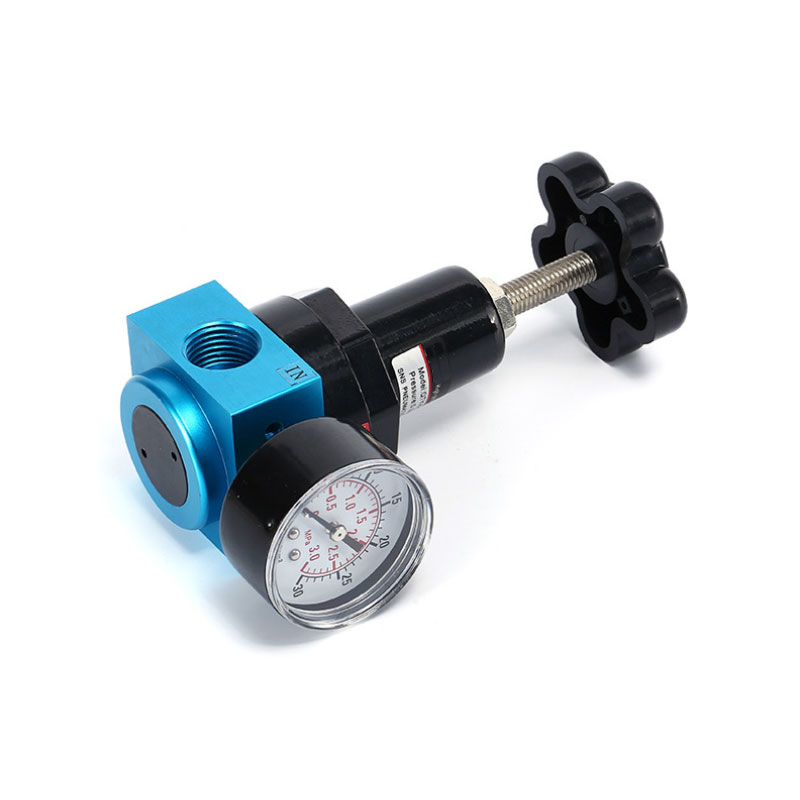

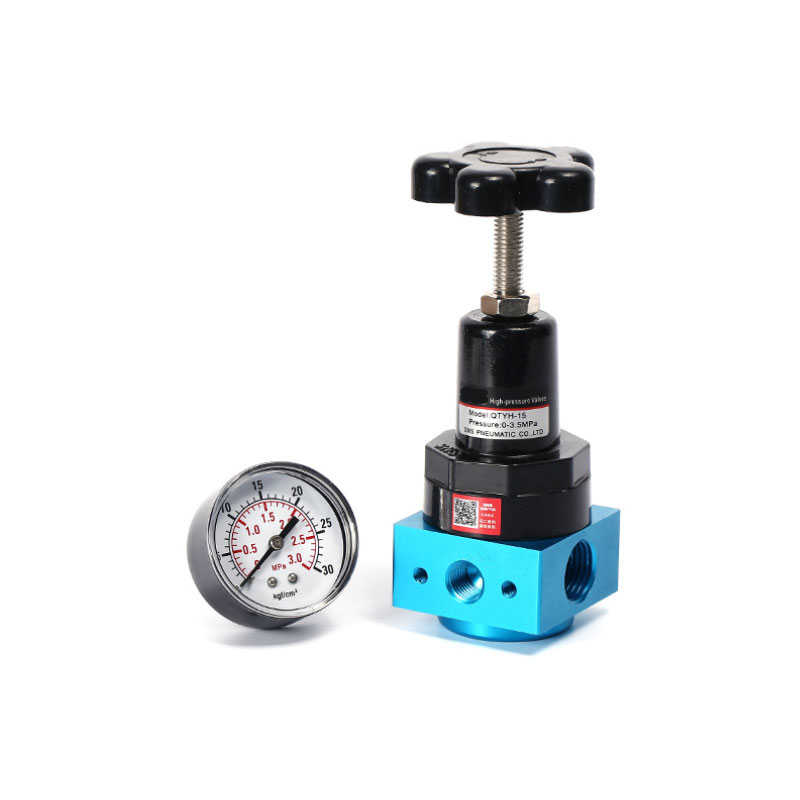

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for High Pressure Regulator QTYH

High Pressure Regulator Valve QTYH series products are used in the closed circuit of pneumatic system to keep the compressed air pressure near constant.

Technical Parameters for High Pressure Regulating Valve QTYH

Port Size:G1/2,G1
Proof Pressure:4MPa
Operating Pressure: 0.1-0.3 MPa;
Working Environment Temperature: 5 to 60°C

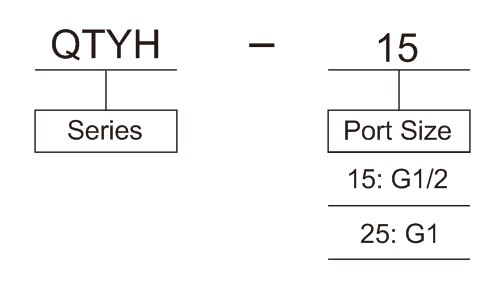

Ordering Code for High Pressure Regulator QTYH

Symbol for High Pressure Regulator QTYH Series

Technical Parameter for High Pressure Regulator QTYH Series

Model QTYH-15 QTYH-25
Port Size G1/2 G1
Working Medium Compressed Air
Proof Pressure 4MPa
Range of pressure regulation 0.1~0.3MPa
Operating temperature range 5~60℃
Main parts material Aluminium Alloy

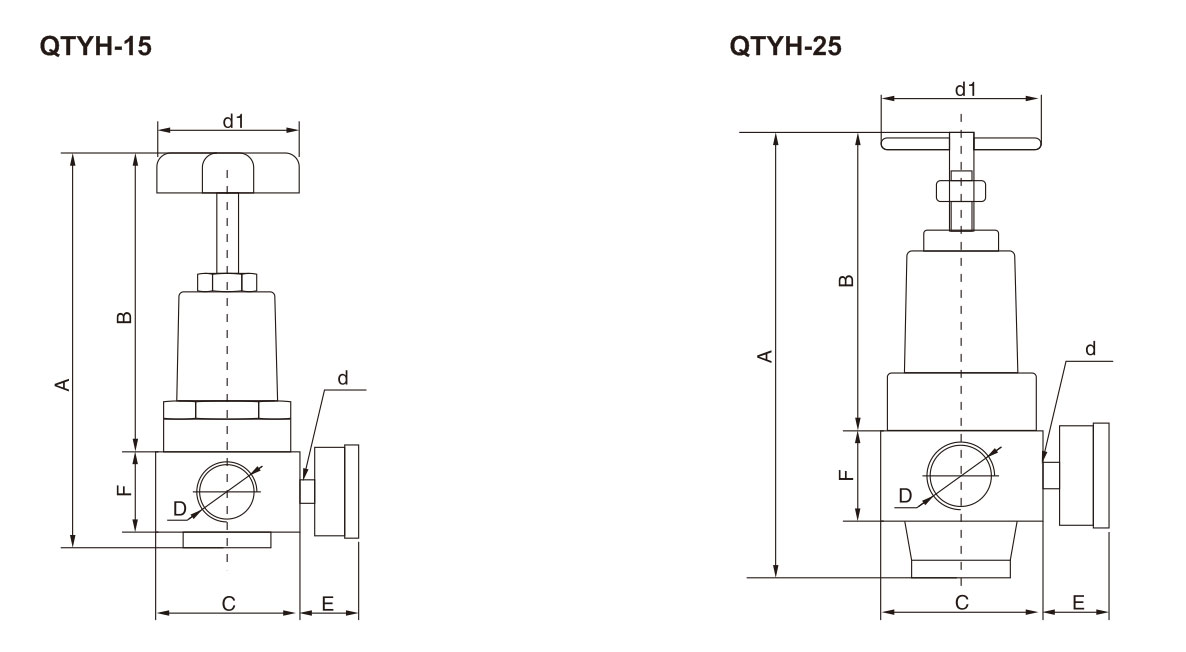

High Pressure Regulator QTYH Overall Dimension

Model A B C D E F d d1
QTYH-15 155 170 55×55 G1/2 35 28 G1/4 60
QTYH-25 240 105 80×80 G1 35 45 G1/4 97

Keywords:

Pressure Regulating Valve QTYH | High Pressure Regulator
