Hand Control Valve SH

Manual valve SH-402, manual valve SH-402A, manual valve SH-403, manual valve SH-403A, manual valve Model: SH-402, SH-402A, SH-403, SH-403A

Port Size: 1/4", 3/8"
Operating Pressure: 0~8.0kgf/cm²
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy

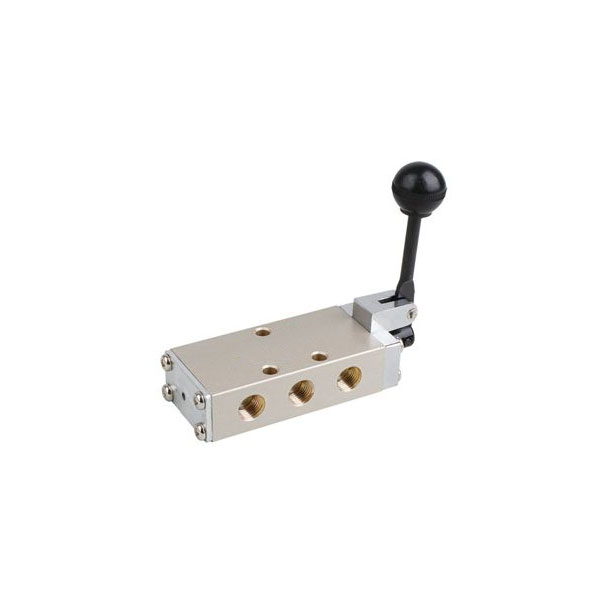

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Hand Control Valve SH

Manual valve SH-402, manual valve SH-402A, manual valve SH-403, manual valve SH-403A, manual valve Model: SH-402, SH-402A, SH-403, SH-403A
Working medium: Air
Motion Pattern: Direct-acting
Lubrication: No need
Operating angle: ±15°
Main accessories material: aluminum alloy

Technical Parameters for Hand Control Valve SH

Port Size: 1/4", 3/8"
Operating Pressure: 0~8.0kgf/cm²
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy

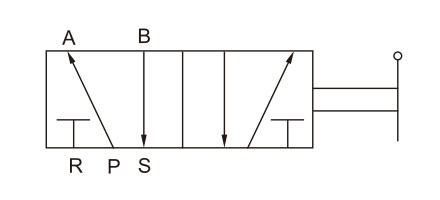

Symbol for Hand Control Valve SH

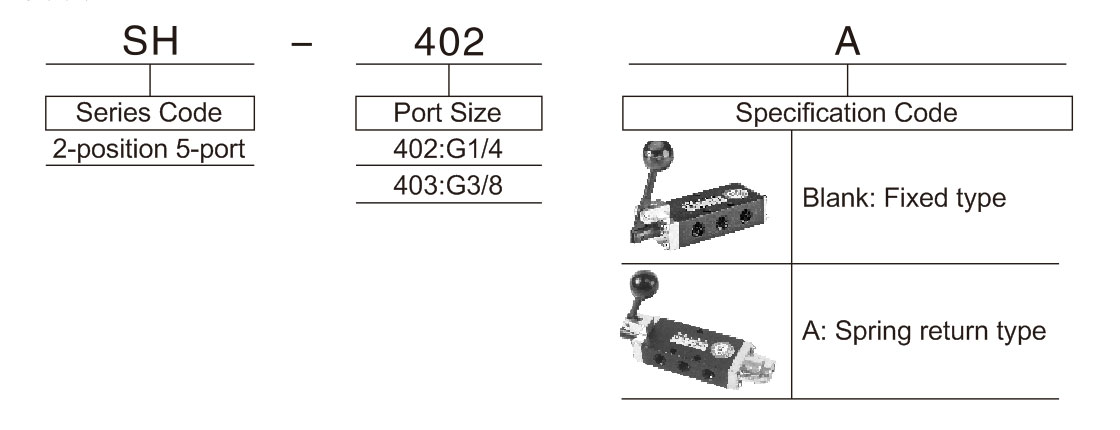

Ordering Code for Hand Control Valve SH

Technical Parameter for Hand Control Valve SH

Model
SH-402
SH-402A
SH-403
SH-403A
Working Medium
Compressed Air
Motion Pattern
Hand-operated direct-acting
Port Size
G1/4
G3/8
Max. Operating Pressure
0.8MPa
Max. Proof Pressure
1.0MPa
Operating Temp.
-20~70℃
Lubrication
Non-lube
Working angle
±15°
Main parts material
Body
Aluminium Alloy
Sealing element
NBR

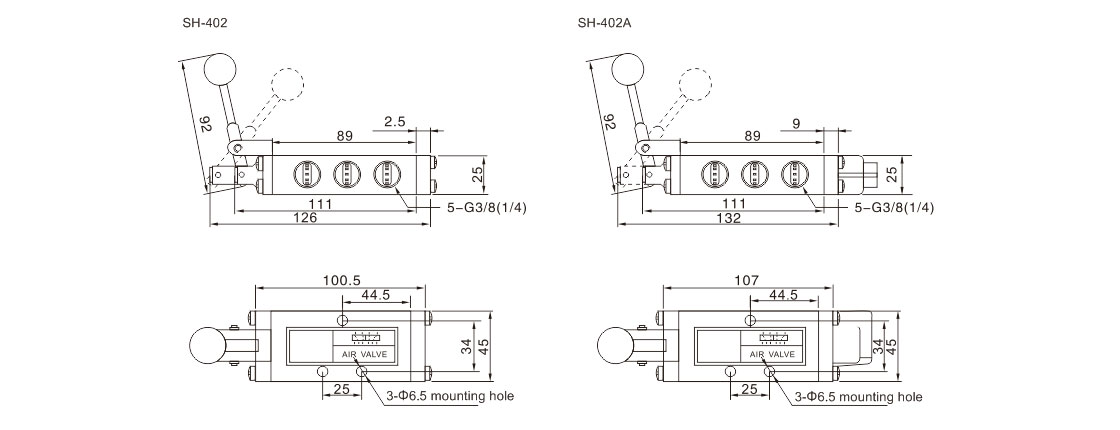

Overall Dimension

Keywords:

Hand Control Valve | Hand Operated Valve SH
