Digital Pressure Controller YZ-S8/B8/S9/B9

YZ Digital Pressure Controller is a high-precision intelligent pressure gauge integrating pressure measurement, display and control.

Pressure:-0.1~0...0.6...0.1...1...2...3...4...5...10...20...30...40...50...60...100...160MPa
Accuracy: 0.5%FS
Power Supply: 2VDC 24VDC 220VAC 380VAC
Material: Watchcase: engineering plastics; Joint: 304 stainless steel

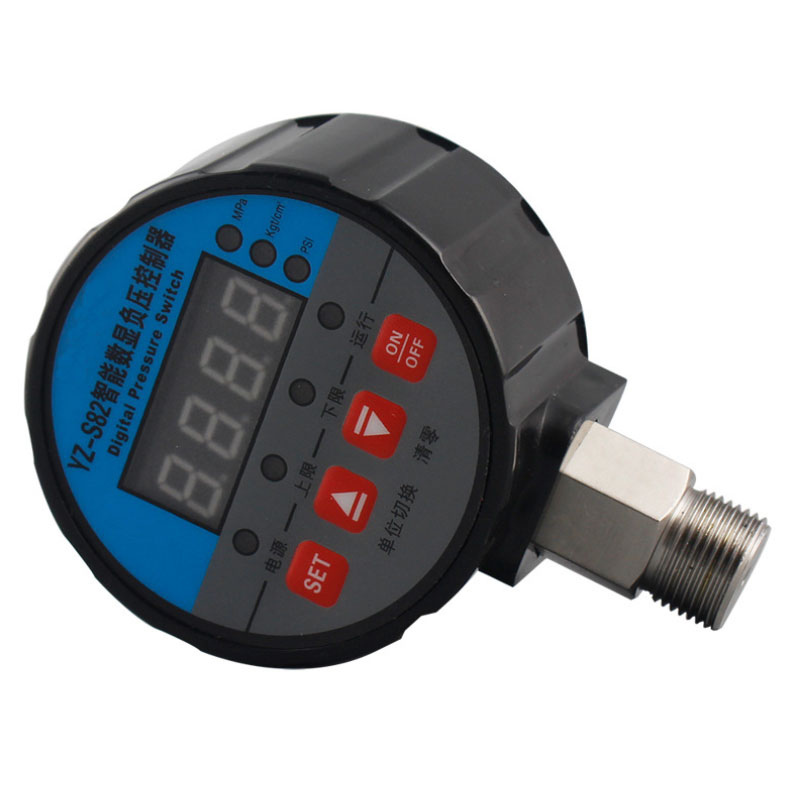

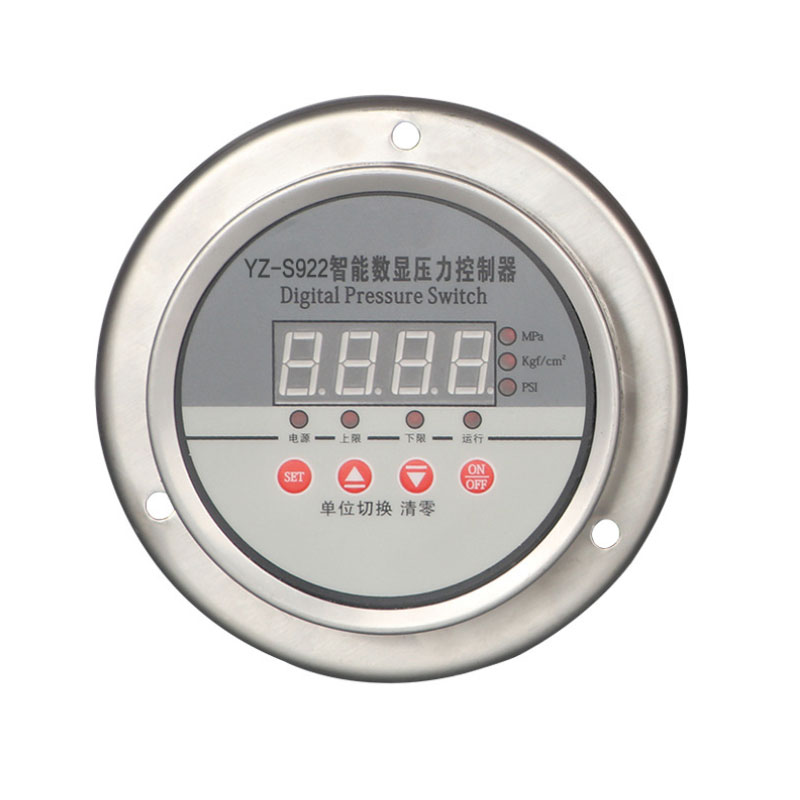

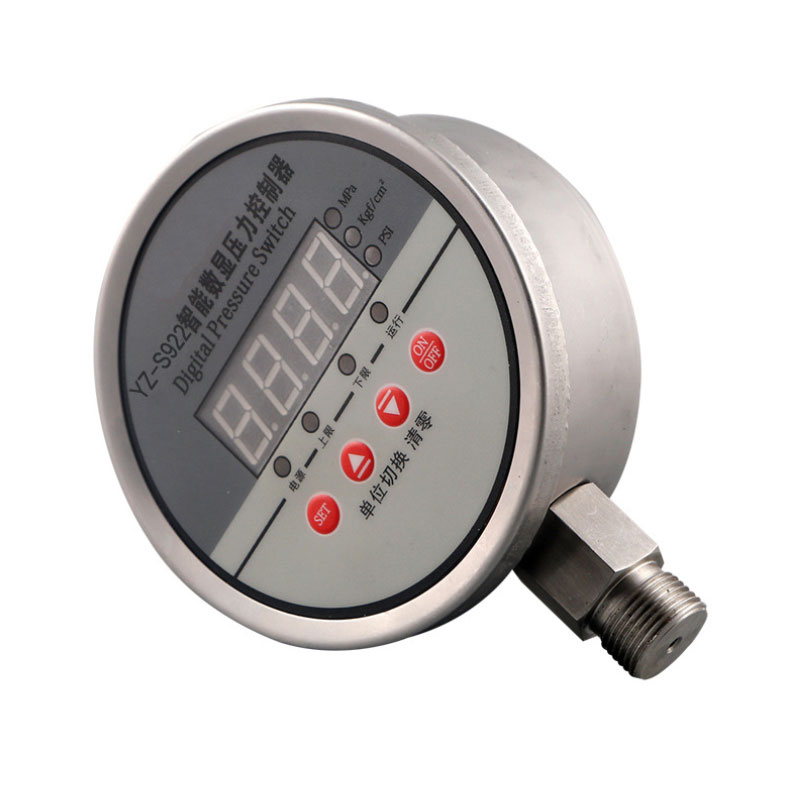

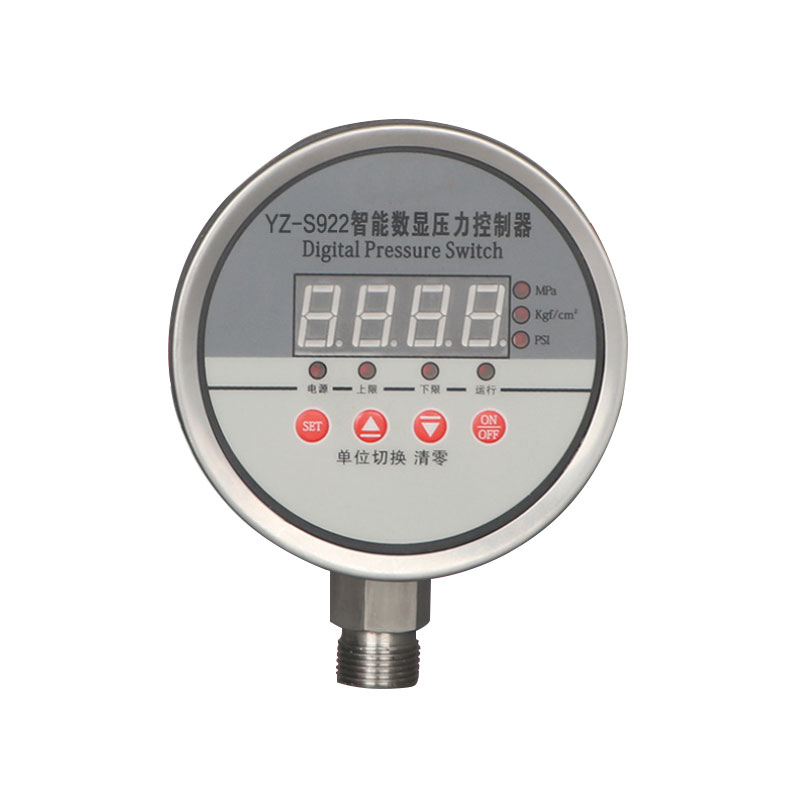

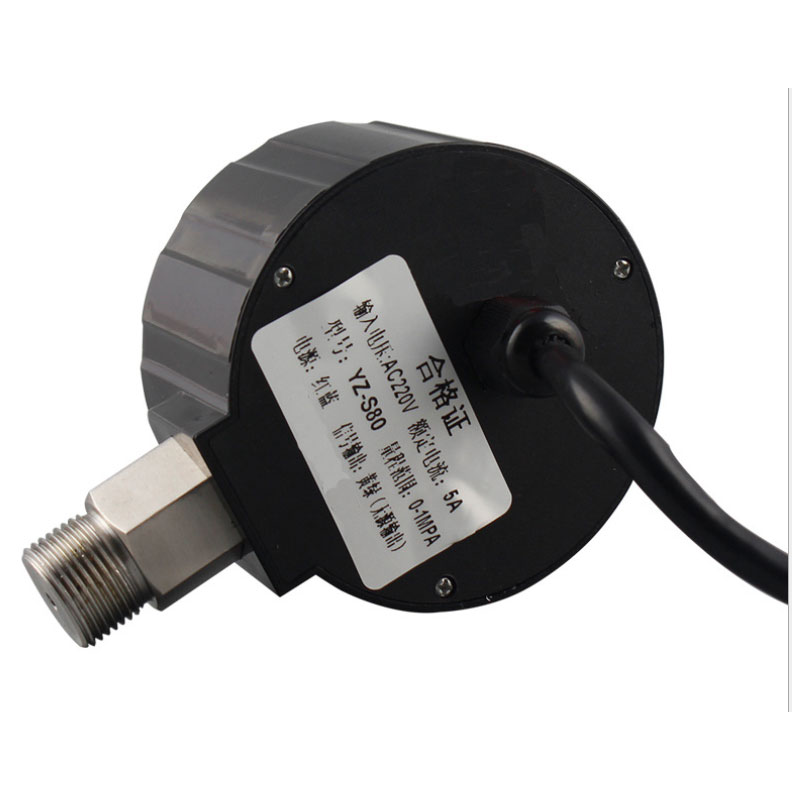

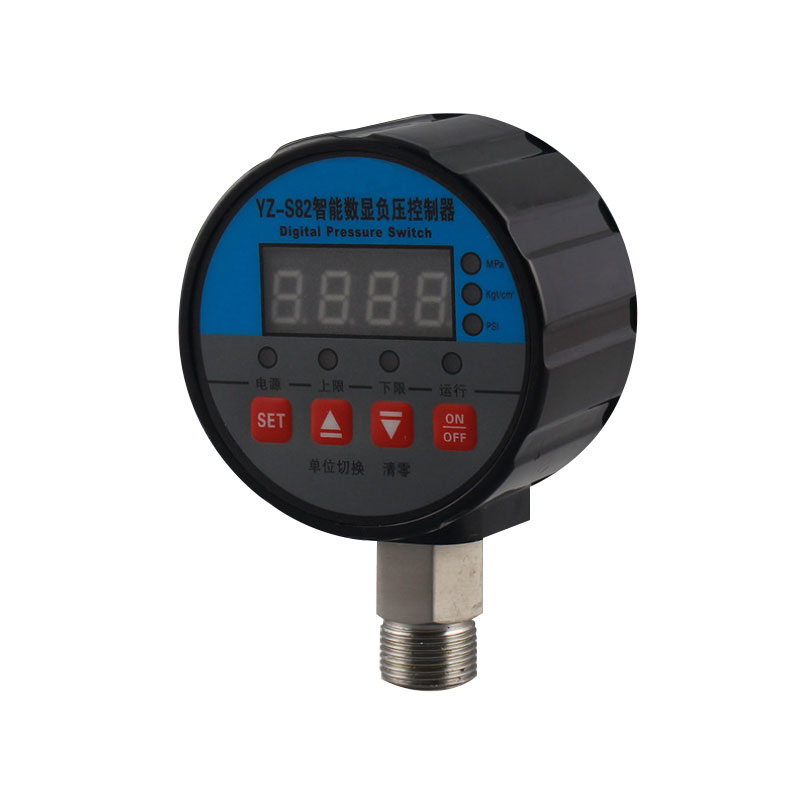

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: 0086+13356192265
What’sApp: 13356192265

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Digital Pressure Controller YZ

YZ Digital Pressure Controller is a high-precision intelligent pressure gauge integrating pressure measurement, display and control. It has the characteristics of simple operation, good shock resistance, high control precision and long service life.
This Digital Pressure Controller can realize the control function of low pressure stop, high pressure start or high pressure stop and low pressure start, and the control pressure can be set in the whole range. It has: reverse control, error clearing, unit switching, leakage protection, password protection, automatic pressure detection and other functions.
Can be widely used in building water supply, air compressor pressure control, automated machinery supporting and other fields of measurement and control.

Technical Parameters for Digital Pressure Controller YZ

Pressure:-0.1~0...0.6...0.1...1...2...3...4...5...10...20...30...40...50...60...100...160MPa
Accuracy: 0.5%FS
Power Supply: 2VDC 24VDC 220VAC 380VAC
Material: Watchcase: engineering plastics; Joint: 304 stainless steel

Digital Pressure Controller YZ-S8 B8 S9 B9 Series is a new intelligent digital display pressure controller with "counter function" of "high frequency, low frequency and optional rate".

Technical Parameter for Digital Pressure Controller YZ

Model YZ-S8 Series Digital Pressure Controller YZ-S9 Series Digital pressure controller
YZ-S80 YZ-S81 YZ-S82 YZ-S90 YZ-S91 YZ-S92
Dial Diameter 80mm Radial: 60mm, 80mm, 100mm
Axial: 60mm/75mm, 80mm/95mm, 100mm/130mm
Pressure -0.1~0...0.6...0.1...1...2...3...4...5...10...20...30...40...50...60...100...160MPa
Accuracy 0.5%FS
Power supply 12VDC 24VDC 220VAC 380VAC
Output Relay control signal Relay switch signal
Funtion Low voltage start / high voltage stop or high voltage start / low voltage stop;
Function: A variety of pressure units switching, zero clearing, delay control, reverse control, password protection, sampling rate optional, on-off counting of counters
Material Watchcase: engineering plastics; Joint: 304 stainless steel Watchcase / Joint: 304 stainless steel
Application Automation equipment, medical equipment, engineering machinery, pipeline engineering, pumps, hydraulic machinery, all kinds of air compressor equipment
Model YZ-B8 Series Digital display pressure controller YZ-B9 Series Digital display pressure controller
YZ-B83 YZ-B84 YZ-B85 YZ-B93 YZ-B94 YZ-B95
Dial Diameter 80mm Radial: 60mm, 80mm, 100mm
Axial: 60mm/75mm, 80mm/95mm, 100mm/130mm
Pressure -0.1~0...0.6...0.1...1...2...3...4...5...10...20...30...40...50...60...100...160MPa
Accuracy 0.5%FS, 0.3%FS
Funtion Pressure real-time display, pressure unit switching, error clearing, etc. Replace the electric contact pressure meter
(upper alarm / lower alarm / public line)
Auxiliary function: unit switching / zero clearing
Material Watchcase: engineering plastics; Joint: 304 stainless steel Watchcase / Joint: 304 stainless steel
Application Automation equipment / medical equipment / engineering machinery / pipeline engineering / pump / hydraulic machinery / all kinds of air compressor equipment Hydraulic press / injection molding machine / high pressure pump / high pressure air compressor and other automatic mechanical configuration / all kinds of air compressor equipment

Digital Pressure Controller YZ-S8 B8 S9 B9 Series
