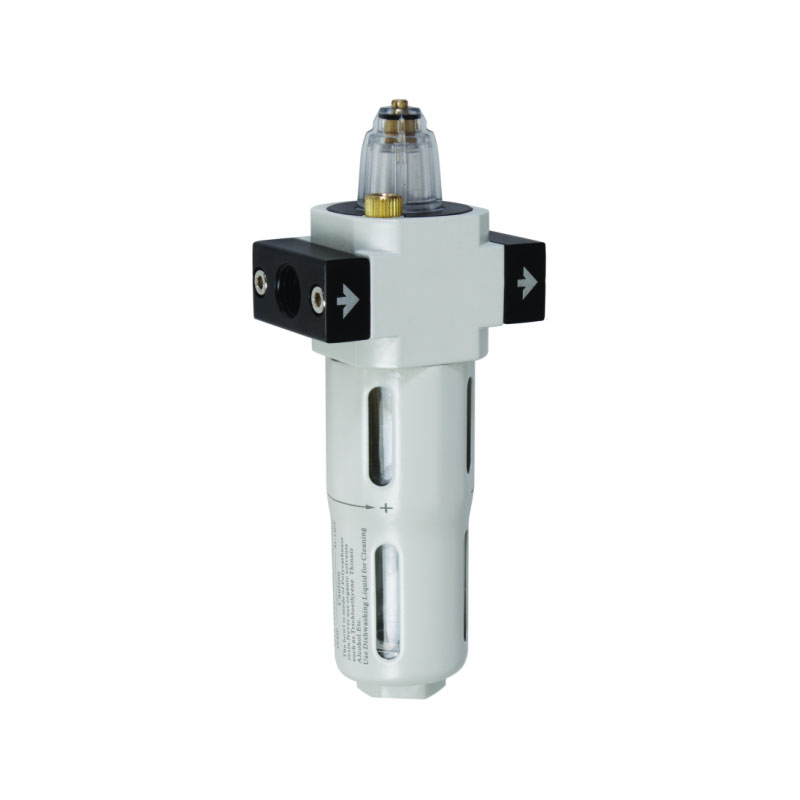

Pneumatic Air Lubricator L

L Series Compressed Air Lubricator is a special oiling device. Its function is to atomize the lubricating oil and inject it into the air, with the air flow into the parts needing lubrication, to achieve the purpose of lubrication.

Working Medium: Compressed Air
Proof Pressure: 1.6MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Max. Operating Pressure: 1.2MPa

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: 0086+13356192265
What’sApp: 13356192265

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

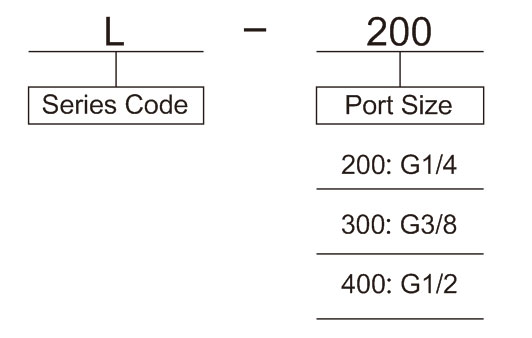

Ordering Code for L Series Compressed Air Lubricator

In pneumatic components, cylinders, pneumatic motors or valves often have internal sliding parts, in order to make its movement flexible, durable, generally need to add lubricating oil. L Series Compressed Air Lubricator is a special oiling device. Its function is to atomize the lubricating oil and inject it into the air, with the air flow into the parts needing lubrication, to achieve the purpose of lubrication.
Working principle: when the compressed air passes through the Pneumatic Air Lubricator from Pneumatic Air Lubricator AL China Manufacturer Suppliers, it produces a pressure drop between the oil chamber and the oil monitor, which causes the oil to rise through the oil suction pipe and is injected into the compressed air through the nozzle, the oil droplets are atomized and flow out with the compressed air.
The main performance indexes of the L Series Compressed Air Lubricator are flow characteristics, fogging air flow and oil mist particle.

Symbol for L Series Compressed Air Lubricator

Technical Parameter for L Series Compressed Air Lubricator

Model L-200 L-300 L-400
Port Size G1/4 G3/8 G1/2
Working Medium Compressed Air
Max. Operating Pressure 1.2MPa
Max. Proof Pressure 1.6MPa
Flow Aperture 40μm (routine) or 5μm (customized)
Rated Flow 1000L/min 2000L/min 2600L/min
Min fogging capacity 3L/min 6L/min 6L/min
Capacity of water bowl 22ml 43ml 43ml
Lubrication ISO VG32 or the same grade oil
Ambient Temperature 5~60℃
Installation method Tube mounting or bracket mounting
Main Material Body: Aluminium Alloy; Bowl: PC; Guard: Aluminium Alloy

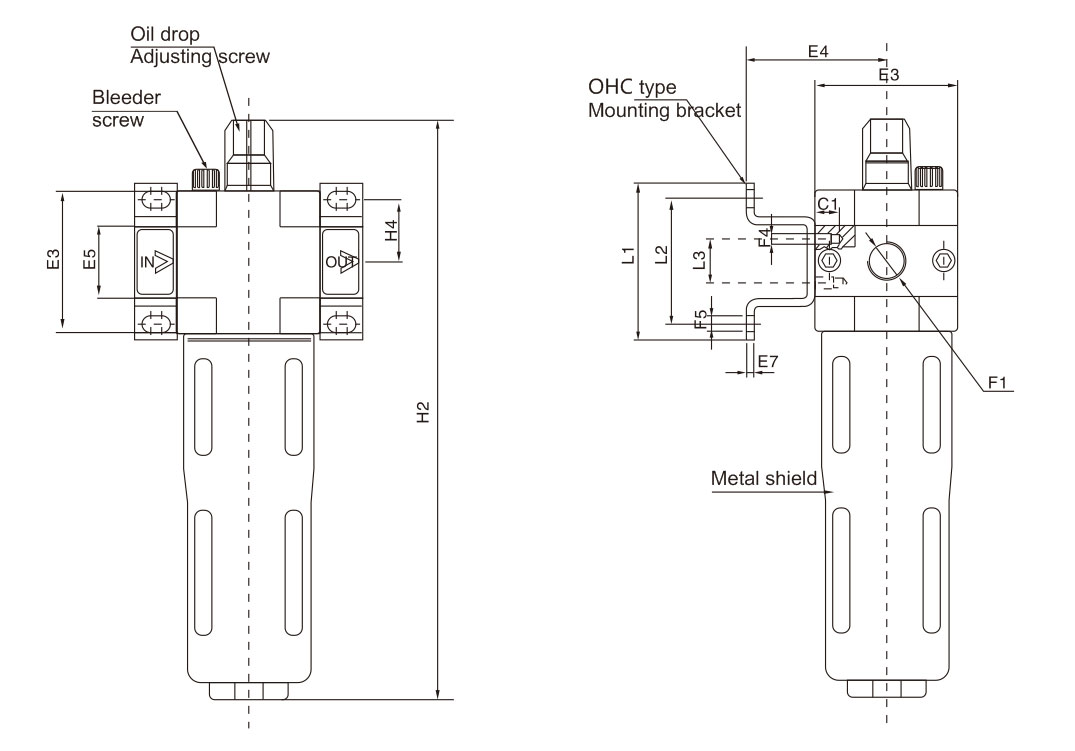

Overall Dimension

Model E3 E4 E5 E7 F1 F4 F5Φ L1 L2 L3 H4 H5
L-200 40 39 40 2 G1/4 M4 4.5 44 35 11 17.5 20
L-300 55 47 55 3 G3/8 M5 5.5 71 60 22 24.5 32
L-400 55 47 55 3 G1/2 M5 5.5 71 60 22 24.5 32
