AR AW Series Bracket

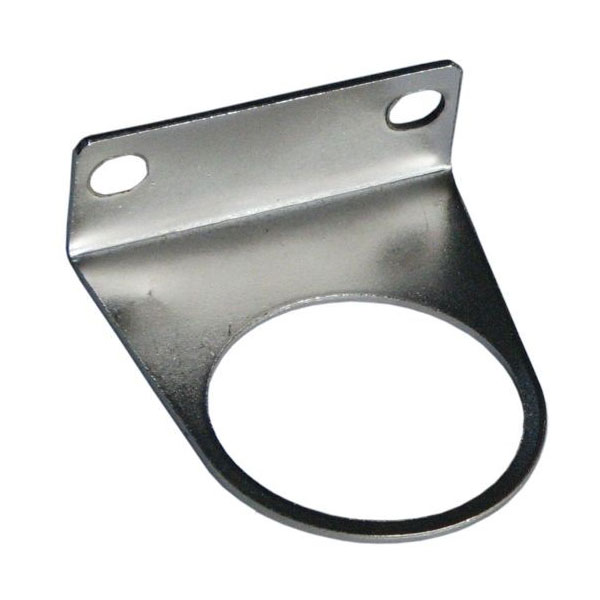

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: 0086+13356192265
What’sApp: 13356192265

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

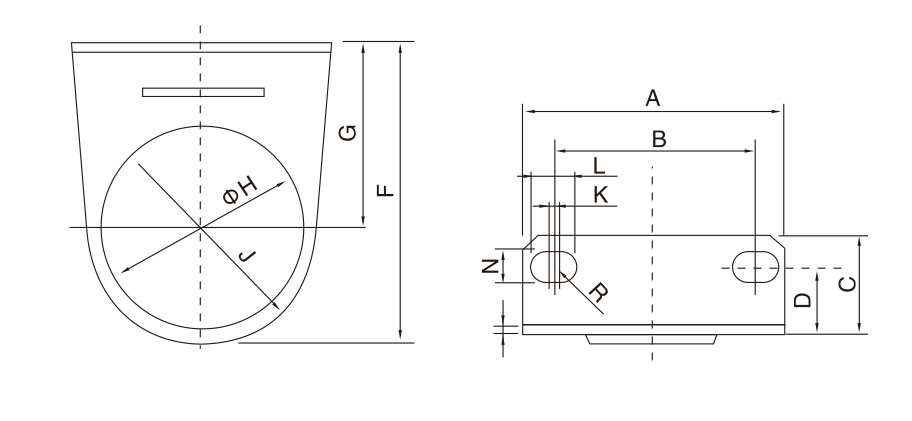

Overall Dimension for AR AW Series Bracket

Model A B C D F G H J K L N R T Applicable Model Material
B120 40 28 17 11 37.8 25 20.5 12.3 2 6.5 4.5 2.25 2 AR1000, AW1000 Iron
B220 55 34 25 16 50 30 33.5 20 10 15.4 5.4 2.7 2.3 AR2000/2500, AW2000
B320 53 40 21 13.5 66 41 42.5 25 1.5 8 6.6 3.25 2.3 AR3000, AW3000
B420 70 54 27 18 80 50 52.5 30 2 10.5 8.5 4.25 2.3 AR4000/4000-06, AW4000/4000-06
