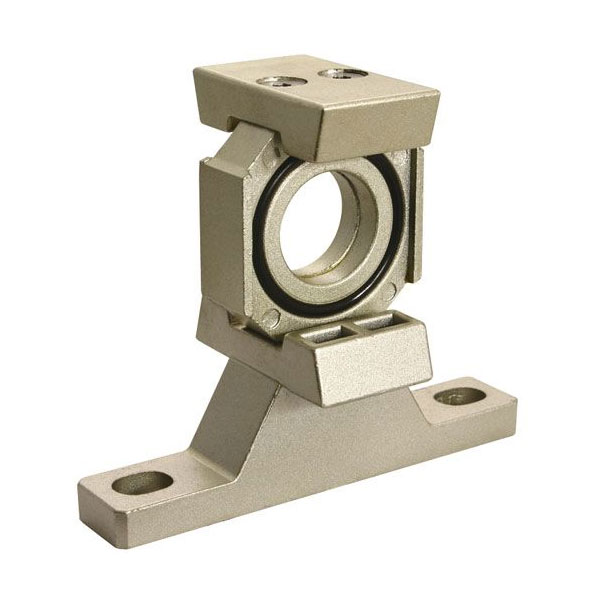

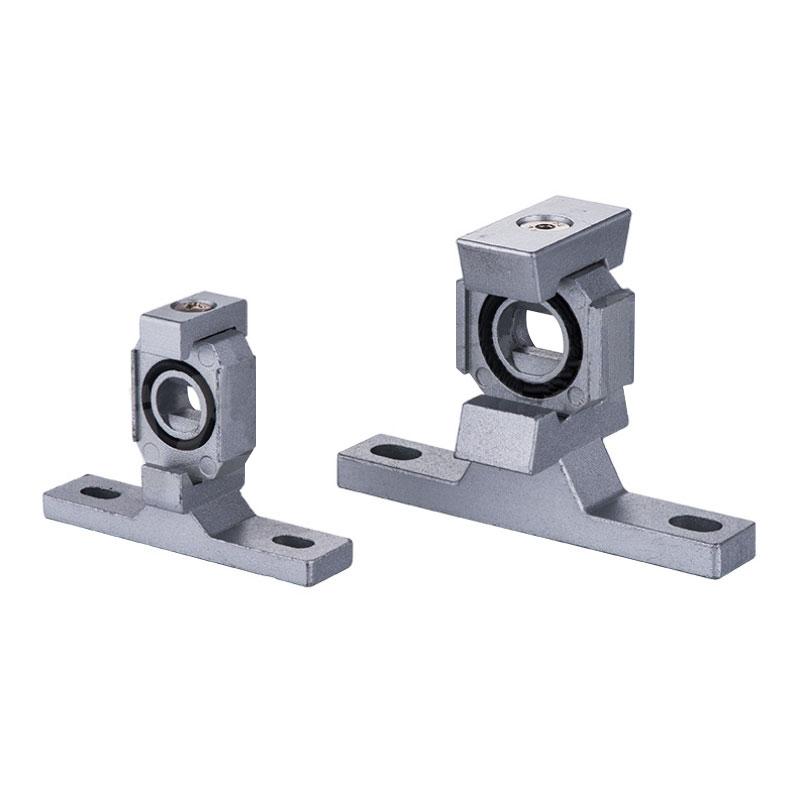

AC Series T-type Bracket

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: 0086+13356192265
What’sApp: 13356192265

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

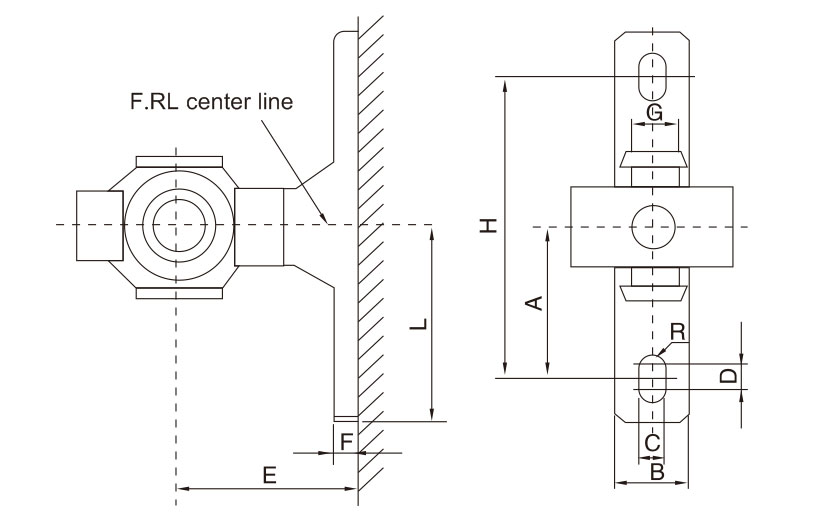

Overall Dimension for AC Series T-type Bracket

Model A B C D E F G H R L Applicable Model Material
Y10L 20 12 4.5 3 25 5 8 40 2.25 27 AC1010 Zinc alloy (intermediate block, connecting piece)
Aluminum alloy (bracket)
Y20L 24 15 5.5 3 30 5 10 48 2.75 33 AC2010
Y30L 35 16 7 4 41 7 11 70 3.5 45 AC3010
Y40L 40 22 9 4 50 7 14 80 4.5 50 AC4010
Y50L 40 22 9 4 50 7 14 80 4.5 50 AC4010-06
Y60L 50 24 12 4 70 10 15 100 6 62.5 AC5010
