Precision Slide Table

Precision Slide Table is a pneumatic element combining a variety of rail and cylinder. The workpiece can be mounted on the sliding table and push the sliding table through the Air Cylinder. The piston of the Precision Slide Table is fixed on the piston rod. The two ends of the piston rod with plates can be firmly fixed on the machine. The slide table moves reciprocally on the piston rod. Precision Slide Table is suitable for precise assembly, location and delivery of workpieces, a linear driving mechanism widely used in the field of automation industry.

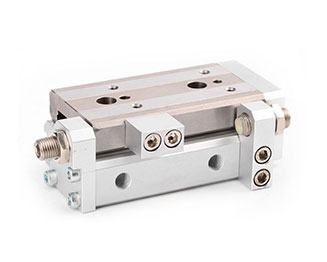

Precision Slide Table Pneumatic Cylinder MXH

MXH Compact Slide Table is equipped with a linear guide bearing to improve the piston rod's non-rotation accuracy; standard built-in magnetic ring, MXH Slide Table can install stroke induction magnetic switch.

Bore sizes: 6, 10, 16, 20 mm
Special (non-standard) porting option
Rubber bumpers
RoHS compliant
Auto switch capable
Learn more

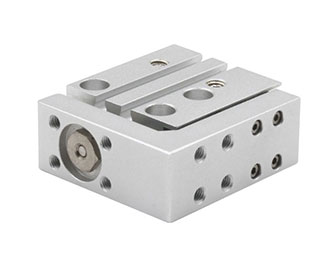

Precision Slide Table Pneumatic Cylinder MXQ

MXQ Slide Tables, double cylinder design, 2 times output force, thin volume. Cylinder and workbench are combined to reduce the overall size; Cross roller guide rail design is adopted, Precision Slide Table friction is small.

Bore sizes: 6, 8, 12, 16, 20, 25 mm
Height interchangeable with legacy style MXQ
Repeatable positioning accuracy: +/-0.05 mm
Stroke adjuster options: rubber, metal stopper or shock absorber
End lock option in the event of air pressure loss
Learn more

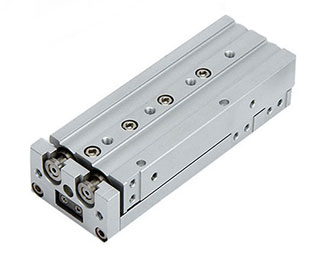

Precision Slide Table Pneumatic Cylinder MXS

MXS Precision Slide Table, double cylinder design, 2 times output force, thin volume. Cylinder and workbench are combined to reduce the overall size; Cross roller guide rail design is adopted, friction is small.

Bore: 6, 8, 12, 16, 20, 25 mm
Motion Pattern: Double-acting
Operating pressure: 0.15~0.7MPa
Piston speed: 50~500mm/s
Ambient and fluid temperature: -10~+60°C
Learn more

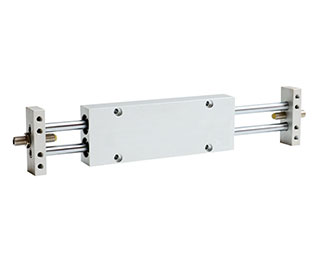

Precision Slide Table Pneumatic Cylinder STM

STM Slide Table Cylinder is miniature cylinder with guide rods which have a wide range of installation freedom and product types. STM Slide Table Cylinder is available in two types sliding bearings and rolling bearings suitable for different uses.

Bore: 10, 16, 20, 25mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~500mm/s
Ambient and fluid temperature: -20~+70°C
Learn more

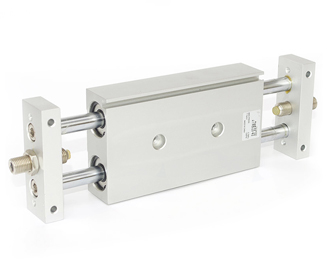

Precision Slide Table Pneumatic Cylinder CX2

CX2 Pneumatic Slide can be arbitrarily set the buffer equipment absorbing the impact noise, Guide Cylinders are most suitable for conveying work with position accuracy requirements. Wiith magnetic switch, high non-rotation accuracy, smooth operation, large thrust.

Bore: 10, 15, 25mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~200mm/s(Adjusting bolt); 30~500mm/s(Oil Buffer)
Ambient and fluid temperature: +5~+60°C
Learn more
